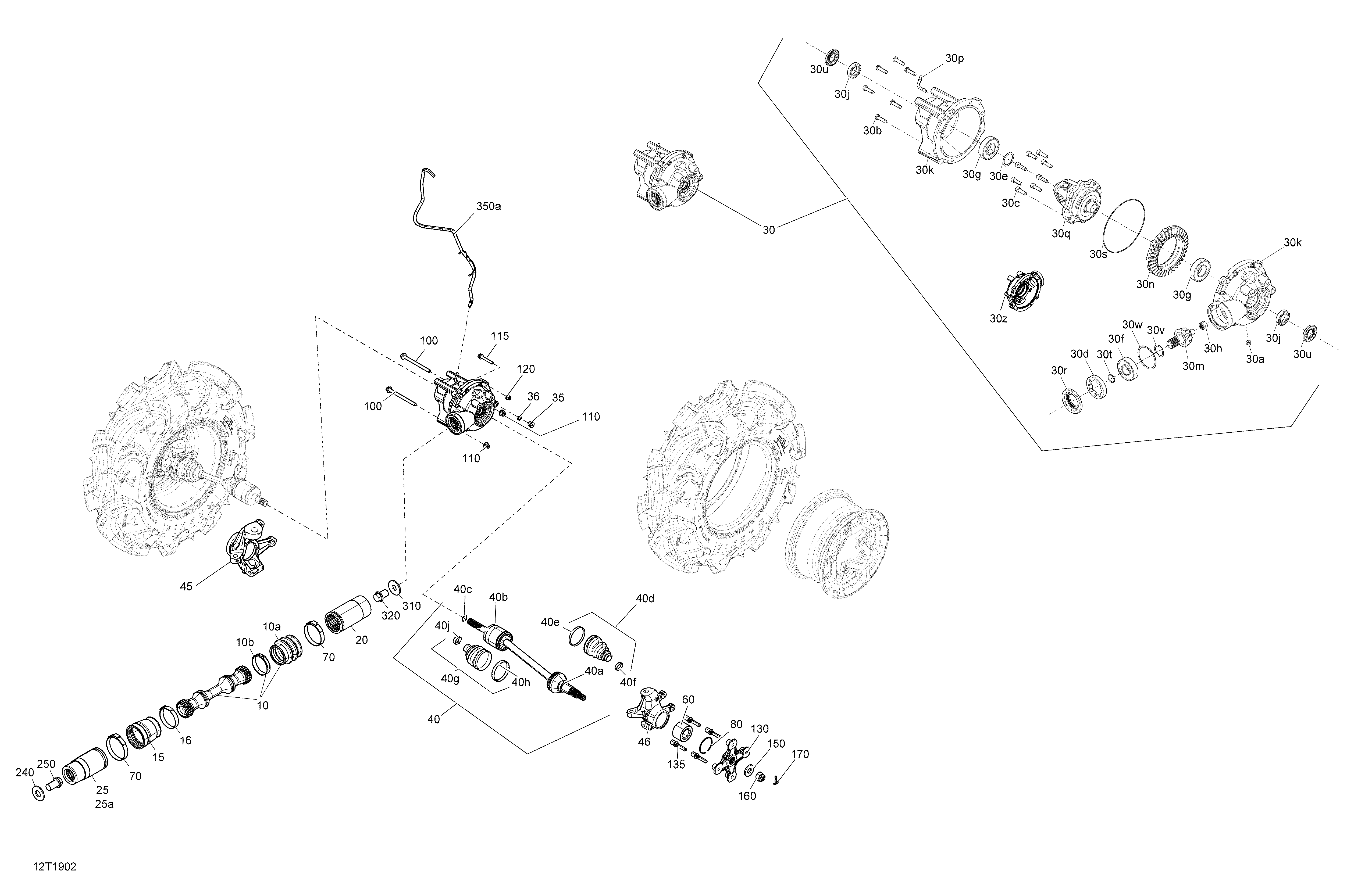

07- Front Drive - 570 EFI для BRP 006 - Outlander MAX 570 EFI - International - European Communities - 2019
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'y. Includes 10 to 10bFront Drive Axle Ass'y. Includes 10 to 10b
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker Gear ClampOetiker Gear Clamp
-
20705401969 Coupling-SleeveCoupling-Sleeve
-
25703500678 Front Bushing Shaft Kit. Includes 25 to 25aFront Bushing Shaft Kit. Includes 25 to 25a
-
25a705400036 Wear RingWear Ring
-
30705402020 Front Differential. Includes 30 to 30zFront Differential. Includes 30 to 30z
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401792 Front Cover, PinionFront Cover, Pinion
-
30m705401610 Front CoverFront Cover
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30q705401613 Vent ValveVent Valve
-
30r705402182 DifferentialDifferential
-
30s705401615 Oil SealOil Seal
-
30t705401616 SealSeal
-
30u705401617 O'RingO'Ring
-
30v705401618 GasketGasket
-
30w705401769 ShimShim
-
30x705401770 ShimShim
-
30y703501006 Side Gear KitSide Gear Kit
-
30z705401792 Front Cover, PinionFront Cover, Pinion
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401428 RH Front half shaftRH Front half shaft
-
40705401428 RH Front half shaft. Includes 40 to 40jRH Front half shaft. Includes 40 to 40j
-
40a715900297 CV JointCV Joint
-
40b715900300 RH Plunging CV JointRH Plunging CV Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d715900298 CV Boot Kit, Wheel Side. Includes 40d to 40fCV Boot Kit, Wheel Side. Includes 40d to 40f
-
40e715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g715900299 CV Boot Kit, Differential Side. Includes 40g to 40jCV Boot Kit, Differential Side. Includes 40g to 40j
-
40h715900318 Oetiker Clamp, LargeOetiker Clamp, Large
-
40j715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
40705401429 LH Front half shaft. Includes 50 to 50jLH Front half shaft. Includes 50 to 50j
-
40a715900297 CV JointCV Joint
-
40b715900301 LH Plunging CV JointLH Plunging CV Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d715900298 CV Boot Kit, Wheel Side. Includes 50d to 50fCV Boot Kit, Wheel Side. Includes 50d to 50f
-
40e715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g715900299 CV Boot Kit, Differential Side. Includes 50g to 50jCV Boot Kit, Differential Side. Includes 50g to 50j
-
40h715900318 Oetiker Clamp, LargeOetiker Clamp, Large
-
40j715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
60293350118 Cone BearingCone Bearing
-
70293650138 Oetiker Gear ClampOetiker Gear Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
135250300048 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
165293000110 Valve CapValve Cap
-
170250400071 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250001042 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
310250200014 Flat Washer M10Flat Washer M10
-
320250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
350a293830193 Polyurethane HosePolyurethane Hose
