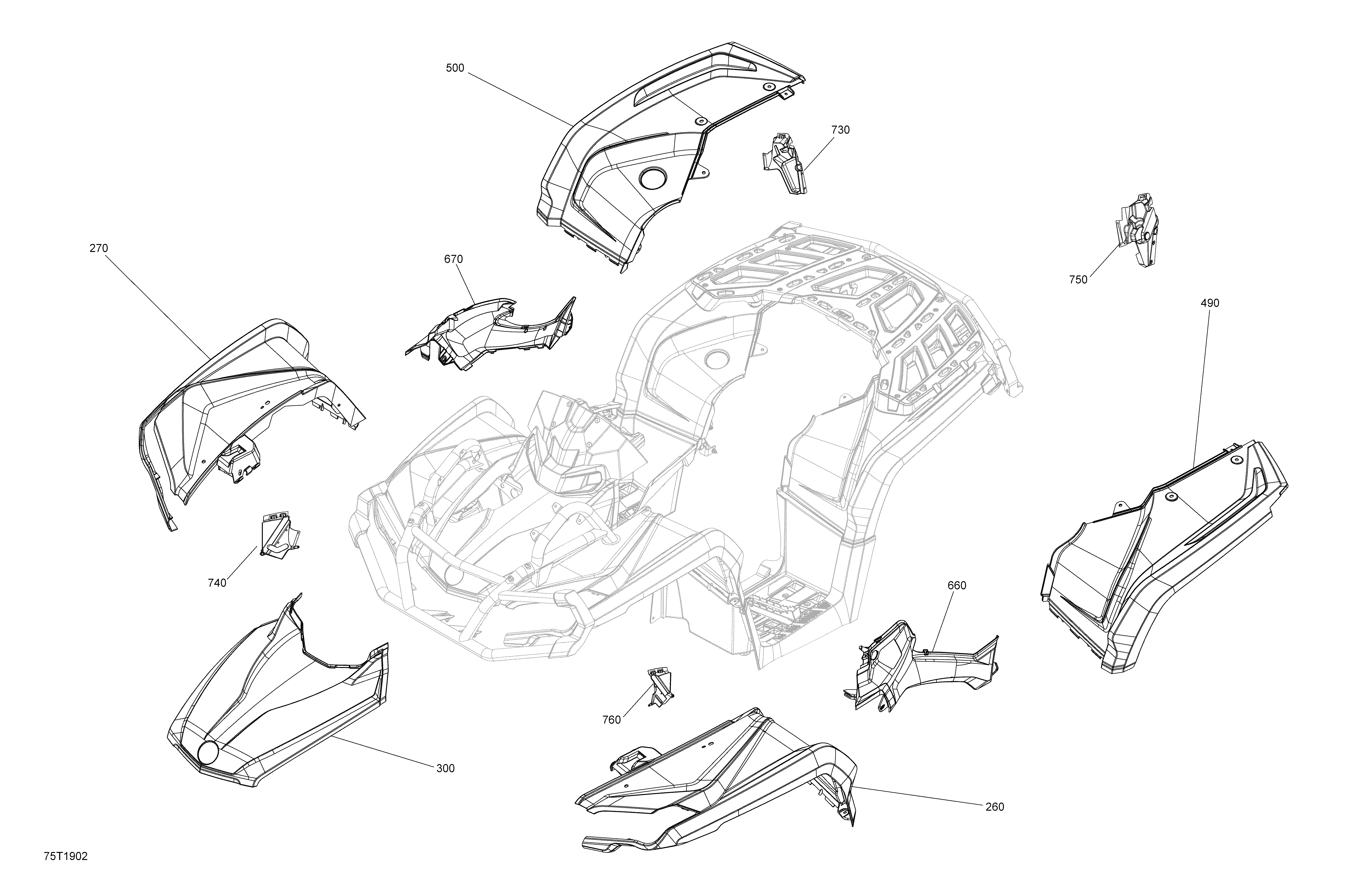

09- Fender And Central Panel Kit - Package XMR для BRP 001 - Outlander 650 EFI - International - European Communities - 2019
-
№АртикулНазвание
-
260715005869 Sunburst Yellow, LH Front FenderSunburst Yellow, LH Front Fender
-
270715005875 Sunburst Yellow, RH Front FenderSunburst Yellow, RH Front Fender
-
290705004565 Lower Fender SupportLower Fender Support
-
300708302435 Black, HoodBlack, Hood
-
490715005881 Sunburst Yellow, LH Rear FenderSunburst Yellow, LH Rear Fender
-
500715005885 Sunburst Yellow, RH Rear FenderSunburst Yellow, RH Rear Fender
-
660705005236 LH PannelLH Pannel
-
670705009121 RH PannelRH Pannel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
