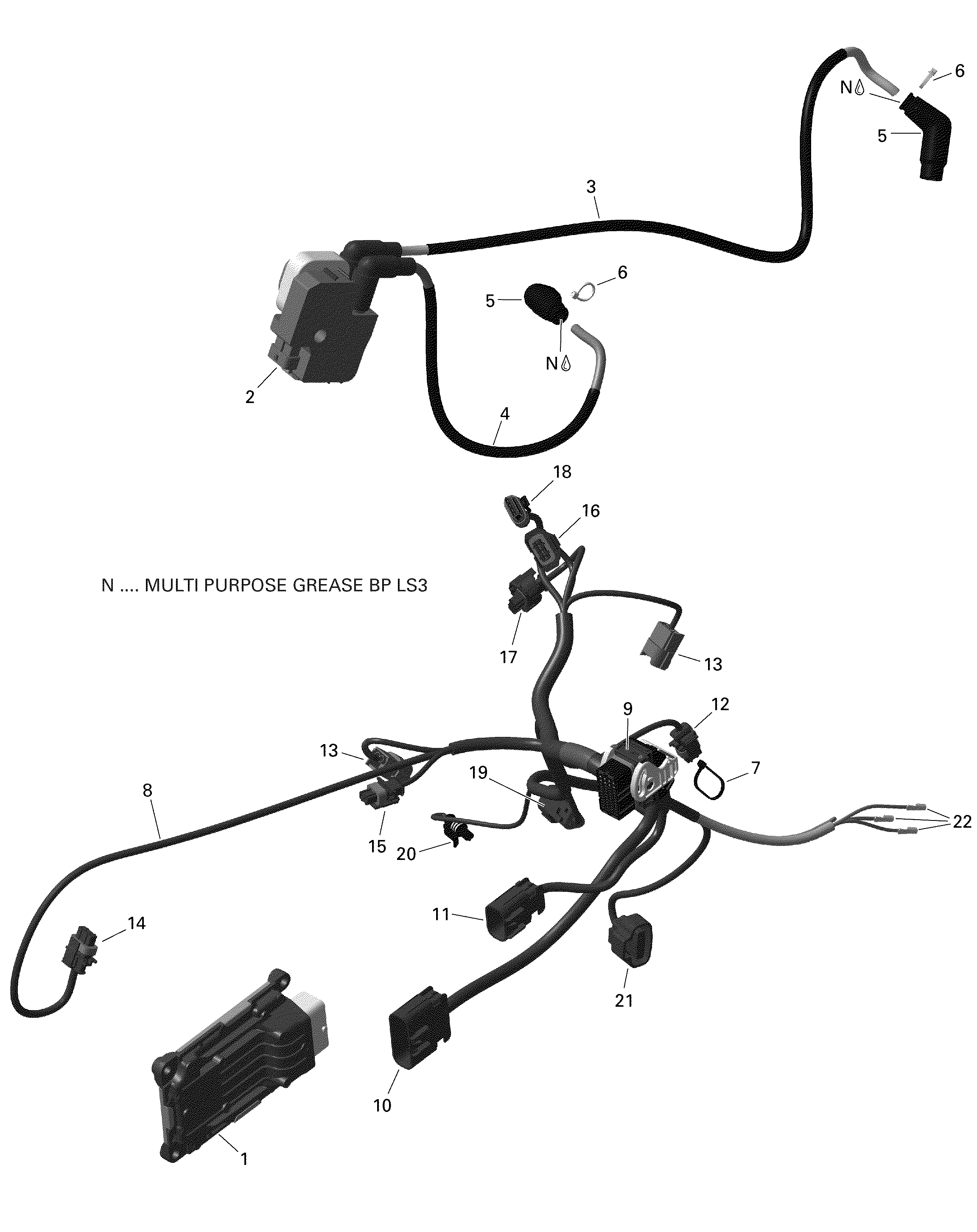

10- Engine Harness And Electronic Module - V1 XT для BRP 002 - Outlander 650 EFI - International - Non European Communities - 2019
-
№АртикулНазвание
-
1420464092 ECU Module. Outlander No CARBECU Module. Outlander No CARB
-
1420464221 ECU Module. Outlander CARBECU Module. Outlander CARB
-
1420464091 ECU Module. Outlander Max No CARBECU Module. Outlander Max No CARB
-
1420464325 ECU Module. Outlander Max CARBECU Module. Outlander Max CARB
-
1420464093 ECU Module. Outlander XMRECU Module. Outlander XMR
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8>23420864696 Engine Wiring Harness. No CARBEngine Wiring Harness. No CARB
-
8>23420864699 Engine Wiring Harness. CARBEngine Wiring Harness. CARB
-
8>23420264791 Engine Wiring Harness. XMREngine Wiring Harness. XMR
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
17515176410 Male ConnectorMale Connector
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22278001009 Female TerminalFemale Terminal
-
22278001007 Insulated SheathInsulated Sheath
