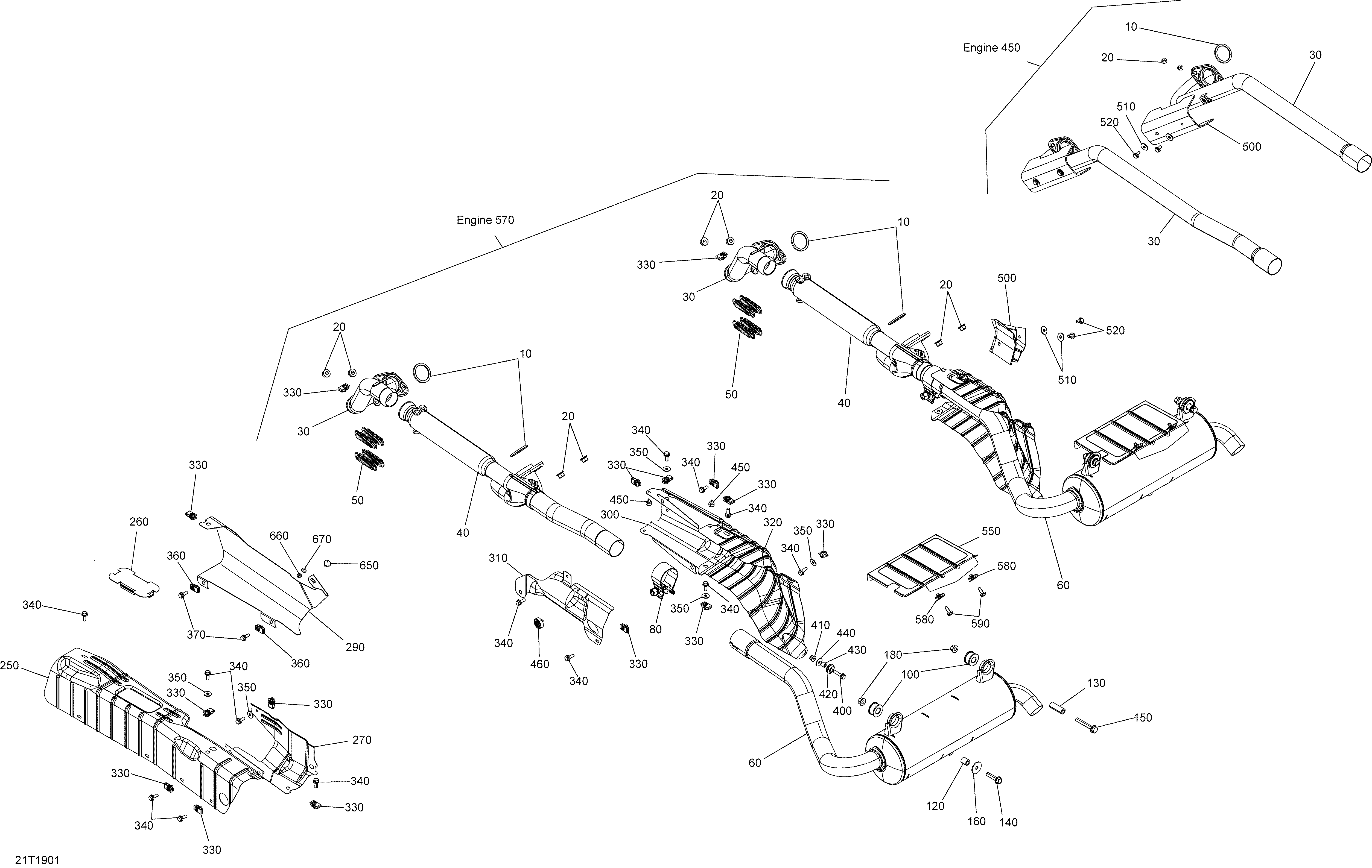

01- Exhaust - 570 EFI для BRP 002 - Outlander 570 EFI - DPS_PRO - T3 - 2019
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707600764 Front Head PipeFront Head Pipe
-
40707601446 Rear Head PipeRear Head Pipe
-
50415107100 SpringSpring
-
60707602219 Exhaust MufflerExhaust Muffler
-
70707600872 Oxygen SensorOxygen Sensor
-
80293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
100707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
120293900116 Spacer BushingSpacer Bushing
-
130293900115 BushingBushing
-
140207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
150207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
160250200158 Flat Washer M8Flat Washer M8
-
180233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
250707602603 ProtectorProtector
-
270707601484 ProtectorProtector
-
290707600996 Heat Shield. Package PROHeat Shield. Package PRO
-
320707601425 ProtectorProtector
-
330250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
340207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
350234062410 Flat Washer 6 mmFlat Washer 6 mm
-
360250000957 Extruded Panel Nut M6. Package PROExtruded Panel Nut M6. Package PRO
-
370207661644 Hex. Flanged Screw M6 X 16. Package PROHex. Flanged Screw M6 X 16. Package PRO
-
400207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
410233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
420293720053 GrommetGrommet
-
430293900105 BushingBushing
-
440224060201 Flat WasherFlat Washer
-
450293830005 Rubber BumperRubber Bumper
-
500707600932 Pipe ProtectorPipe Protector
-
510250200082 Flat WasherFlat Washer
-
520250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
550707601635 ProtectorProtector
-
580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
590207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
650207761244 Carriage Bolt M6 X 12. Package PROCarriage Bolt M6 X 12. Package PRO
-
660232561414 Elastic Stop Nut M6 x 1.0. Package PROElastic Stop Nut M6 x 1.0. Package PRO
-
670234061410 Flat Washer 6 mm. Package PROFlat Washer 6 mm. Package PRO
