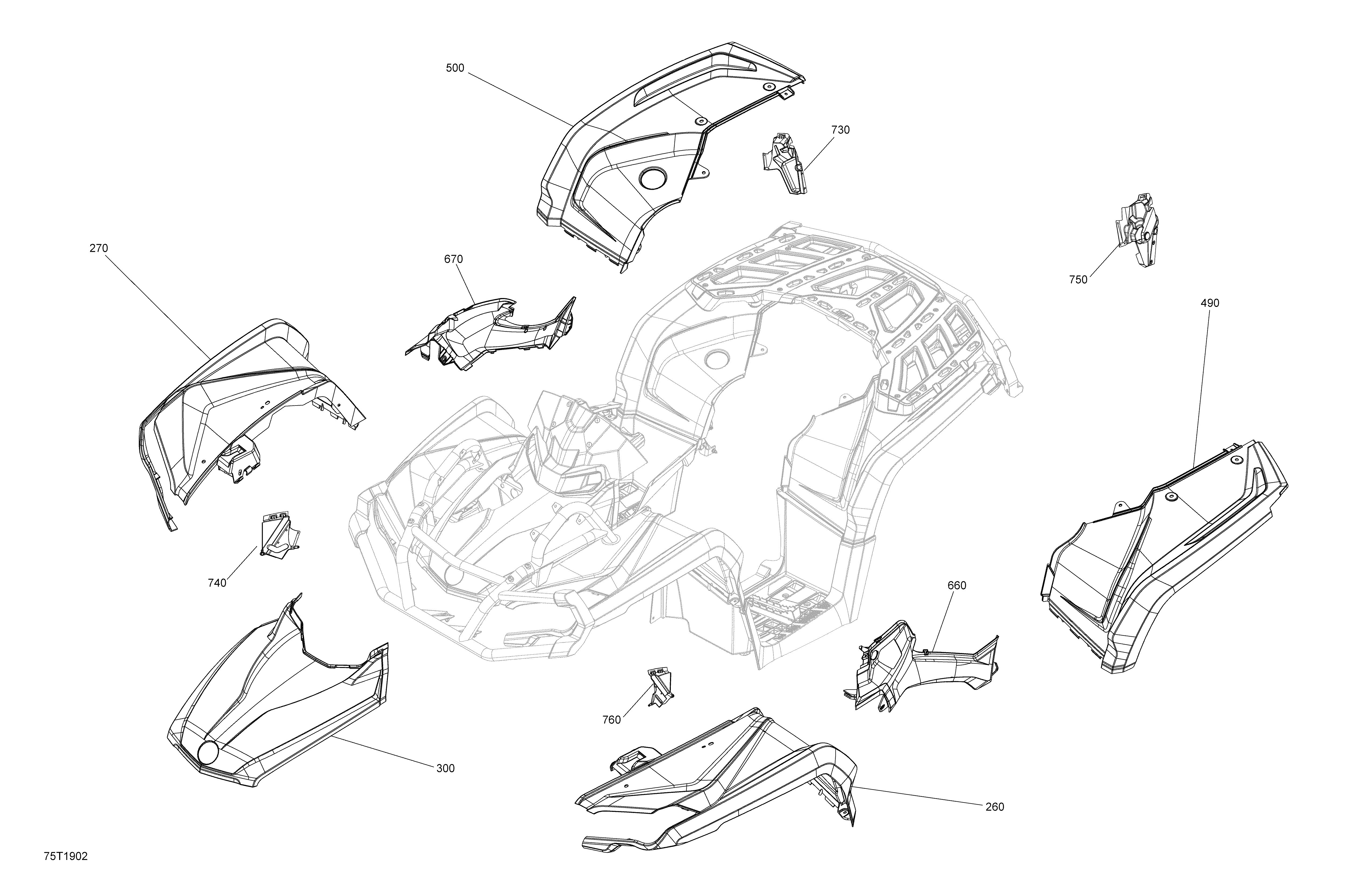

09- Fender And Central Panel Kit - 570 EFI для BRP 006 - Outlander MAX 570 EFI - PRO NORDIC - T3 - 2019
-
№АртикулНазвание
-
260715005635 Squadron Green, LH Front Fender KitSquadron Green, LH Front Fender Kit
-
270715005680 Squadron Green, RH Front Fender KitSquadron Green, RH Front Fender Kit
-
290705004565 Lower Fender SupportLower Fender Support
-
300715005795 Squadron Green, Hood KitSquadron Green, Hood Kit
-
490715004636 Squadron Green, LH Rear Fender KitSquadron Green, LH Rear Fender Kit
-
500715005789 Squadron Green, RH Rear Fender KitSquadron Green, RH Rear Fender Kit
-
660705009760 Squadron Green, LH Lateral PanelSquadron Green, LH Lateral Panel
-
670715004638 Squadron Green, RH Lateral PanelSquadron Green, RH Lateral Panel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
