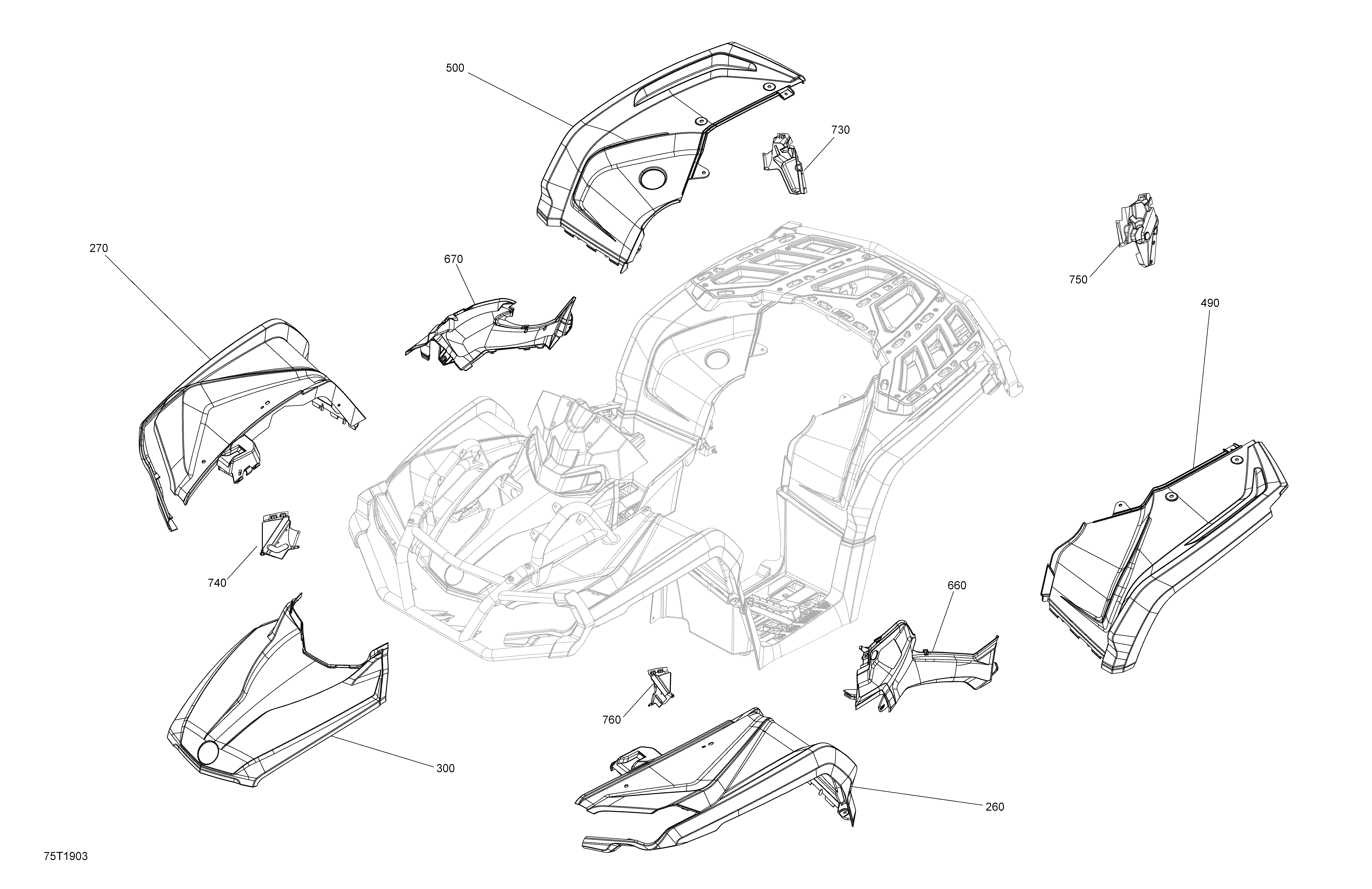

09- Fender And Central Panel Kit - Package PRO Nordic для BRP 001 - Outlander 650 EFI - T3 - 2019
-
№АртикулНазвание
-
260715005640 Intense Red, LH Front Fender KitIntense Red, LH Front Fender Kit
-
270715005683 Intense Red, RH Front Fender KitIntense Red, RH Front Fender Kit
-
290705004565 Lower Fender SupportLower Fender Support
-
300708302430 Paint Intense Red HoodPaint Intense Red Hood
-
500715005790 Intense Red, RH Rear Fender KitIntense Red, RH Rear Fender Kit
-
660705012043 Intense Red, LH Lateral PannelIntense Red, LH Lateral Pannel
-
670705012044 Intense Red, RH Lateral PannelIntense Red, RH Lateral Pannel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
