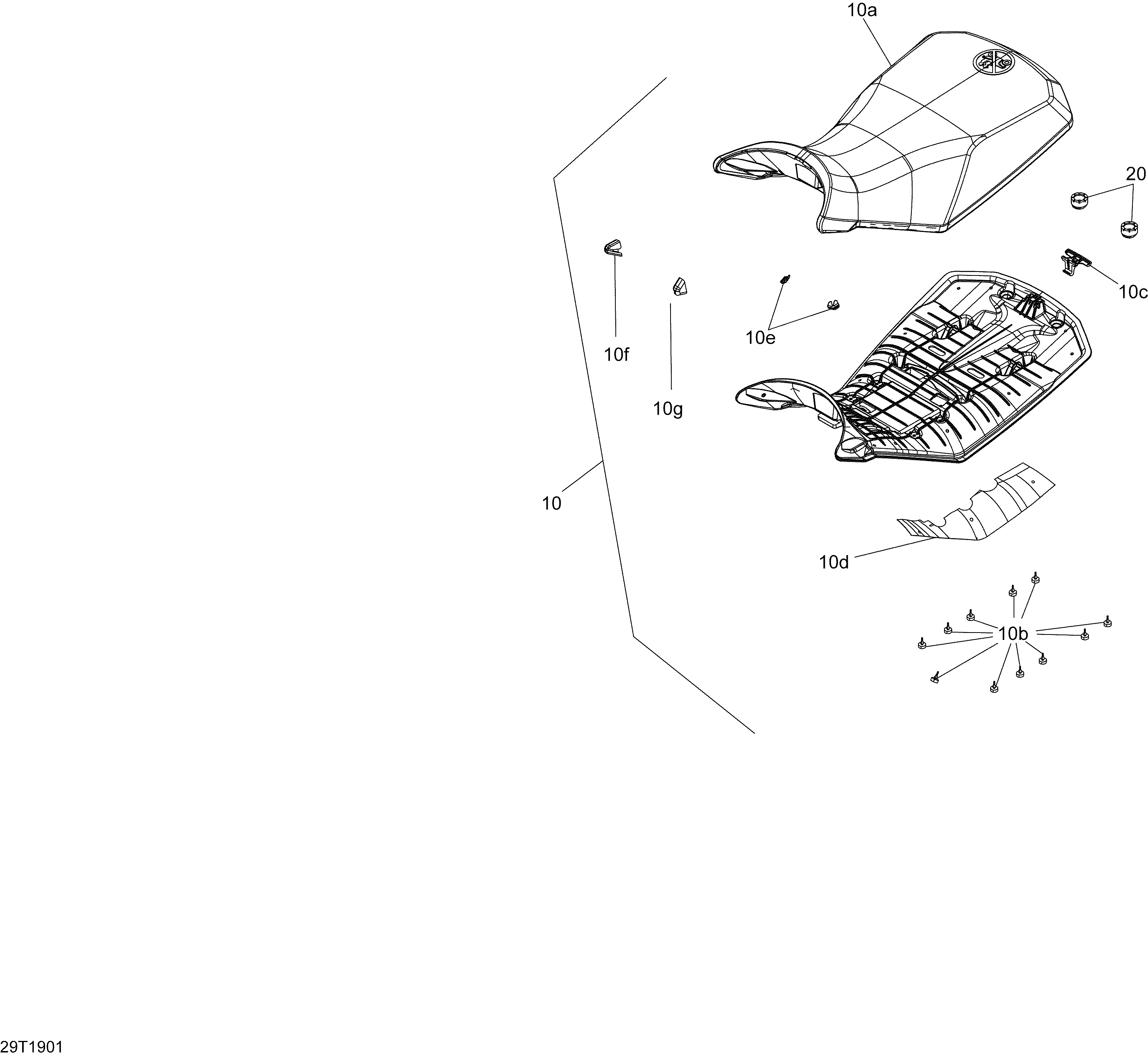

09- Seat для BRP 002 - Outlander 1000 EFI - T3 - 2019
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Packages Hunting Edition, DPS, XT & XTP. Includes 10 to 10dSeat Ass'y. Packages Hunting Edition, DPS, XT & XTP. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Packages Hunting Edition, DPS, XT & XTPBlack Seat Cover. Packages Hunting Edition, DPS, XT & XTP
-
10b708000759 Rubber Stopper. Packages Hunting Edition, DPS, XT & XTPRubber Stopper. Packages Hunting Edition, DPS, XT & XTP
-
10c708000909 Latch. Packages Hunting Edition, DPS, XT & XTPLatch. Packages Hunting Edition, DPS, XT & XTP
-
10d705005761 Heat Shield. Packages Hunting Edition, DPS, XT & XTPHeat Shield. Packages Hunting Edition, DPS, XT & XTP
-
10708002549 Assembly Seat. Package XXC. Includes 10 to 10dAssembly Seat. Package XXC. Includes 10 to 10d
-
10a708002550 Seat Cover. Package XXCSeat Cover. Package XXC
-
10b708000759 Rubber Stopper. Package XXCRubber Stopper. Package XXC
-
10c708000909 Latch. Package XXCLatch. Package XXC
-
10d705005761 Heat Shield. Package XXCHeat Shield. Package XXC
-
10708002883 Seat Ass'y. Package XMR Liquid Gold. Includes 10 to 10dSeat Ass'y. Package XMR Liquid Gold. Includes 10 to 10d
-
10a708002884 Seat Cover. Package XMR Liquid GoldSeat Cover. Package XMR Liquid Gold
-
10b708000759 Rubber Stopper. Package XMR Liquid GoldRubber Stopper. Package XMR Liquid Gold
-
10c708000909 Latch. Package XMR Liquid GoldLatch. Package XMR Liquid Gold
-
10d705005761 Heat Shield. Package XMR Liquid GoldHeat Shield. Package XMR Liquid Gold
-
10708002885 Seat Ass'y. Package XMR Sunburst Yellow. Includes 10 to 10dSeat Ass'y. Package XMR Sunburst Yellow. Includes 10 to 10d
-
10a708002886 Seat Cover. Package XMR Sunburst YellowSeat Cover. Package XMR Sunburst Yellow
-
10b708000759 Rubber Stopper. Package XMR Sunburst YellowRubber Stopper. Package XMR Sunburst Yellow
-
10c708000909 Latch. Package XMR Sunburst YellowLatch. Package XMR Sunburst Yellow
-
10d705005761 Heat Shield. Package XMR Sunburst YellowHeat Shield. Package XMR Sunburst Yellow
-
20708000760 Bumper RubberBumper Rubber
