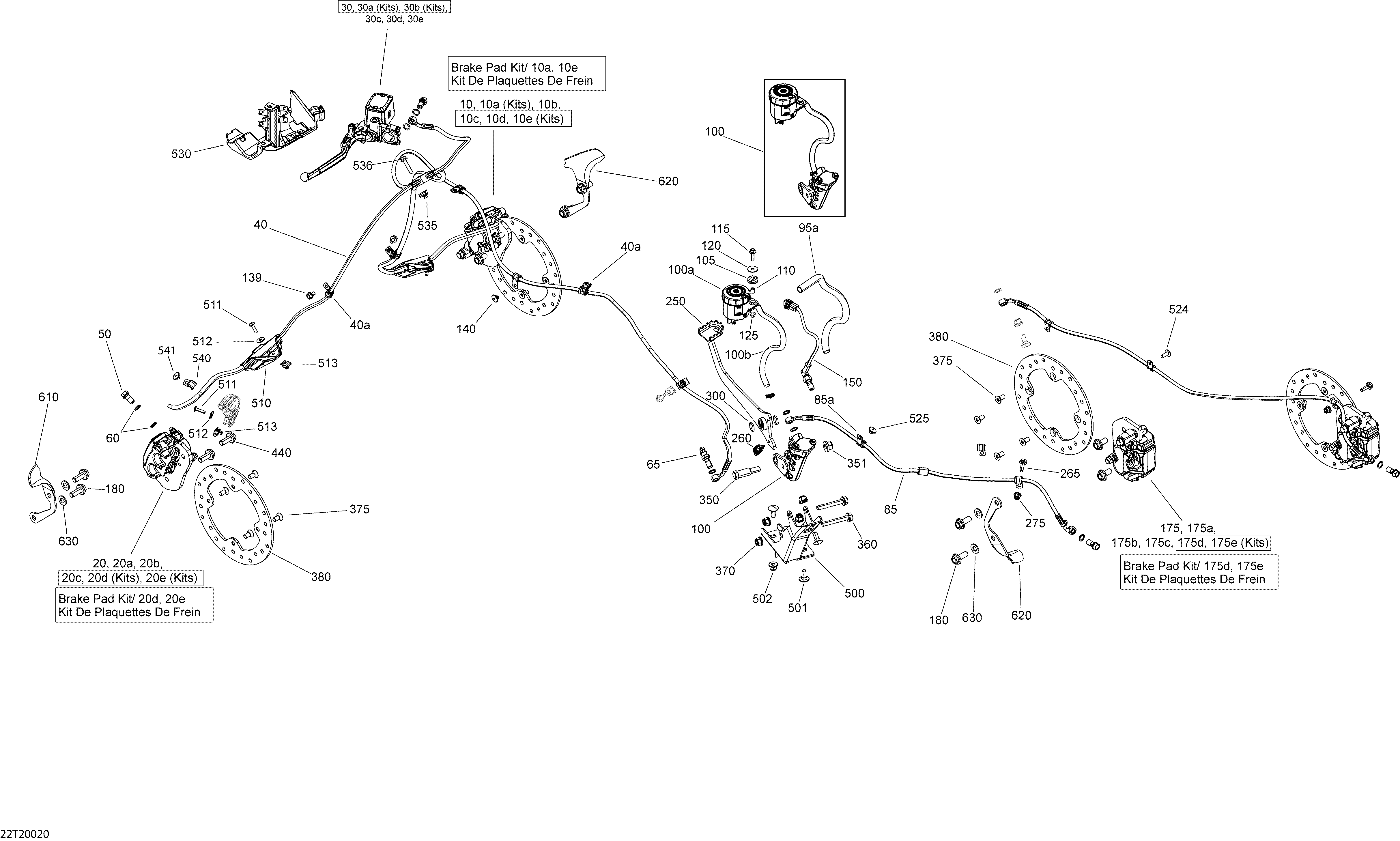

06- Brakes для BRP 003 - Outlander 570 EFI - XMR - North America - 2020
-
№АртикулНазвание
-
10703500967 RH Front Caliper Ass'y. Includes 10 to 10aRH Front Caliper Ass'y. Includes 10 to 10a
-
10705600861 RH Front Caliper Ass'yRH Front Caliper Ass'y
-
10a705601014 RH Brake Pad KitRH Brake Pad Kit
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
10e715900249 RH Brake Pad KitRH Brake Pad Kit
-
20703500968 LH Front Caliper Ass'y. Includes 20 to 20aLH Front Caliper Ass'y. Includes 20 to 20a
-
20705600862 LH Front Caliper Ass'yLH Front Caliper Ass'y
-
20a705601016 Pin SetPin Set
-
20b705601017 Bleeding ScrewBleeding Screw
-
20c705601018 SpringSpring
-
20d705601015 LH Brake Pad KitLH Brake Pad Kit
-
20e715900248 LH Brake Pad KitLH Brake Pad Kit
-
30705601430 LH Front Master CylinderLH Front Master Cylinder
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw Kit. Includes toClamp And Screw Kit. Includes to
-
30c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30d219800096 Cap Set. Includes toCap Set. Includes to
-
30e415129356 Screw M4 X 20Screw M4 X 20
-
40705601524 Front HoseFront Hose
-
40a293650256 ClampClamp
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper WasherCopper Washer
-
65705601051 Bleeding ScrewBleeding Screw
-
85705601301 RH Rear HoseRH Rear Hose
-
85a293650256 ClampClamp
-
95a415079900 Tubing 10 mmTubing 10 mm
-
100705601273 Rear Master CylinderRear Master Cylinder
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake SwitchBrake Switch
-
175703500969 RH Rear Caliper Ass'y. Includes 175 to 175aRH Rear Caliper Ass'y. Includes 175 to 175a
-
175705600859 RH Rear Caliper Ass'yRH Rear Caliper Ass'y
-
175a705601016 Pin SetPin Set
-
175b705601017 Bleeding ScrewBleeding Screw
-
175c705601018 SpringSpring
-
175d705601014 RH Brake Pad KitRH Brake Pad Kit
-
175e715900249 RH Brake Pad KitRH Brake Pad Kit
-
180207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Disc BrakeDisc Brake
-
440207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
610705601214 LH DeflectorLH Deflector
-
620705601215 RH DeflectorRH Deflector
-
630234001410 Flat Washer 10 mmFlat Washer 10 mm
