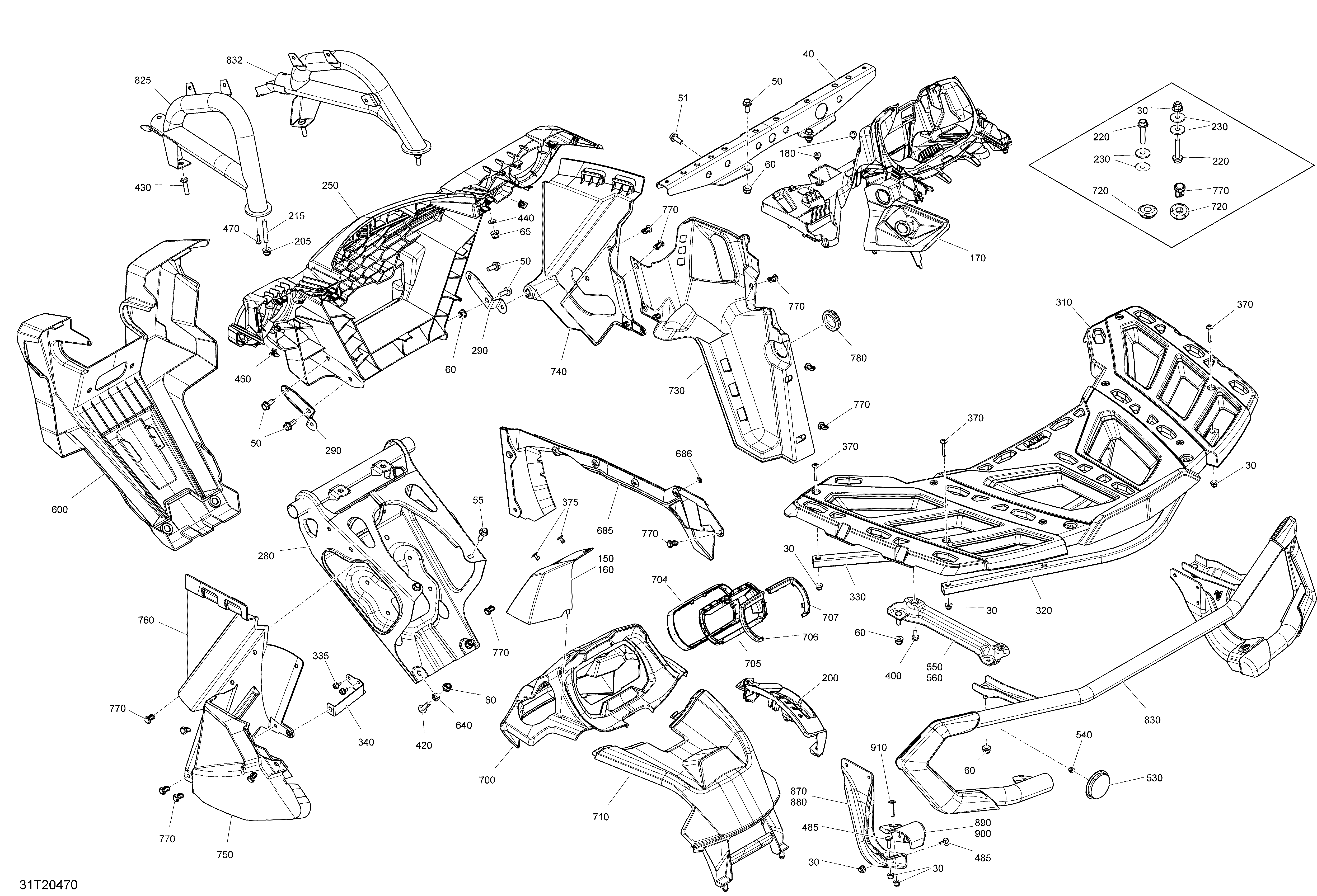

09- Body - Granite Grey для BRP 004 - Outlander 850 EFI - XMR - North America - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
40705006220 Front Bumper Center SupportFront Bumper Center Support
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
150705006134 LH Air DeflectorLH Air Deflector
-
160705006135 RH Air DeflectorRH Air Deflector
-
170705013986 Dash Support KitDash Support Kit
-
180293830005 Rubber BumperRubber Bumper
-
200715003977 Shifter Gate KitShifter Gate Kit
-
205233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
215206285044 Socket Set Screw M8 x 50Socket Set Screw M8 x 50
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705012822 FasciaFascia
-
280705009253 Black Front Bumper SupportBlack Front Bumper Support
-
290705004565 Lower Fender SupportLower Fender Support
-
310705003559 Lugage RackLugage Rack
-
320705005469 TubeTube
-
330705005470 TubeTube
-
335210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
340705007140 LH Inner Fender BracketLH Inner Fender Bracket
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
375293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
440234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460517302785 Edge ClipEdge Clip
-
470207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
485207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
530705011221 Red ReflectorRed Reflector
-
540233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
550705007277 LH SupportLH Support
-
560705007278 RH SupportRH Support
-
600705006299 Front Guard PlateFront Guard Plate
-
640705004497 RingRing
-
685705014061 Deflector Body PanelDeflector Body Panel
-
686732610072 Push NutPush Nut
-
700705014426 Gauge SupportGauge Support
-
704705012878 Back TrimBack Trim
-
705709402093 Cluster CapCluster Cap
-
706709402210 Trim for Cluster Cap LH, B-160Trim for Cluster Cap LH, B-160
-
707709402211 Trim for Cluster Cap RH, B-160Trim for Cluster Cap RH, B-160
-
708250000797 Torx Head Screw M4 X 16Torx Head Screw M4 X 16
-
710705006690 Console CapConsole Cap
-
720705003264 GrommetGrommet
-
730705013925 RH Wheel Arch ProtectorRH Wheel Arch Protector
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013924 LH Wheel Arch ProtectorLH Wheel Arch Protector
-
760705011465 LH Front Inner FenderLH Front Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
-
825705014420 LH Radiator SupportLH Radiator Support
-
830708200445 Rear Bumber Granite Grey ModelRear Bumber Granite Grey Model
-
832705014422 RH Radiator SupportRH Radiator Support
-
870705008164 LH Rear BracketLH Rear Bracket
-
880705008165 RH Rear BracketRH Rear Bracket
-
890705005094 LH BracketLH Bracket
-
900705005095 RH BracketRH Bracket
-
910250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
