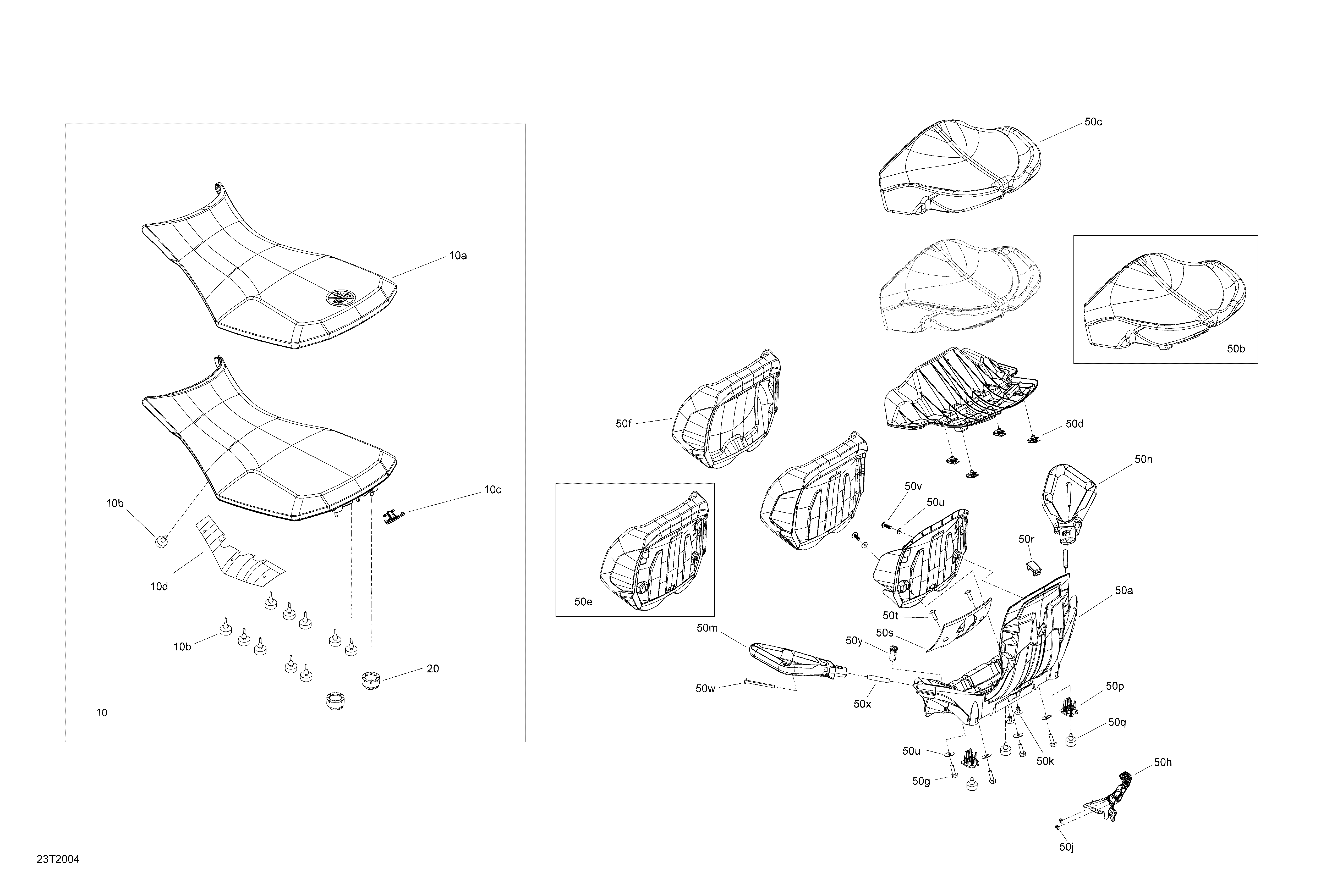

09- Seat для BRP 009 - Outlander MAX 1000R EFI - North America - 2020
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Includes 10 to 10dSeat Ass'y. Includes 10 to 10d
-
10a708000724 Black, Seat CoverBlack, Seat Cover
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000909 LatchLatch
-
10d705005761 Heat ShieldHeat Shield
-
20708003053 Stopper RubberStopper Rubber
-
50a708002574 Seat Base. XT_XTPSeat Base. XT_XTP
-
50b708002086 Seat. XT_XTP. Includes 50b to 50dSeat. XT_XTP. Includes 50b to 50d
-
50c708001581 Passenger Seat Cover. XT_XTPPassenger Seat Cover. XT_XTP
-
50d250000957 Extruded Panel Nut M6. XT_XTPExtruded Panel Nut M6. XT_XTP
-
50e708002081 Backrest. XT_XTP. Includes 50e to 50fBackrest. XT_XTP. Includes 50e to 50f
-
50f708001847 Back Rest Cover. XT_XTPBack Rest Cover. XT_XTP
-
50g207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. XT_XTPHex. Flanged Screw M6 X 20, Scotch Grip. XT_XTP
-
50h708001532 Latch. XT_XTP. Includes 50h to 50jLatch. XT_XTP. Includes 50h to 50j
-
50j234051410 Flat Washer M5. XT_XTPFlat Washer M5. XT_XTP
-
50k293150108 Pop Rivet 3/16”. XT_XTPPop Rivet 3/16”. XT_XTP
-
50m703500806 LH Passenger Seat Handle Kit. XT_XTPLH Passenger Seat Handle Kit. XT_XTP
-
50n703500807 RH Passenger Seat Handle Kit. XT_XTPRH Passenger Seat Handle Kit. XT_XTP
-
50p708001483 Seat Support. XT_XTPSeat Support. XT_XTP
-
50q708000758 Rubber Stopper. XT_XTPRubber Stopper. XT_XTP
-
50r708001511 Insert. XT_XTPInsert. XT_XTP
-
50s708001512 Cap. XT_XTPCap. XT_XTP
-
50t250000577 Torx Truss Screw K40 X 12. XT_XTPTorx Truss Screw K40 X 12. XT_XTP
-
50u224060201 Flat Washer. XT_XTPFlat Washer. XT_XTP
-
50v250000546 Oval Head Torx Screw K60 X 16. XT_XTPOval Head Torx Screw K60 X 16. XT_XTP
-
50w250000806 Torx Truss M8 X 90. XT_XTPTorx Truss M8 X 90. XT_XTP
-
50x705009248 Sleeve. XT_XTPSleeve. XT_XTP
-
50y710003910 Pilot Lamp Cap. XT_XTPPilot Lamp Cap. XT_XTP
-
50a708002574 Seat Base. LTD. Includes 50a to 50dSeat Base. LTD. Includes 50a to 50d
-
50b708002890 Passenger Seat Cover. LTDPassenger Seat Cover. LTD
-
50c250000957 Extruded Panel Nut M6. LTDExtruded Panel Nut M6. LTD
-
50d708002891 Backrest Cover. LTDBackrest Cover. LTD
-
50e207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. LTDHex. Flanged Screw M6 X 20, Scotch Grip. LTD
-
50f708001532 Latch. LTD. Includes 50f to 50gLatch. LTD. Includes 50f to 50g
-
50g234051410 Flat Washer M5. LTDFlat Washer M5. LTD
-
50h293150108 Pop Rivet 3/16”. LTDPop Rivet 3/16”. LTD
-
50j703500806 LH Passenger Seat Handle Kit. LTDLH Passenger Seat Handle Kit. LTD
-
50k703500807 RH Passenger Seat Handle Kit. LTDRH Passenger Seat Handle Kit. LTD
-
50m708001483 Seat Support. LTDSeat Support. LTD
-
50n708000758 Rubber Stopper. LTDRubber Stopper. LTD
-
50p708001511 Insert. LTDInsert. LTD
-
50q708001512 Cap. LTDCap. LTD
-
50r250000577 Torx Truss Screw K40 X 12. LTDTorx Truss Screw K40 X 12. LTD
-
50s224060201 Flat Washer. LTDFlat Washer. LTD
-
50t250000546 Oval Head Torx Screw K60 X 16. LTDOval Head Torx Screw K60 X 16. LTD
-
50u250000806 Torx Truss M8 X 90. LTDTorx Truss M8 X 90. LTD
-
50v705009248 Sleeve. LTDSleeve. LTD
-
50w710003910 Pilot Lamp Cap. LTDPilot Lamp Cap. LTD
