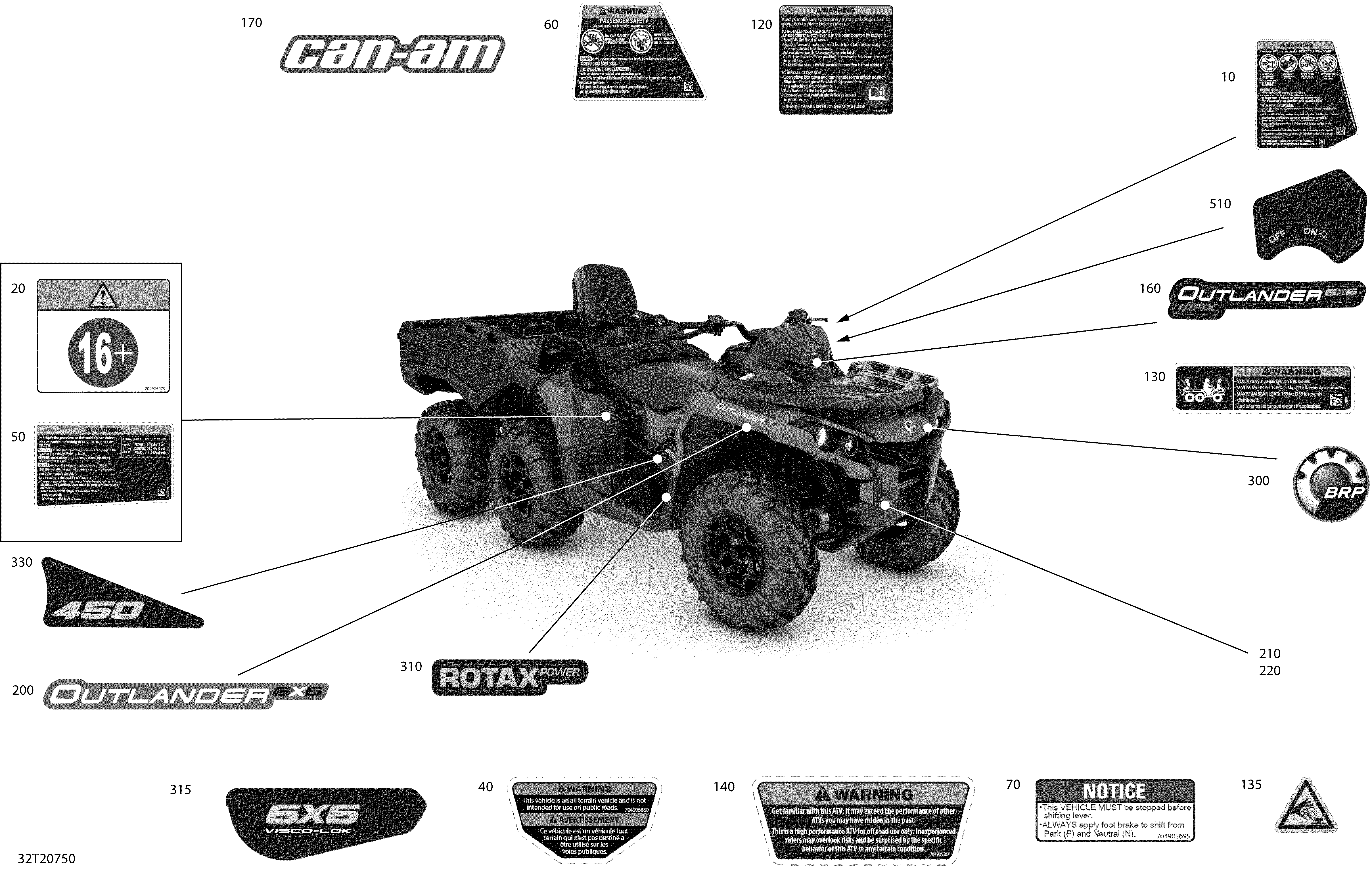

09- Decals - DPS для BRP 001 - Outlander MAX 6X6 - 450 EFI - North America - 2020
-
№АртикулНазвание
-
10704908020 Warning LabelWarning Label
-
20704905678 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704907504 Warning Label Tire PressureWarning Label Tire Pressure
-
60704907198 Warning Label PassengerWarning Label Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
120704905700 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704907864 Warning LabelWarning Label
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704907203 Console Decal '' Outlander 6x6 Max ''Console Decal '' Outlander 6x6 Max ''
-
170704905731 Decal ''Can-Am''Decal ''Can-Am''
-
200704906767 Outlander 6x6 DecalOutlander 6x6 Decal
-
210704903972 LH Side Front ReflectorLH Side Front Reflector
-
220704903973 RH Side Front ReflectorRH Side Front Reflector
-
300516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
310704905746 Decal ''Rotax Power''Decal ''Rotax Power''
-
315704906120 Decal Cvt 6 X 6 Visco-lokDecal Cvt 6 X 6 Visco-lok
-
330704905751 LH Engine Decal ''450''LH Engine Decal ''450''
-
510704906046 Decal ''DESS''Decal ''DESS''
