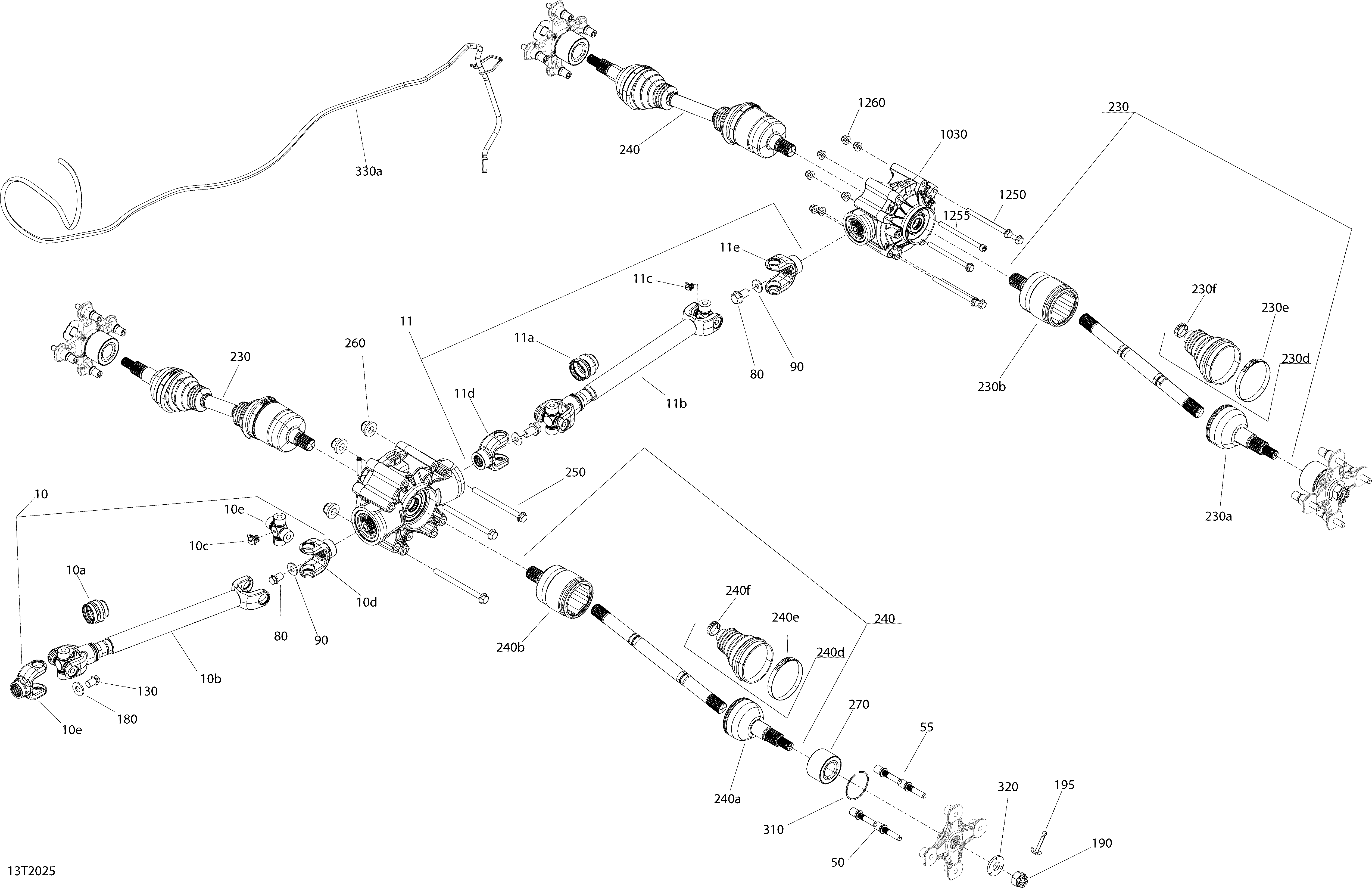

08- Rear Drive для BRP 002 - Outlander MAX 6X6 - 650 EFI - North America - 2020
-
№АртикулНазвание
-
10703500989 Shaft Ass'y Kit. Includes 10 to 10fShaft Ass'y Kit. Includes 10 to 10f
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes 10b to 10cUniversal Joint Ass'y. Includes 10b to 10c
-
10c715900295 Grease FittingGrease Fitting
-
10d715900499 JointJoint
-
10e715900436 JointJoint
-
10f705501123 Protector. not shownProtector. not shown
-
11703501084 Shaft Ass'y Kit. Includes 11 to 11fShaft Ass'y Kit. Includes 11 to 11f
-
11a715900118 Rubber BootRubber Boot
-
11b715900326 Universal Joint. Includes 11b to 11cUniversal Joint. Includes 11b to 11c
-
11c715900295 Grease FittingGrease Fitting
-
11d715900499 JointJoint
-
11e715900438 YokeYoke
-
11f705501123 Protector. not shownProtector. not shown
-
15705501123 Protector. not shownProtector. not shown
-
40705500504 Fill Level Plug. not shownFill Level Plug. not shown
-
45705500506 Copper Washer. not shownCopper Washer. not shown
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250001044 Screw-Hex.Flange M10 X 16 S.GRIPScrew-Hex.Flange M10 X 16 S.GRIP
-
90250200014 Flat Washer M10Flat Washer M10
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705502711 RH CV Joint. Includes 230 to 230fRH CV Joint. Includes 230 to 230f
-
230a705501776 CV JointCV Joint
-
230b705501780 Plunging JointPlunging Joint
-
230c705501781 Circlip. not shownCirclip. not shown
-
230d705501864 Boot Kit. Includes 230d to 230fBoot Kit. Includes 230d to 230f
-
230e715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230f715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240705502710 LH CV Joint. Includes 240 to 240fLH CV Joint. Includes 240 to 240f
-
240a705501776 CV JointCV Joint
-
240b705501780 Plunging JointPlunging Joint
-
240c705501781 Circlip. not shownCirclip. not shown
-
240d705501864 Boot Kit. Includes 240d to 240fBoot Kit. Includes 240d to 240f
-
240e715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240f715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
-
1030705502370 Rear Drive Unit Ass'y. Includes 1030 to 1030uRear Drive Unit Ass'y. Includes 1030 to 1030u
-
1080250000378 Hex Flanged Screw M12 X 16, Scotch Grip. not shownHex Flanged Screw M12 X 16, Scotch Grip. not shown
-
1250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
1255231003587 Screw-socket Hd.din.912Screw-socket Hd.din.912
-
1260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
