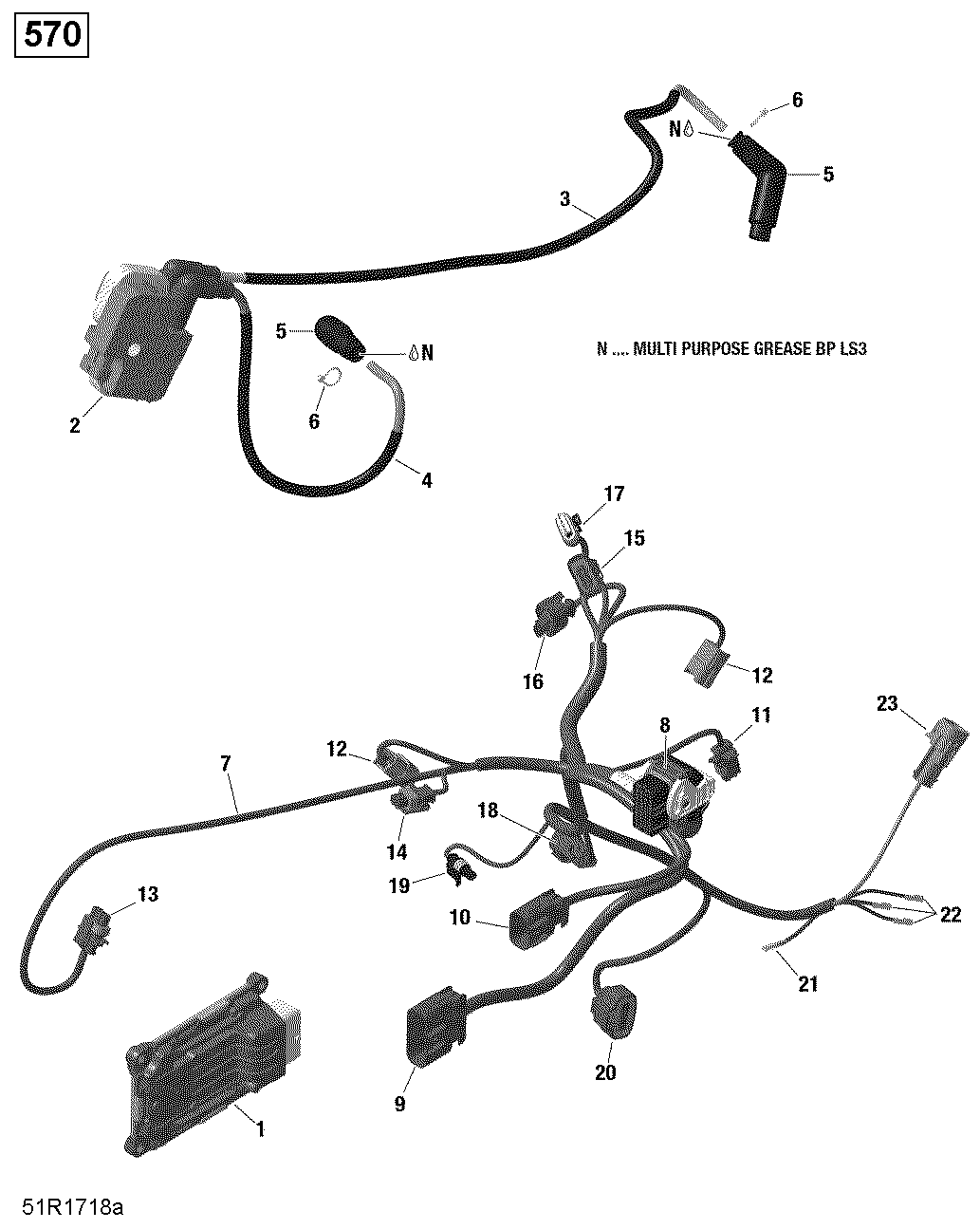

10- Engine Harness and Electronic Module - 570 EFI - Renegade для BRP 002 - Renegade 570 EFI - XMR - North America - 2020
-
№АртикулНазвание
-
1420464084 ECM, Engine Control Module. Esxcept CARB, Except Package XMRECM, Engine Control Module. Esxcept CARB, Except Package XMR
-
1420464324 ECM, Engine Control Module. CARBECM, Engine Control Module. CARB
-
1420464220 ECM, Engine Control Module. Package XMRECM, Engine Control Module. Package XMR
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420464166 Spark Plug Cable, 570 mm, PTO SideSpark Plug Cable, 570 mm, PTO Side
-
4420464155 Spark Plug Cable, 315 mm, MAG SideSpark Plug Cable, 315 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>23420864696 Engine Wiring HarnessEngine Wiring Harness
-
9710001227 HousingHousing
-
10710001927 HousingHousing
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
16515176410 Male ConnectorMale Connector
-
18278002378 Male HousingMale Housing
-
19278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21>21a278001009 Female TerminalFemale Terminal
-
21a278001007 Insulated SheathInsulated Sheath
-
22>22a278001009 Female TerminalFemale Terminal
-
22a278001007 Insulated SheathInsulated Sheath
