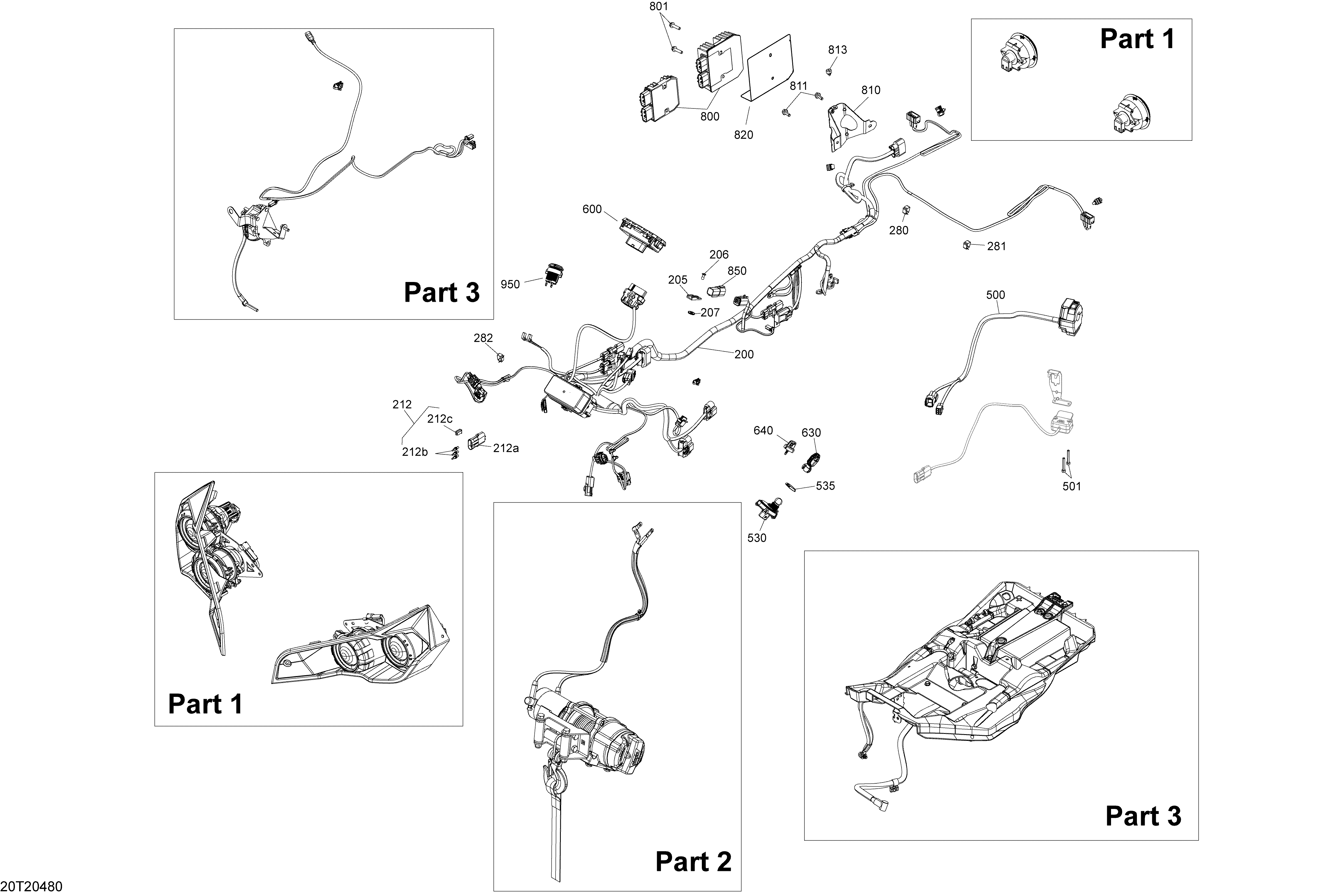

10- Electrical System - Main Section для BRP 004 - Renegade 1000R EFI - XXC - North America - 2020
-
№АртикулНазвание
-
200710006239 HarnessHarness
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
212710000917 Connector Ass'y. Includes 212 to 212cConnector Ass'y. Includes 212 to 212c
-
212a278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
212b278000216 Wire SealWire Seal
-
212c710000992 ClipClip
-
280414227300 ClipClip
-
281414227300 ClipClip
-
282414227300 ClipClip
-
500710006134 Handle SwitchHandle Switch
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530515178225 DESS Switch, RFIDDESS Switch, RFID
-
535278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
600710006216 SpeedometerSpeedometer
-
630710005232 Green Key RFIDGreen Key RFID
-
640710004964 Grey Key RFIDGrey Key RFID
-
800710005842 Voltage RegulatorVoltage Regulator
-
801210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
810710002587 Rectifier SupportRectifier Support
-
811207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
813293830005 Rubber BumperRubber Bumper
-
820710006746 DeflectorDeflector
-
850710003006 HousingHousing
-
950710001248 Outlet DCOutlet DC
