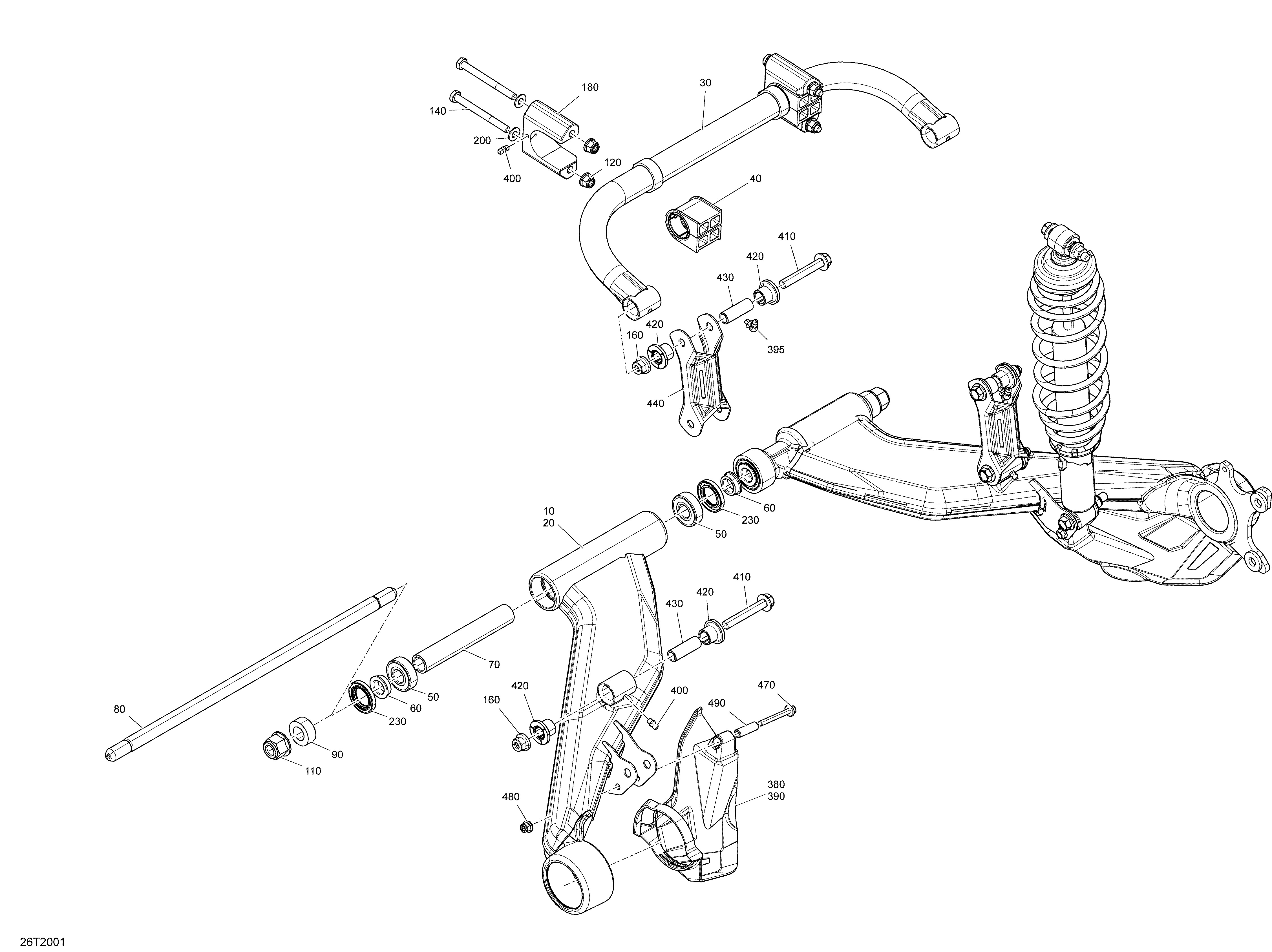

08- Rear Suspension для BRP 001 - Outlander 450 EFI - International - European Communities - 2020
-
№АртикулНазвание
-
10706001646 Black, LH Swing ArmBlack, LH Swing Arm
-
20706001647 Black, RH Swing ArmBlack, RH Swing Arm
-
30706001678 Sway BarSway Bar
-
40706002246 CushionCushion
-
50706003749 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002258 SpacerSpacer
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140250001035 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
160233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
390706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420703500875 Bushing KitBushing Kit
-
430703500875 Bushing KitBushing Kit
-
440706001020 Swaybar LinkageSwaybar Linkage
-
470207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
490707001376 BushingBushing
