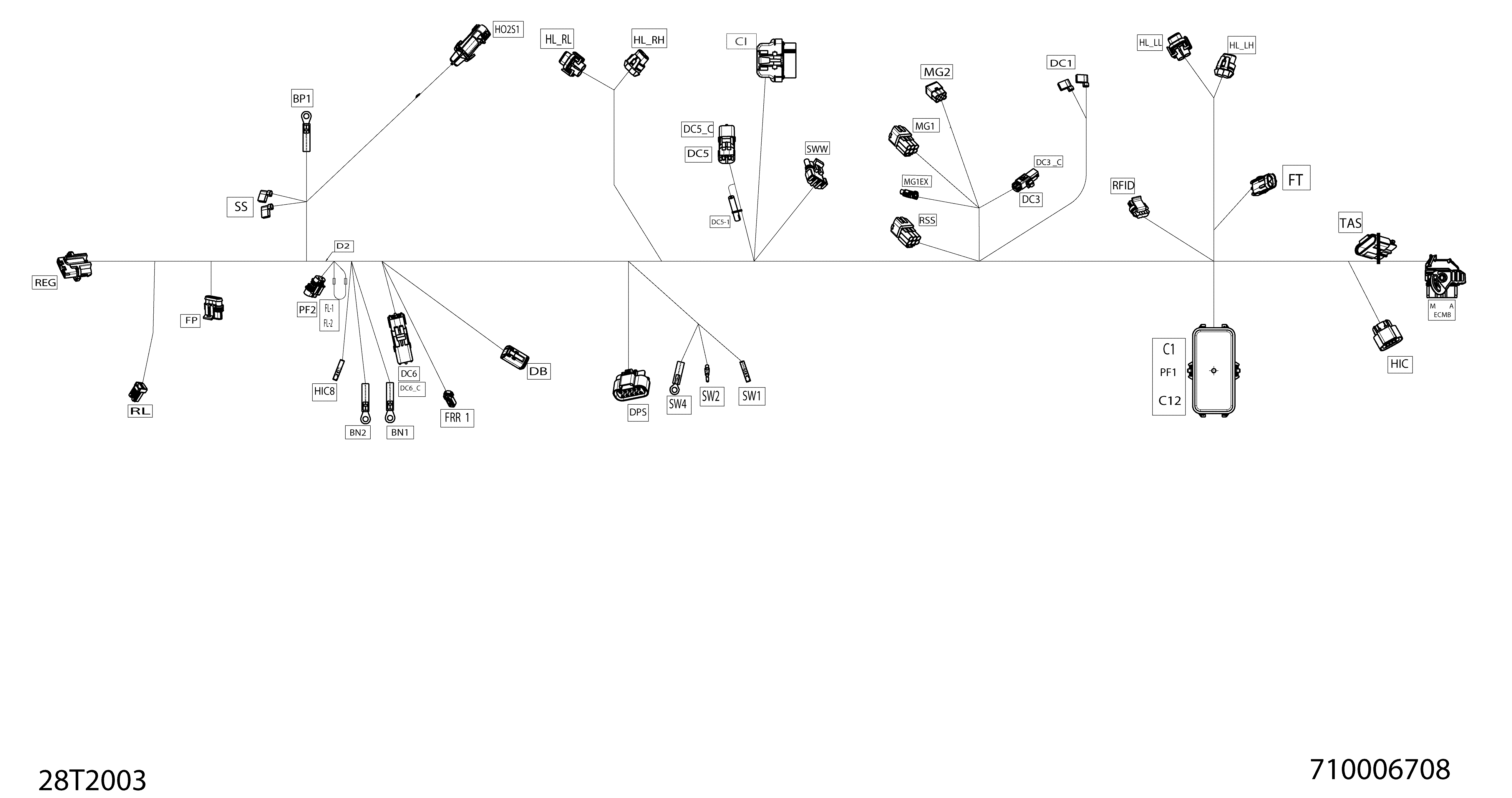

10- Main Harness - 710006708 - PRO для BRP 002 - Outlander 450 EFI - International - Non-European Communities - 2020
-
№АртикулНазвание
-
200710006708 Wiring Harness MainWiring Harness Main
-
BN1710000913 TerminalTerminal
-
BN2710000913 TerminalTerminal
-
BP1278001392 Open BarrelOpen Barrel
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175812 PlugPlug
-
CI710000399 Female HousingFemale Housing
-
CI515175803 Wire SealWire Seal
-
CI710001131 Female TerminalFemale Terminal
-
D2409012700 DiodeDiode
-
D5409012700 DiodeDiode
-
D6409012700 DiodeDiode
-
DB710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
DB710002705 LockLock
-
DB710005438 Female TerminalFemale Terminal
-
DB710005439 Female TerminalFemale Terminal
-
DC1409010300 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3515175231 Female TerminalFemale Terminal
-
DC3_C710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC5278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC5278001065 Wire SealWire Seal
-
DC5278000223 Female TerminalFemale Terminal
-
DC5_1278001007 Insulated SheathInsulated Sheath
-
DC5_1710000421 Female TerminalFemale Terminal
-
DC5_C710000992 ClipClip
-
DC5_C278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC5_C278000216 Wire SealWire Seal
-
DC6278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
DC6278001065 Wire SealWire Seal
-
DC6278000223 Female TerminalFemale Terminal
-
DC6_C710000992 ClipClip
-
DC6_C278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC6_C278000216 Wire SealWire Seal
-
DPS710004989 Female HousingFemale Housing
-
DPS710001222 LockLock
-
DPS710002075 PlugPlug
-
DPS278002186 Wire SealWire Seal
-
DPS710003153 SealSeal
-
DPS710001873 TerminalTerminal
-
DPS278002187 Female TerminalFemale Terminal
-
ECMB710001591 Cover, 48 positionsCover, 48 positions
-
ECMB710001967 Molex Housing, 48 CircuitsMolex Housing, 48 Circuits
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001728 TerminalTerminal
-
ECMB710001727 Female TerminalFemale Terminal
-
F1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F12710002590 Fuse, 25 AmpsFuse, 25 Amps
-
F2710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
F3710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F4710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F5710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F8710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F9710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FL1715003119 Wire-Fuse 31-40 AMPWire-Fuse 31-40 AMP
-
FL2715003119 Wire-Fuse 31-40 AMPWire-Fuse 31-40 AMP
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP278001013 Wire SealWire Seal
-
FP515176621 Wire SealWire Seal
-
FP278001014 Female TerminalFemale Terminal
-
FP710001340 Female TerminalFemale Terminal
-
FRR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRR515175231 Female TerminalFemale Terminal
-
FT409210100 Clip Bracket Connector (edge)Clip Bracket Connector (edge)
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
HIC710001928 HousingHousing
-
HIC710001222 LockLock
-
HIC710001225 CapCap
-
HIC710001233 SealSeal
-
HIC710001332 Seal WireSeal Wire
-
HIC710001229 TerminalTerminal
-
HIC710001228 TerminalTerminal
-
HIC8278001007 Insulated SheathInsulated Sheath
-
HIC8710000421 Female TerminalFemale Terminal
-
HL_LH710002278 HousingHousing
-
HL_LH710002279 LockLock
-
HL_LH710001427 Wire SealWire Seal
-
HL_LH278002578 Female TerminalFemale Terminal
-
HL_LL710002578 HousingHousing
-
HL_LL710002584 LockLock
-
HL_LL710001427 Wire SealWire Seal
-
HL_LL278002578 Female TerminalFemale Terminal
-
HL_RH710002278 HousingHousing
-
HL_RH710002279 LockLock
-
HL_RH710001427 Wire SealWire Seal
-
HL_RH278002578 Female TerminalFemale Terminal
-
HL_RL710002578 HousingHousing
-
HL_RL710002584 LockLock
-
HL_RL710001427 Wire SealWire Seal
-
HL_RL278002578 Female TerminalFemale Terminal
-
HO2S1710002466 HousingHousing
-
HO2S1710002469 LockLock
-
HO2S1278001482 SealSeal
-
HO2S1710000736 TerminalTerminal
-
HO2S1710002597 Gold TerminalGold Terminal
-
MG1710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MG1710000402 Wire SealWire Seal
-
MG1409012300 SealSeal
-
MG1409011300 Male TerminalMale Terminal
-
MG1EX710006273 ConnectorConnector
-
MG1EX710000402 Wire SealWire Seal
-
MG1EX409012100 Female TerminalFemale Terminal
-
MG2710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MG2710000402 Wire SealWire Seal
-
MG2409012300 SealSeal
-
MG2409012100 Female TerminalFemale Terminal
-
PF1415129856 Fuse Box Base Ass?yFuse Box Base Ass?y
-
PF1710000840 CapCap
-
PF1278000999 Wire SealWire Seal
-
PF1415128501 SealSeal
-
PF1515177009 Female TerminalFemale Terminal
-
PF1515177012 Female TerminalFemale Terminal
-
PF1_C710001026 Fuse CoverFuse Cover
-
PF1_C710006203 Logo, Fuse RelayLogo, Fuse Relay
-
PF1_C278002172 FoamFoam
-
PF1_C710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1_C710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF1_C278002389 Little FuseLittle Fuse
-
PF1_C710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF2710000992 ClipClip
-
PF2278001326 Fuse Holder CapFuse Holder Cap
-
PF2710001613 FuseFuse
-
PF2278001325 Fuse HolderFuse Holder
-
PF2710000113 Female TerminalFemale Terminal
-
REG710000879 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
REG710005830 LockLock
-
REG710001932 SealSeal
-
REG710001934 TerminalTerminal
-
RFID710001161 HousingHousing
-
RFID710001162 LockLock
-
RFID710001163 Wire SealWire Seal
-
RFID710001164 Female TerminalFemale Terminal
-
RL515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
RL710003896 Female TerminalFemale Terminal
-
RSS710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
RSS710000402 Wire SealWire Seal
-
RSS409011300 Male TerminalMale Terminal
-
RY1515176774 Relay, 30 AMPRelay, 30 AMP
-
RY2710001778 RelayRelay
-
RY3710001778 RelayRelay
-
RY5515176774 Relay, 30 AMPRelay, 30 AMP
-
RY6710001778 RelayRelay
-
SS409010300 Female TerminalFemale Terminal
-
SW1278001007 Insulated SheathInsulated Sheath
-
SW1710000421 Female TerminalFemale Terminal
-
SW2278001008 Insulated SheathInsulated Sheath
-
SW2278002261 Female TerminalFemale Terminal
-
SW4278000992 Open BarrelOpen Barrel
-
SWW278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
SWW278001065 Wire SealWire Seal
-
SWW278000223 Female TerminalFemale Terminal
-
TAS710001231 HousingHousing
-
TAS710005296 Lock 6 PositionsLock 6 Positions
-
TAS710001233 SealSeal
-
TAS710001224 TerminalTerminal
