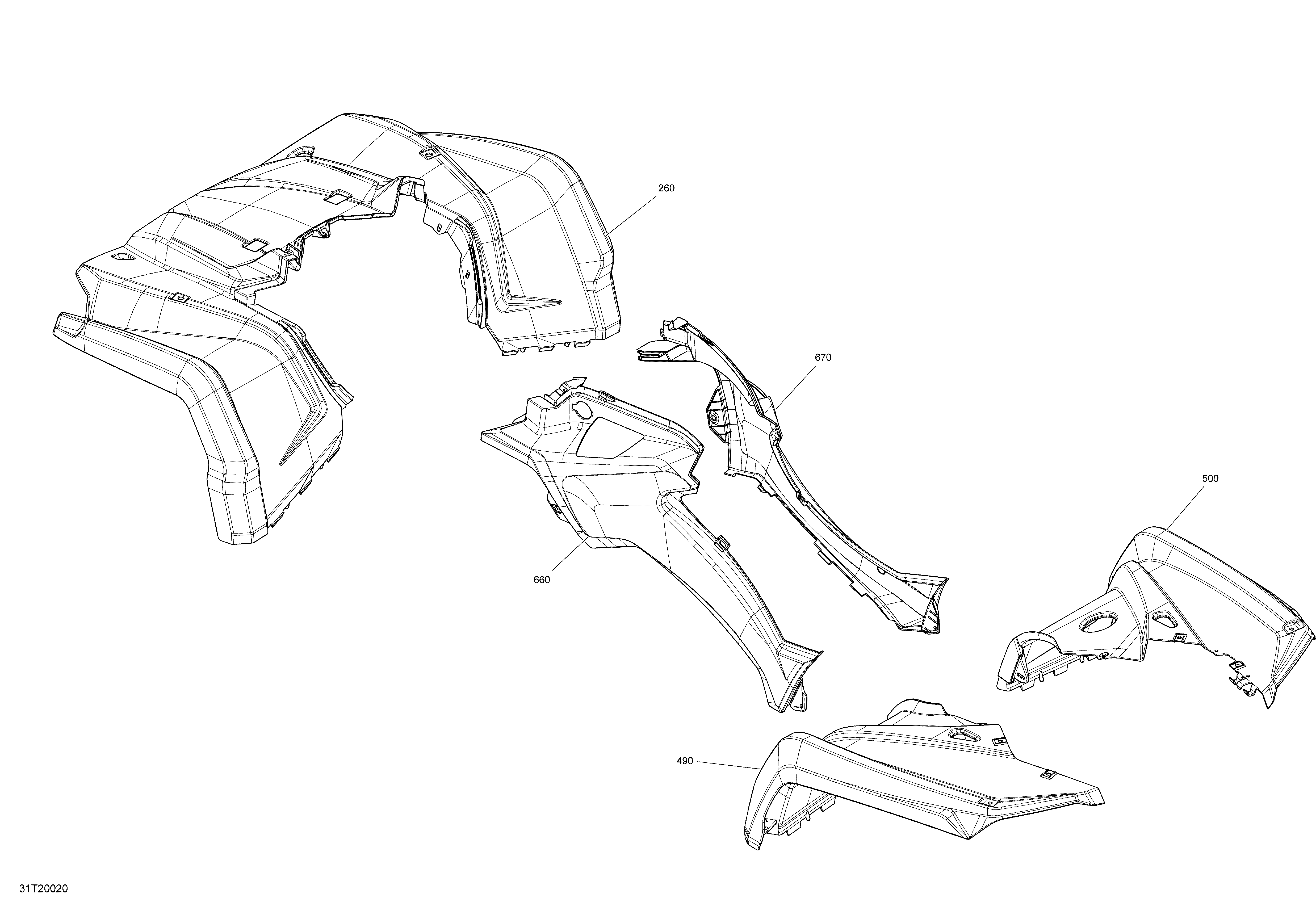

09- Fender Kit - Viper Red для BRP 003 - Outlander 570 EFI - STD - International - 2020
-
№АртикулНазвание
-
260715005909 Viper Red, Front FenderViper Red, Front Fender
-
490715005940 Viper Red, LH Rear FenderViper Red, LH Rear Fender
-
500715005975 Viper Red, RH Rear FenderViper Red, RH Rear Fender
-
660705005237 Viper Red, LH Lateral PannelViper Red, LH Lateral Pannel
-
670705009115 Viper Red, RH Lateral PanelViper Red, RH Lateral Panel
