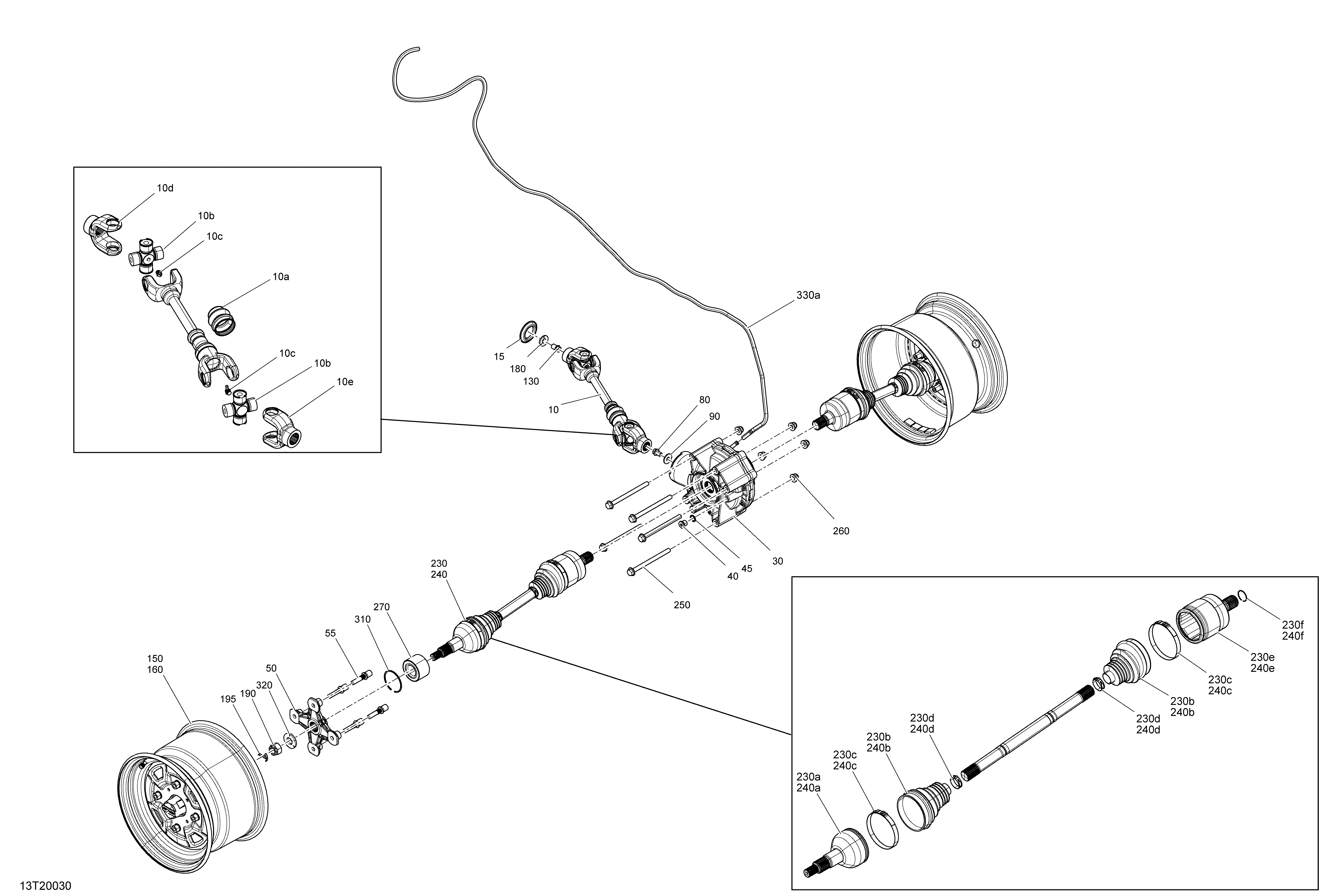

08- Rear Drive - Common Parts для BRP 006 - Outlander 570 EFI - XMR - International - 2020
-
№АртикулНазвание
-
10703500986 Shaft Ass'y KitShaft Ass'y Kit
-
10a715900118 Rubber BootRubber Boot
-
10b715900326 Universal Joint. Includes toUniversal Joint. Includes to
-
10c715900295 Grease FittingGrease Fitting
-
10d715900438 YokeYoke
-
10e715900500 YokeYoke
-
15705501123 ProtectorProtector
-
30703501019 Final Drive Unit. Includes 30 to 30tFinal Drive Unit. Includes 30 to 30t
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
55250300642 Wheel StudWheel Stud
-
80250001044 Screw-Hex.Flange M10 X 16 S.GRIPScrew-Hex.Flange M10 X 16 S.GRIP
-
90250200014 Flat Washer M10Flat Washer M10
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501486 RH Homocinetic JointRH Homocinetic Joint
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot Kit. Includes toBoot Kit. Includes to
-
230c715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230e705501780 Plunging JointPlunging Joint
-
230f705501781 CirclipCirclip
-
240705501485 LH Homocinetic JointLH Homocinetic Joint
-
240a705501776 CV JointCV Joint
-
240b705501864 Boot Kit. Includes toBoot Kit. Includes to
-
240c715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240d715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240e705501780 Plunging JointPlunging Joint
-
240f705501781 CirclipCirclip
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
