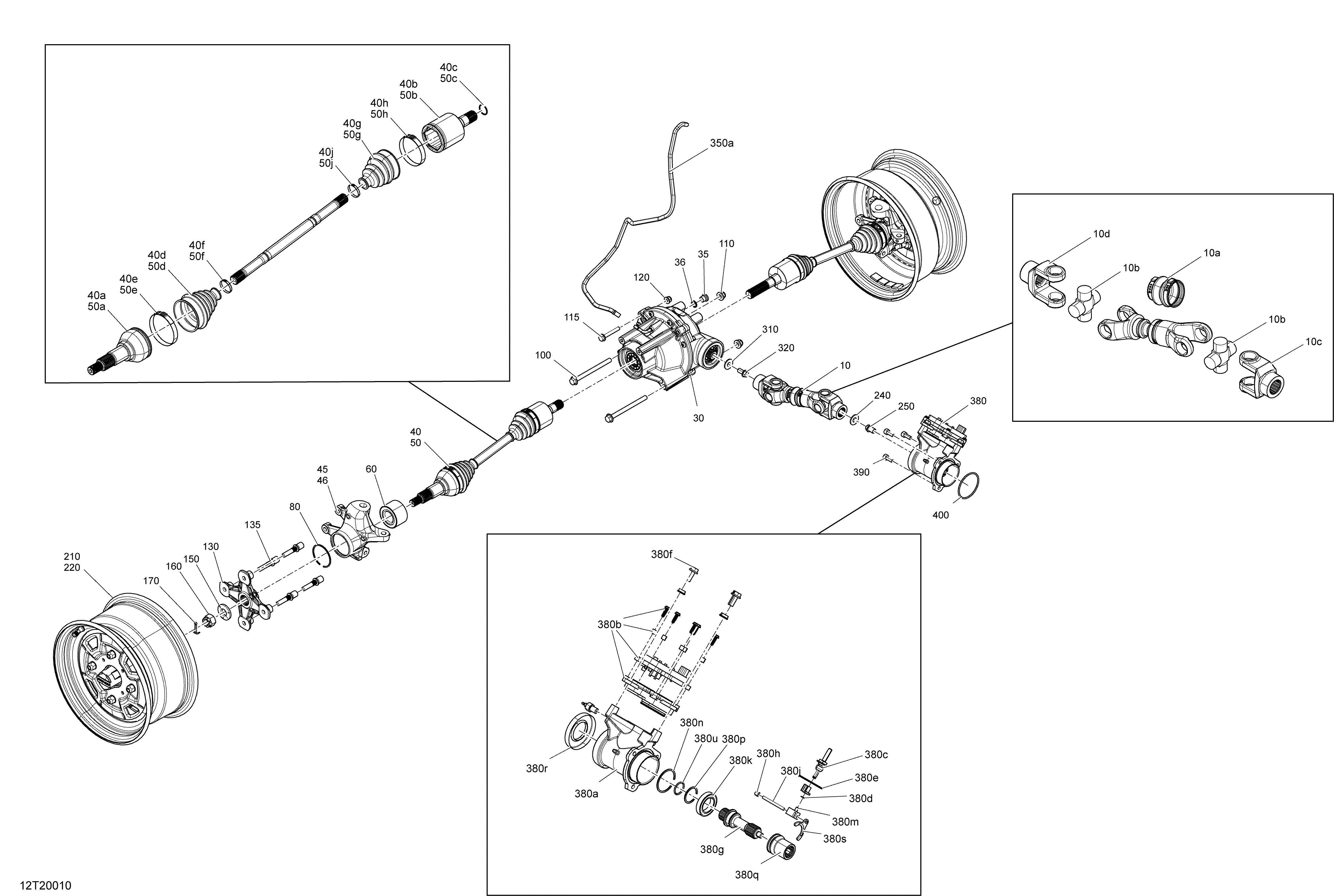

07- Front Drive - Common Parts для BRP 007 - Outlander MAX 450 EFI - International - 2020
-
№АртикулНазвание
-
10705402065 Front Drive Axle Ass'yFront Drive Axle Ass'y
-
10a715900118 Rubber BootRubber Boot
-
10b715900435 U-Joint Cross KitU-Joint Cross Kit
-
10c715900497 Fixed Yoke JointFixed Yoke Joint
-
10d715900498 Yoke JointYoke Joint
-
30703500907 Front Differential. Package STD. Includes 30 to 30yFront Differential. Package STD. Includes 30 to 30y
-
30703500908 Front Differential. Package DPS. Includes 30 to 30yFront Differential. Package DPS. Includes 30 to 30y
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401428 RH Front half shaftRH Front half shaft
-
40a715900297 CV JointCV Joint
-
40b715900300 RH Plunging CV JointRH Plunging CV Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d715900298 CV Boot Kit, Wheel Side. Includes toCV Boot Kit, Wheel Side. Includes to
-
40e715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g715900299 CV Boot Kit, Differential Side. Includes toCV Boot Kit, Differential Side. Includes to
-
40h715900318 Oetiker Clamp, LargeOetiker Clamp, Large
-
40j715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
50705401429 LH Front half shaftLH Front half shaft
-
50a715900297 CV JointCV Joint
-
50b715900301 LH Plunging CV JointLH Plunging CV Joint
-
50c705401349 Circlip JointCirclip Joint
-
50d715900298 CV Boot Kit, Wheel Side. Includes toCV Boot Kit, Wheel Side. Includes to
-
50e715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
50g715900299 CV Boot Kit, Differential Side. Includes toCV Boot Kit, Differential Side. Includes to
-
50h715900318 Oetiker Clamp, LargeOetiker Clamp, Large
-
50j715900317 Oetiker Clamp, SmallOetiker Clamp, Small
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
135250300642 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
310250200014 Flat Washer M10Flat Washer M10
-
320250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
350a293830193 Polyurethane HosePolyurethane Hose
-
380a705402360 Machined HousingMachined Housing
-
380b705402090 Actuator Ass'y. Includes 380b to 380eActuator Ass'y. Includes 380b to 380e
-
380c705400274 ForkFork
-
380d293370042 CirclipCirclip
-
380e293300117 O-RingO-Ring
-
380f250000137 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
380g705401509 Idler Shaft GearIdler Shaft Gear
-
380h206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
380j250400025 Dowell PinDowell Pin
-
380k705400249 Ball BearingBall Bearing
-
380m705402139 SliderSlider
-
380n293370029 CirclipCirclip
-
380p293370030 CirclipCirclip
-
380q705400389 Coupling SleeveCoupling Sleeve
-
380r293250348 Oil SealOil Seal
-
380s705401553 Shifter Lever PlateShifter Lever Plate
-
380u293300179 O-ringO-ring
-
390250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
400293300091 O-RingO-Ring
