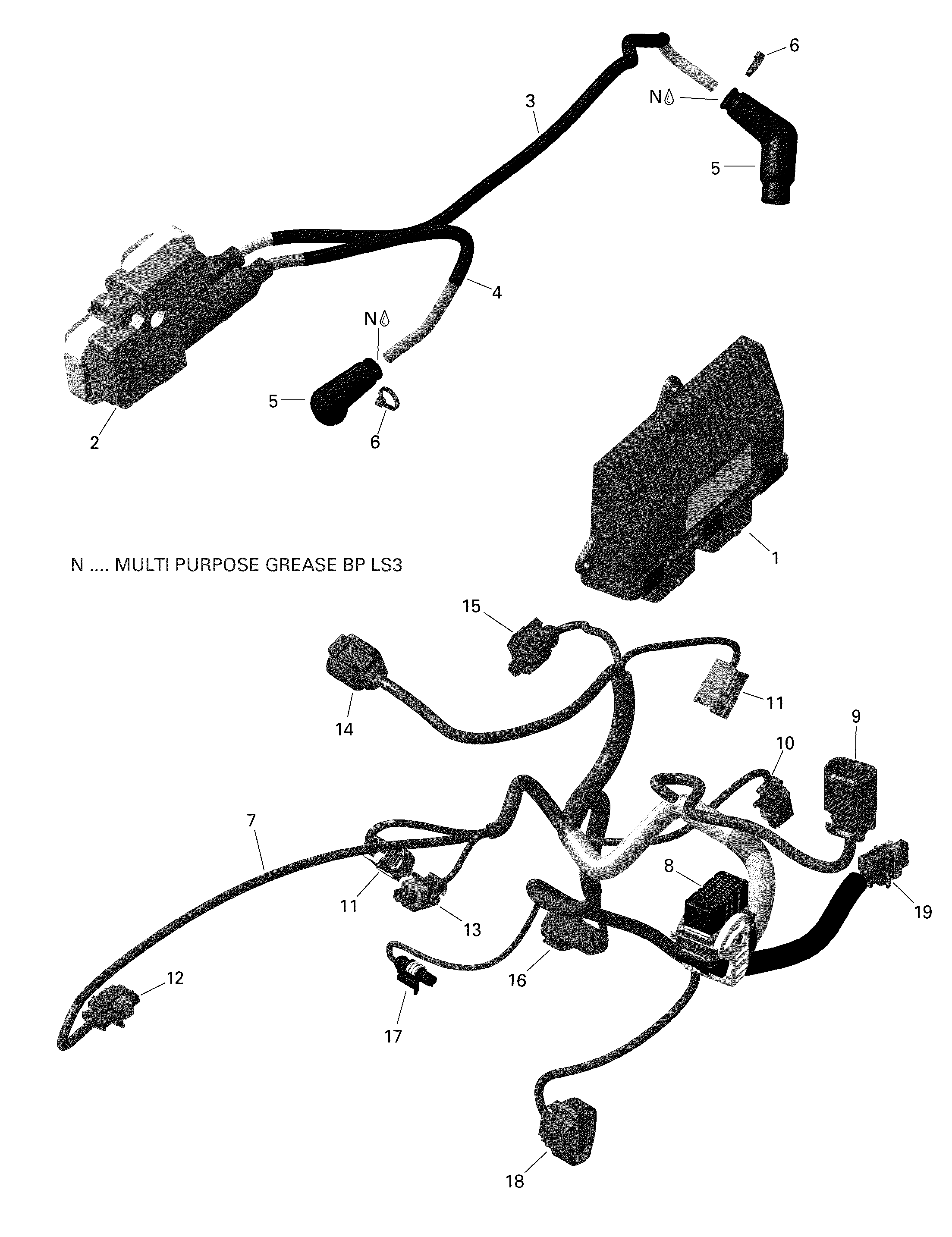

10- Engine Harness And Electronic Module - V4 для BRP 001 - Outlander 650 EFI - PRO - International - European Communities - 2020
-
№АртикулНазвание
-
1420464124 ECU ModuleECU Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420464166 Ignition Cable 570MM PTOIgnition Cable 570MM PTO
-
4420464155 Ignition Cable 315MM MAGIgnition Cable 315MM MAG
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>18420265952 HarnessHarness
-
9710001927 HousingHousing
-
10278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15515176410 Male ConnectorMale Connector
-
16278002378 Male HousingMale Housing
-
17278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
18710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
