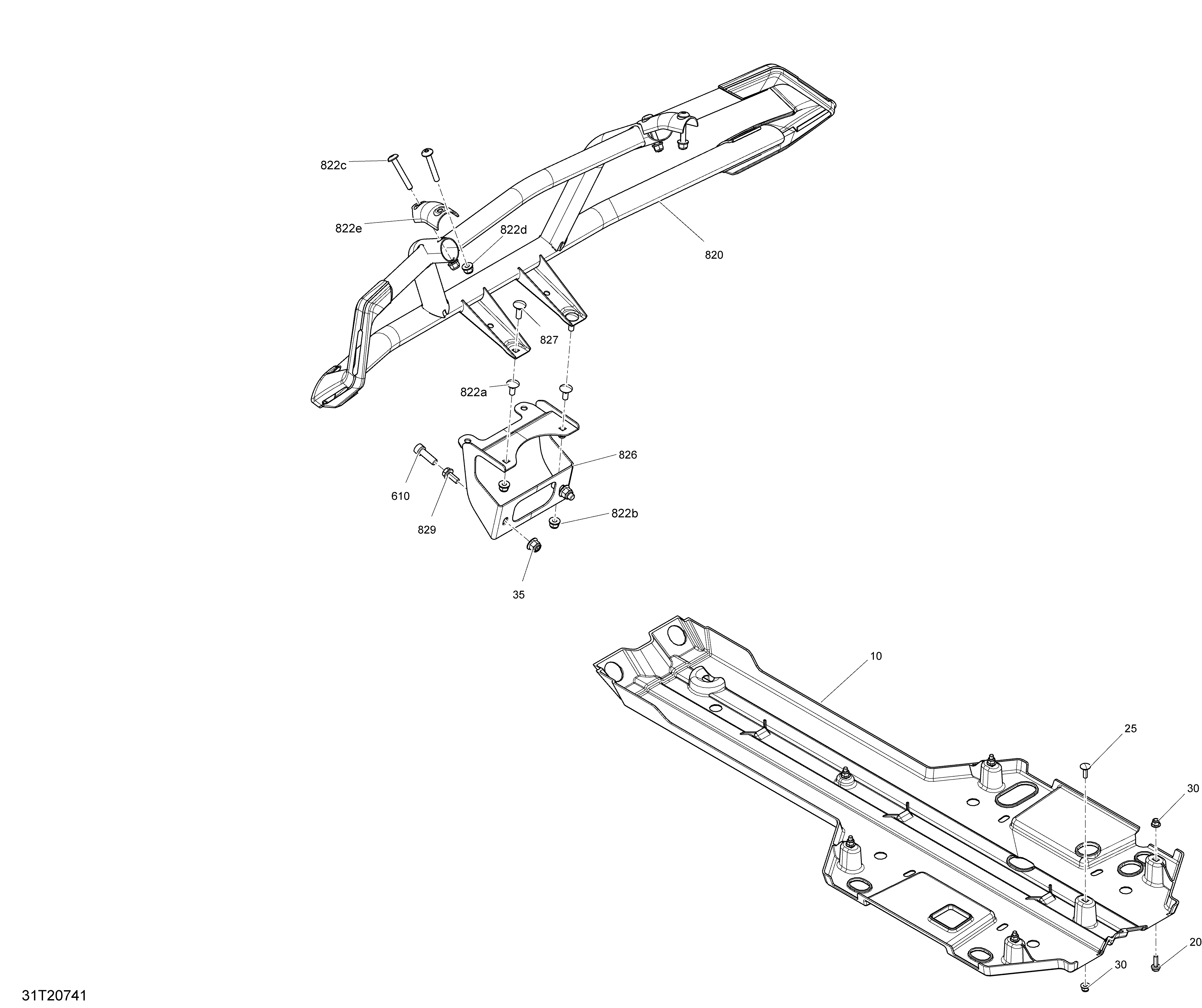

09- Body - Front Bumper And Skid Plate - Granite Grey для BRP 004 - Outlander 650 EFI - XMR - International - 2020
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
820705014417 Manta Green, Front BumperManta Green, Front Bumper
-
826705012722 Bumper SupportBumper Support
-
827207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
829207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
822a207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
822b233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
822c250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
822d233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
822e705008574 Manta Green Upper BracketManta Green Upper Bracket
