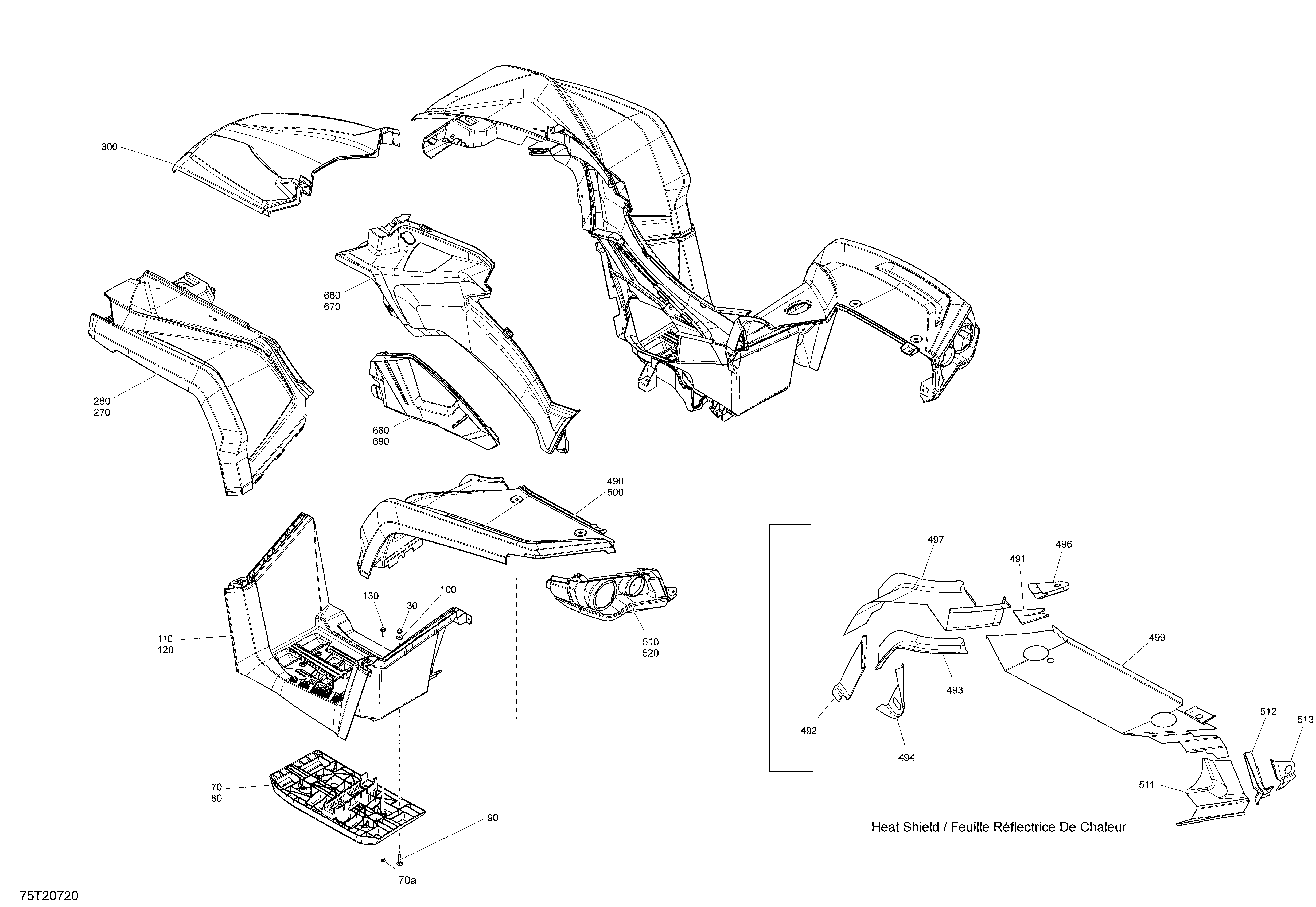

09- Body - Fenders And Lateral Panels - Mineral Gray Satin для BRP 005 - Outlander 1000R EFI - XT - International - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural FootboardLH Structural Footboard
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural FootboardRH Structural Footboard
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007039 RH FootrestRH Footrest
-
130207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
260715006932 Mineral Gray Satin, LH Front FenderMineral Gray Satin, LH Front Fender
-
270715006948 Mineral Gray Satin, RH Front FenderMineral Gray Satin, RH Front Fender
-
300715006990 Mineral Gray Satin, HoodMineral Gray Satin, Hood
-
490715006963 Mineral Gray Satin, LH Rear FenderMineral Gray Satin, LH Rear Fender
-
491707002456 Heat ShieldHeat Shield
-
492707002457 Heat ShieldHeat Shield
-
493707002458 Heat ShieldHeat Shield
-
494707002459 Heat ShieldHeat Shield
-
496707002461 Heat ShieldHeat Shield
-
497707002462 Heat ShieldHeat Shield
-
499707002464 Heat ShieldHeat Shield
-
500715006969 Mineral Gray Satin, RH Rear FenderMineral Gray Satin, RH Rear Fender
-
510705006643 LH Rear FaciaLH Rear Facia
-
511707002103 Heat ShieldHeat Shield
-
512707002107 Heat ShieldHeat Shield
-
513707002594 Heat ShieldHeat Shield
-
520705006650 RH Rear FaciaRH Rear Facia
-
660705014484 Mineral Gray Satin, LH Panel CentralMineral Gray Satin, LH Panel Central
-
670705014485 Mineral Gray Satin, RH Panel CentralMineral Gray Satin, RH Panel Central
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
