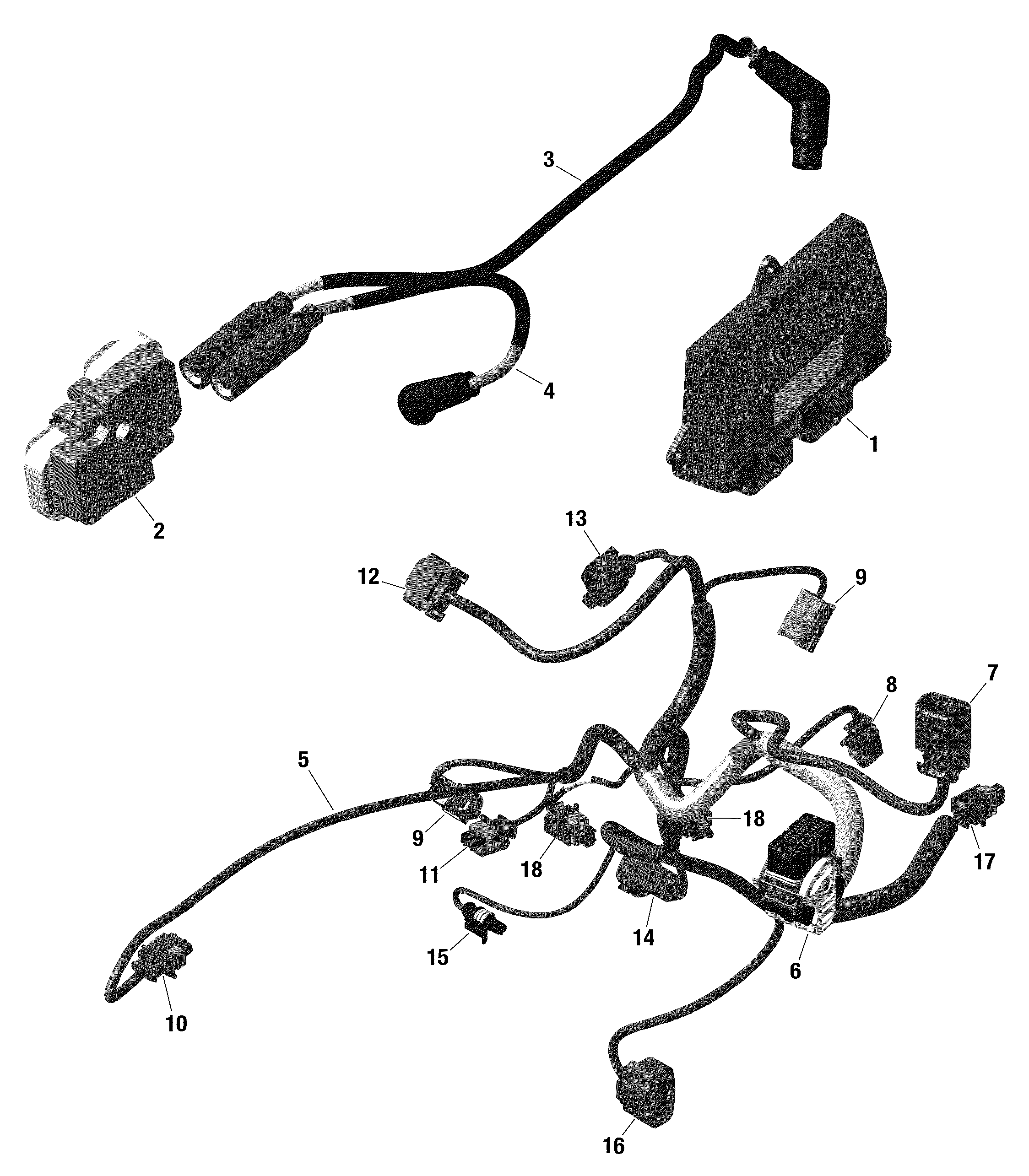

10- Engine Harness And Electronic Module - 315 для BRP 006 - Outlander 1000R EFI - XXC - International - 2020
-
№АртикулНазвание
-
1420464112 ECU ModuleECU Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420464166 Ignition Cable 570MM PTOIgnition Cable 570MM PTO
-
4420464155 Ignition Cable 315MM MAGIgnition Cable 315MM MAG
-
5420265020 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>23420664554 Wiring HarnessWiring Harness
-
9710001227 HousingHousing
-
10710001927 HousingHousing
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12515176129 Female HousingFemale Housing
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
16515176410 Male ConnectorMale Connector
-
18278002378 Male HousingMale Housing
-
19278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21278001007 Insulated SheathInsulated Sheath
-
22278001007 Insulated SheathInsulated Sheath
