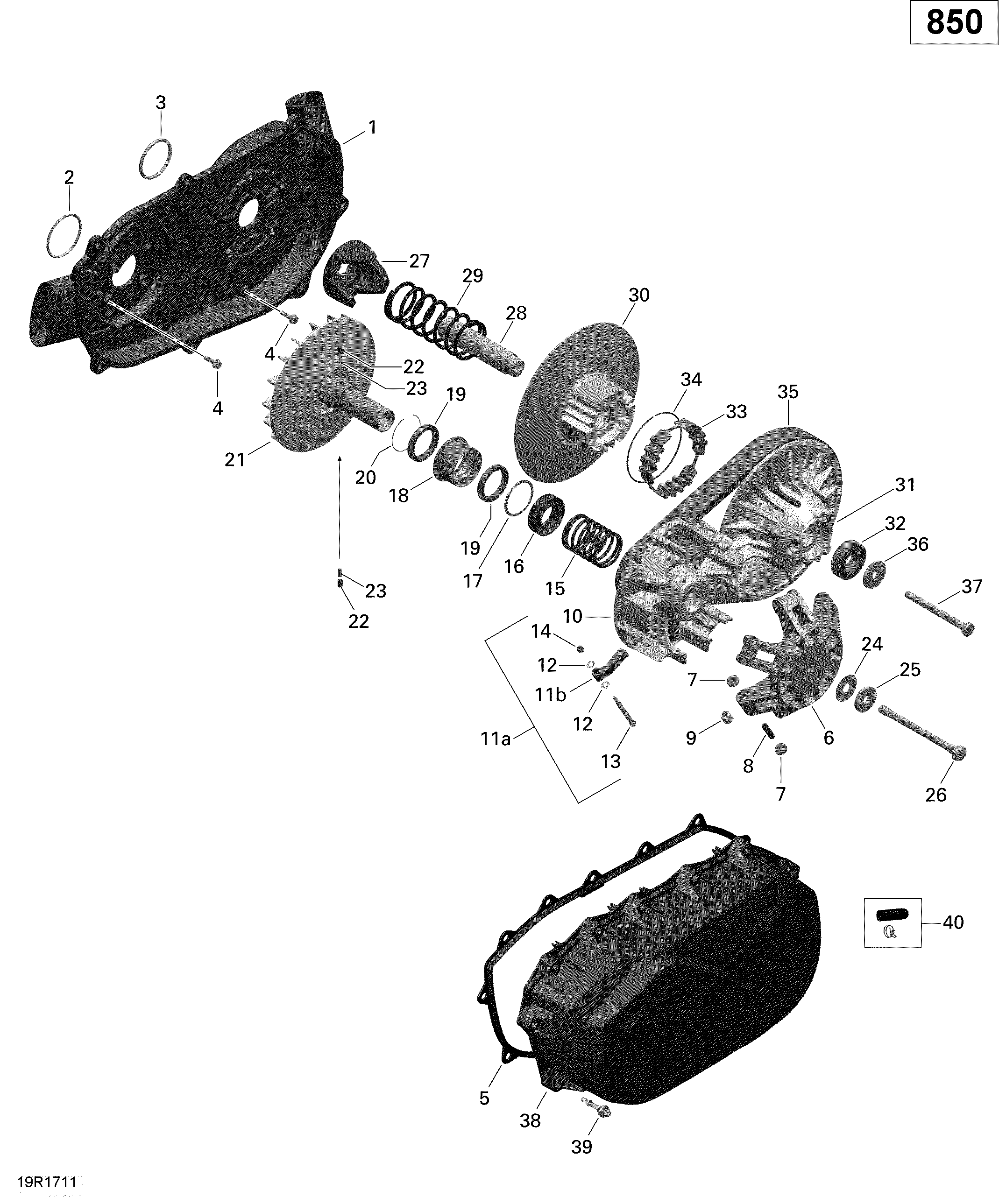

05- Transmission - 850 EFI (Outlander MAX) для BRP 011 - Outlander MAX 850 EFI - International - 2020
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420430126 GasketGasket
-
6420280522 Governor Cup Ass'y. Includes 6 to 9Governor Cup Ass'y. Includes 6 to 9
-
7420281296 Slider Shoe SetSlider Shoe Set
-
8417223257 Roller AxleRoller Axle
-
9417223767 RollerRoller
-
10420280467 Outher HaftOuther Haft
-
11a420248681 Centrifugal Lever Kit. Includes 11a to 14Centrifugal Lever Kit. Includes 11a to 14
-
15420238617 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
16420627577 Spring SeatSpring Seat
-
17420460430 Friction WasherFriction Washer
-
18420257195 Drive Pulley ClutchDrive Pulley Clutch
-
19420632375 Ball BearingBall Bearing
-
20420245951 Retaining RingRetaining Ring
-
21420280374 Inner HalfInner Half
-
22420229577 Spring SleeveSpring Sleeve
-
23420239134 SpringSpring
-
24420627920 Thrust WasherThrust Washer
-
25420627765 Spring WasherSpring Washer
-
26420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
27420280700 CamCam
-
28420220914 Driven Pulley ShaftDriven Pulley Shaft
-
29420638040 Compression SpringCompression Spring
-
30420280238 Inner Half Ass'yInner Half Ass'y
-
31420280178 Outer Half Pulley Ass'y. Includes 31 to 34Outer Half Pulley Ass'y. Includes 31 to 34
-
32420932421 Ball BearingBall Bearing
-
33420660124 Torque GearTorque Gear
-
34420245911 Retaining RingRetaining Ring
-
35715000302 V-BeltV-Belt
-
36420627590 Thrust WasherThrust Washer
-
37420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
38420611395 Variator CoverVariator Cover
-
39420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
40707001179 Drain Plug KitDrain Plug Kit
-
41420244211 Washer. Winter PackageWasher. Winter Package
-
42420842041 Lock Nut M6. Winter PackageLock Nut M6. Winter Package
