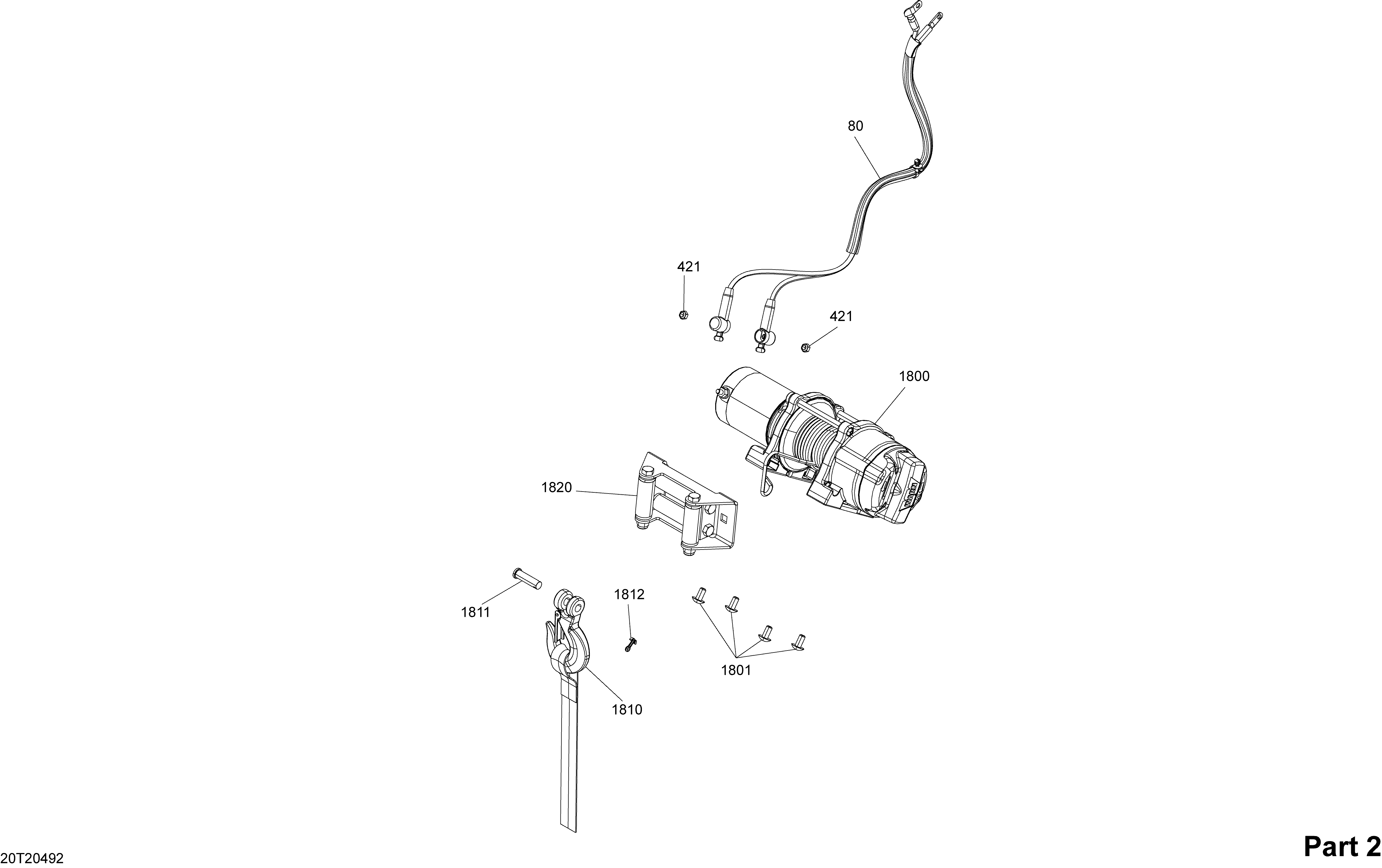

10- Electrical System - Section 2 для BRP 005 - Renegade 1000R EFI - XMR - International - European Communities - 2020
-
№АртикулНазвание
-
80710005164 Winch CableWinch Cable
-
421232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
1800705008546 WinchWinch
-
1801250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
1810715003523 Hook and Strap kitHook and Strap kit
-
1811250400021 Clevis PinClevis Pin
-
1812250400022 Cotter PinCotter Pin
-
1820715000011 Winch RollerWinch Roller
