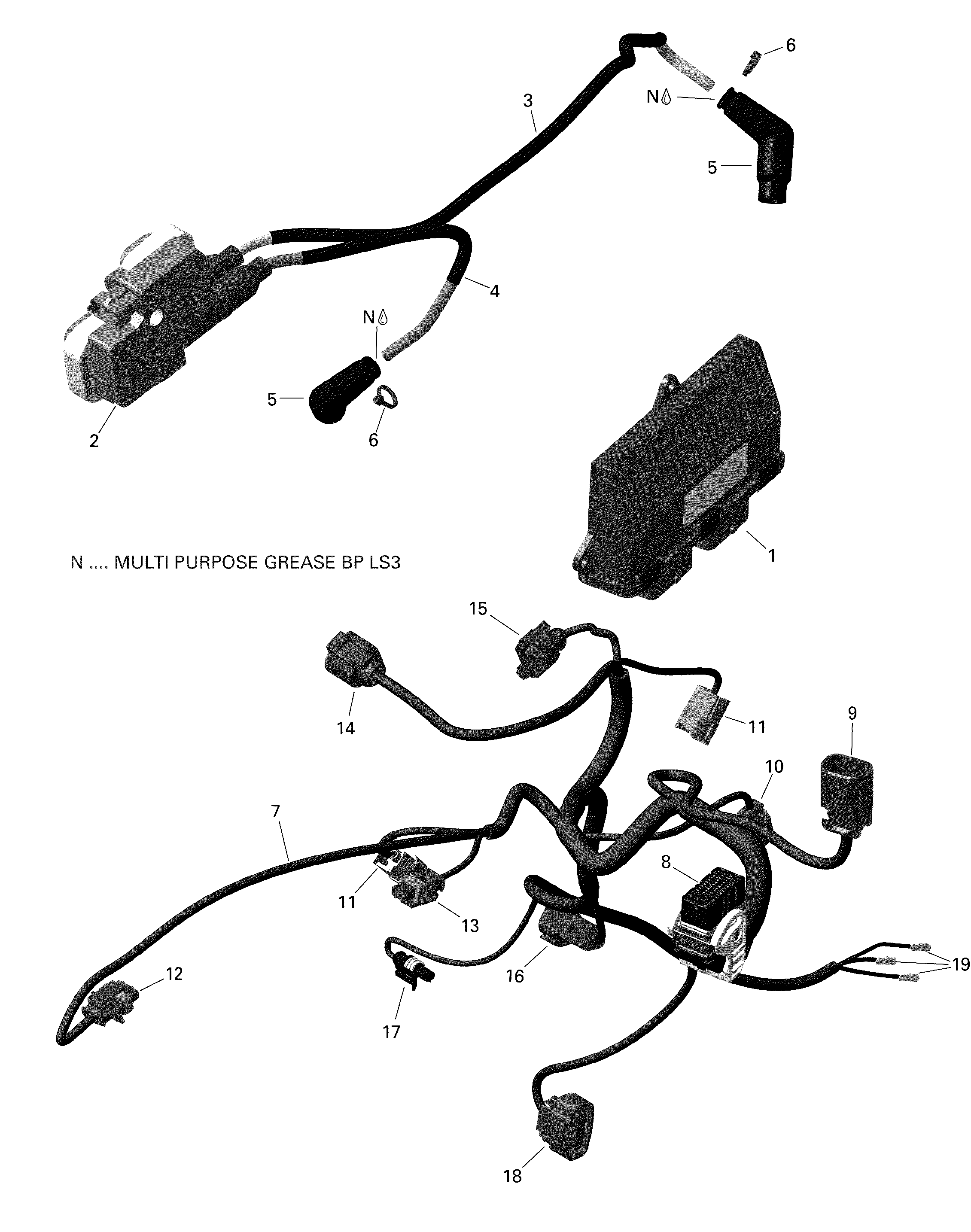

10- Engine Harness And Electronic Module 450 & 570 для BRP 002 - Outlander T 570 EFI - STD_DPS_PRO - T Regulation - 2020
-
№АртикулНазвание
-
1420464123 ECU ModuleECU Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420464166 Ignition Cable 570MM PTOIgnition Cable 570MM PTO
-
4420464155 Ignition Cable 315MM MAGIgnition Cable 315MM MAG
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>18420265953 HarnessHarness
-
9710001927 HousingHousing
-
10278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15515176410 Male ConnectorMale Connector
-
16278002378 Male HousingMale Housing
-
17278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
18710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
19415130049 TerminalTerminal
