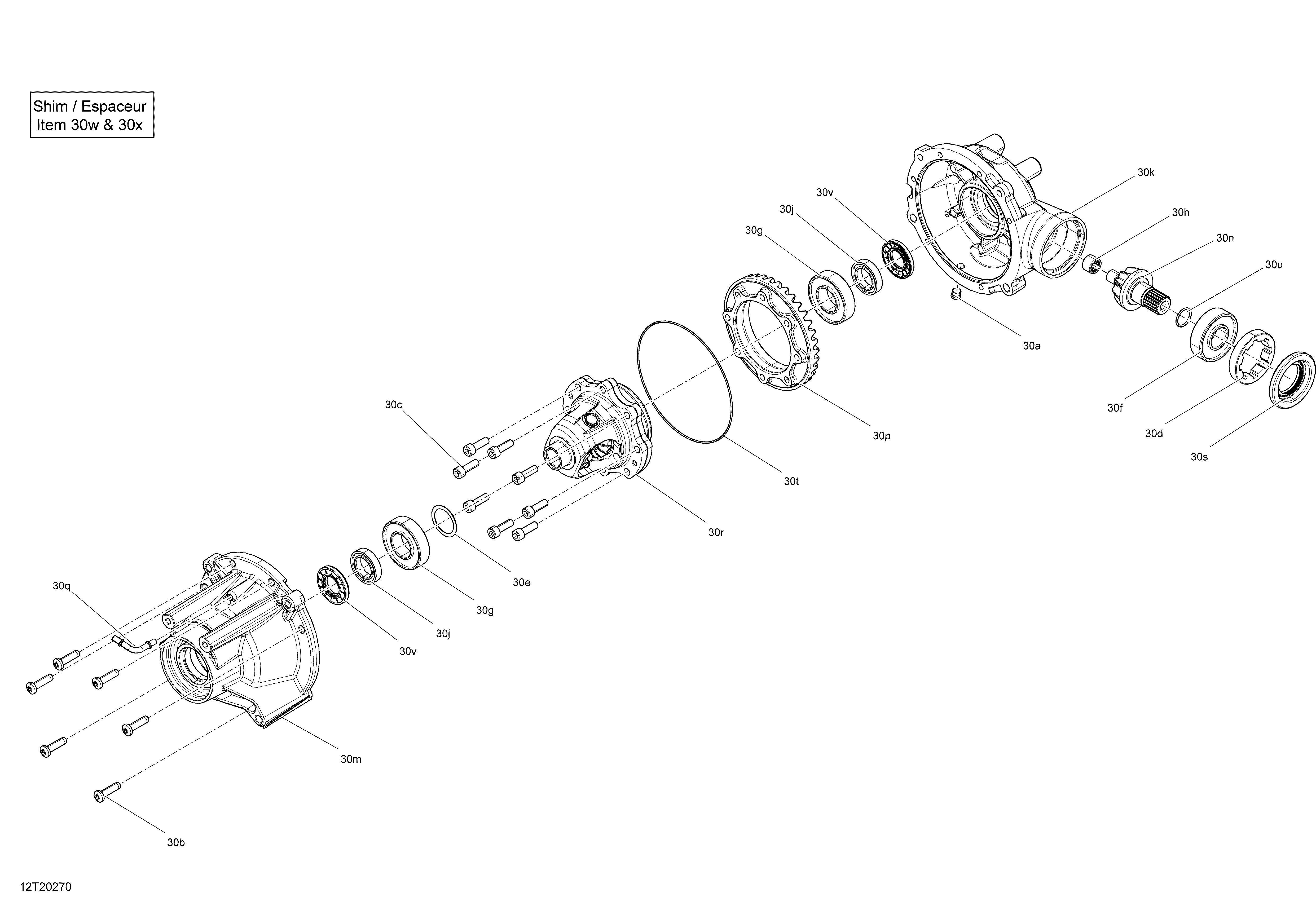

07- Front Drive - Differential Parts для BRP 004 - Outlander T MAX 450 EFI - DPS - T Regulation - 2020
-
№АртикулНазвание
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401792 Front Cover, PinionFront Cover, Pinion
-
30m705401610 Front CoverFront Cover
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30q705401613 Vent ValveVent Valve
-
30r705402128 DifferentialDifferential
-
30s705401615 Oil SealOil Seal
-
30t705401616 SealSeal
-
30u705401617 O'RingO'Ring
-
30v705401618 GasketGasket
-
30w705401769 Shim. Not ShownShim. Not Shown
-
30x705401770 Shim. Not ShownShim. Not Shown
