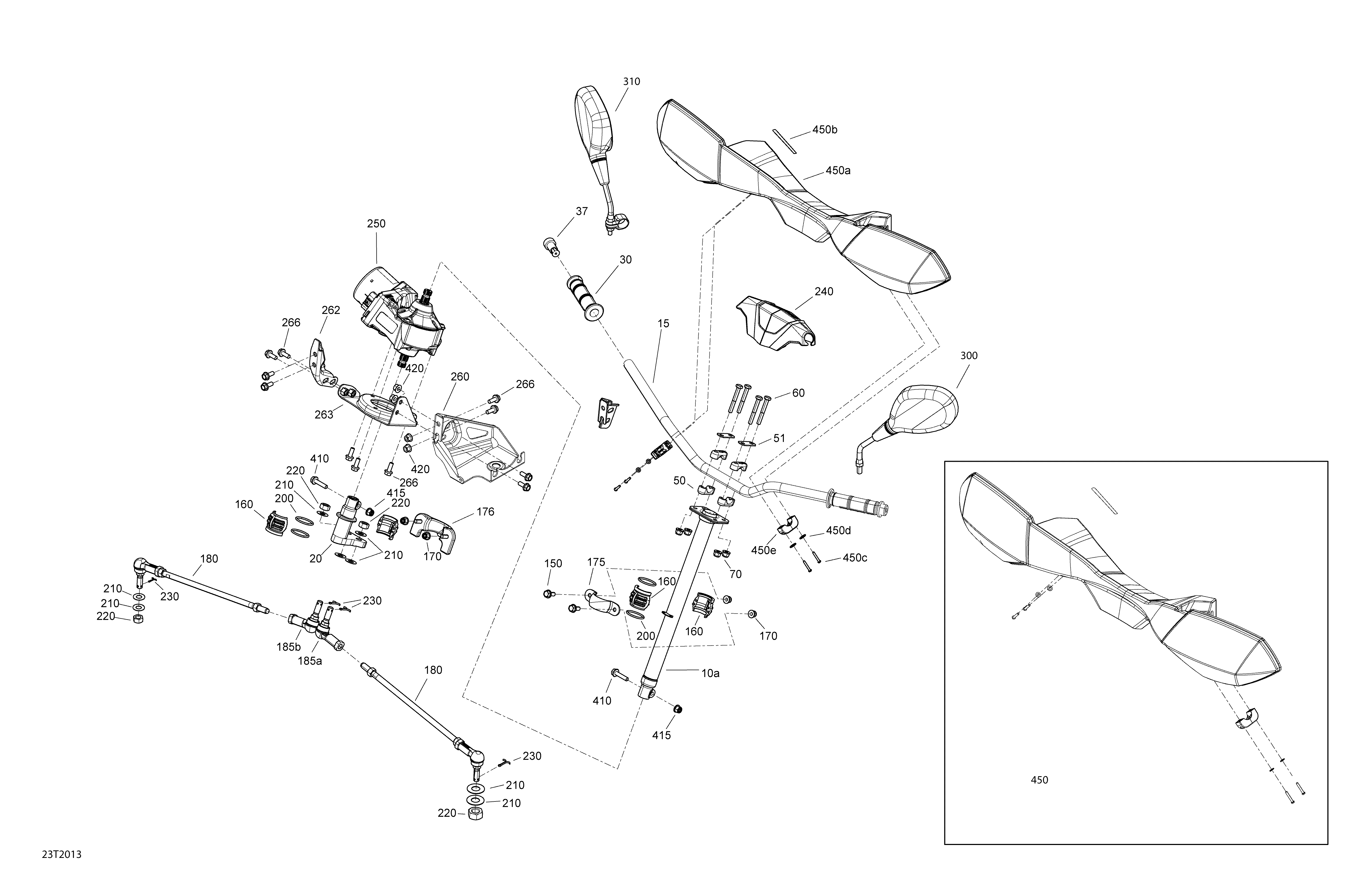

07- Steering для BRP 005 - Outlander T MAX 570 EFI - DPS_XT - T Regulation - 2020
-
№АртикулНазвание
-
10a709401750 Black, Upper Main Tube. Package DPSBlack, Upper Main Tube. Package DPS
-
15709401240 Black, Handle BarBlack, Handle Bar
-
20709401748 Pitman ArmPitman Arm
-
30709400493 Handle GripHandle Grip
-
37709400449 End PieceEnd Piece
-
50709401799 Steering SupportSteering Support
-
51709400509 StiffnerStiffner
-
60207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
155207682534 Hex. Flanged Screw M8 X 25. Not ShownHex. Flanged Screw M8 X 25. Not Shown
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501038 Rod-Tie Ass`y. Includes 180 to 180aRod-Tie Ass`y. Includes 180 to 180a
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 CoverCover
-
250709402230 Power Steering. Package DPSPower Steering. Package DPS
-
260709402192 Power Steering Module Bracket. Package DPSPower Steering Module Bracket. Package DPS
-
262709402185 RH Bracket. Package DPSRH Bracket. Package DPS
-
263709401743 Power Steering Support. Package DPSPower Steering Support. Package DPS
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package DPSHex. Flanged Screw M8 X 20, Scotch Grip. Package DPS
-
300709400406 LH MirrorLH Mirror
-
310709400407 RH MirrorRH Mirror
-
410250000986 Hex. Flanged Screw M8 X 35. Package DPSHex. Flanged Screw M8 X 35. Package DPS
-
415233281416 Hex. Elastic Flanged Nut M8. Package DPSHex. Elastic Flanged Nut M8. Package DPS
-
420233081416 Hex. Flanged Nut M8. Package DPSHex. Flanged Nut M8. Package DPS
-
450703100352 Handle Guard Ass'y, XT. Package XT. Includes 450 to 450eHandle Guard Ass'y, XT. Package XT. Includes 450 to 450e
-
450a709400822 Handle Bar Protector. Package XTHandle Bar Protector. Package XT
-
450b704902966 DPS Decal. Package XTDPS Decal. Package XT
-
450c241142560 Hex. Flanged Screw K40 X 25. Package XTHex. Flanged Screw K40 X 25. Package XT
-
450d211200035 Flat Washer. Package XTFlat Washer. Package XT
-
450e517303264 U-Clamp. Package XTU-Clamp. Package XT
