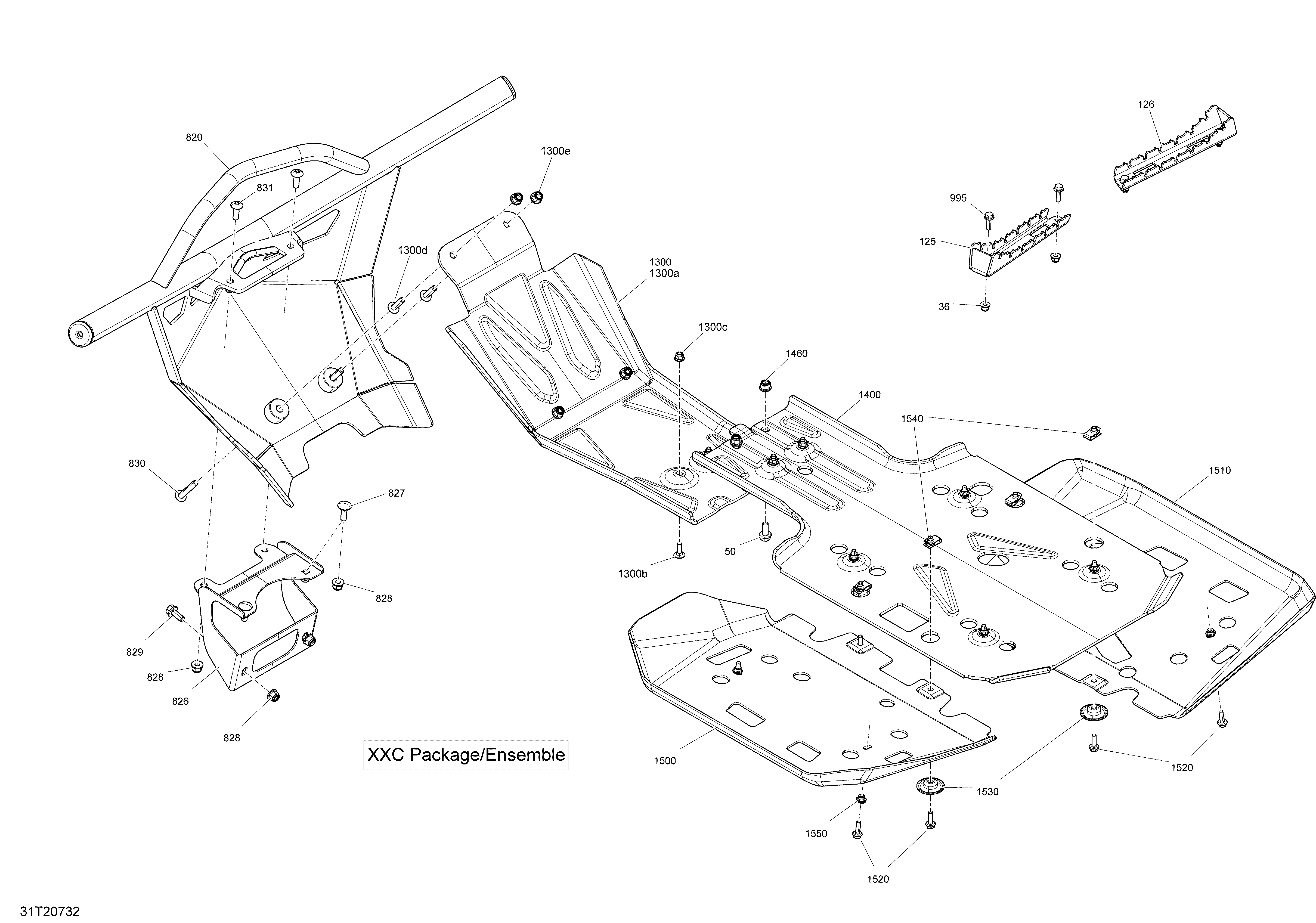

09- Body - Front Bumper And Skid Plate - XXC для BRP 002 - Outlander T 1000 EFI - T Regulation - 2020
-
№АртикулНазвание
-
36233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
125705004352 LH FootrestLH Footrest
-
126705005395 RH FootrestRH Footrest
-
820705014416 Hyper Silver, Front Bumper. XXC Int'lHyper Silver, Front Bumper. XXC Int'l
-
820715005863 Front Bumper Kit. XXCFront Bumper Kit. XXC
-
826705012722 Bumper SupportBumper Support
-
827207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
828233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
829207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
830250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
831250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
995207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300715000926 Front Skid Plate. Includes 1300 to 1300eFront Skid Plate. Includes 1300 to 1300e
-
1300a704904566 CAN-AM DecalCAN-AM Decal
-
1300b207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
1300c233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1300d250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
1300e233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1400705204031 Central Skid PlateCentral Skid Plate
-
1460233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500705010659 LH Skid PlateLH Skid Plate
-
1510705010660 RH Skid PlateRH Skid Plate
-
1520207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1530705007171 CupCup
-
1540250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1550250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
