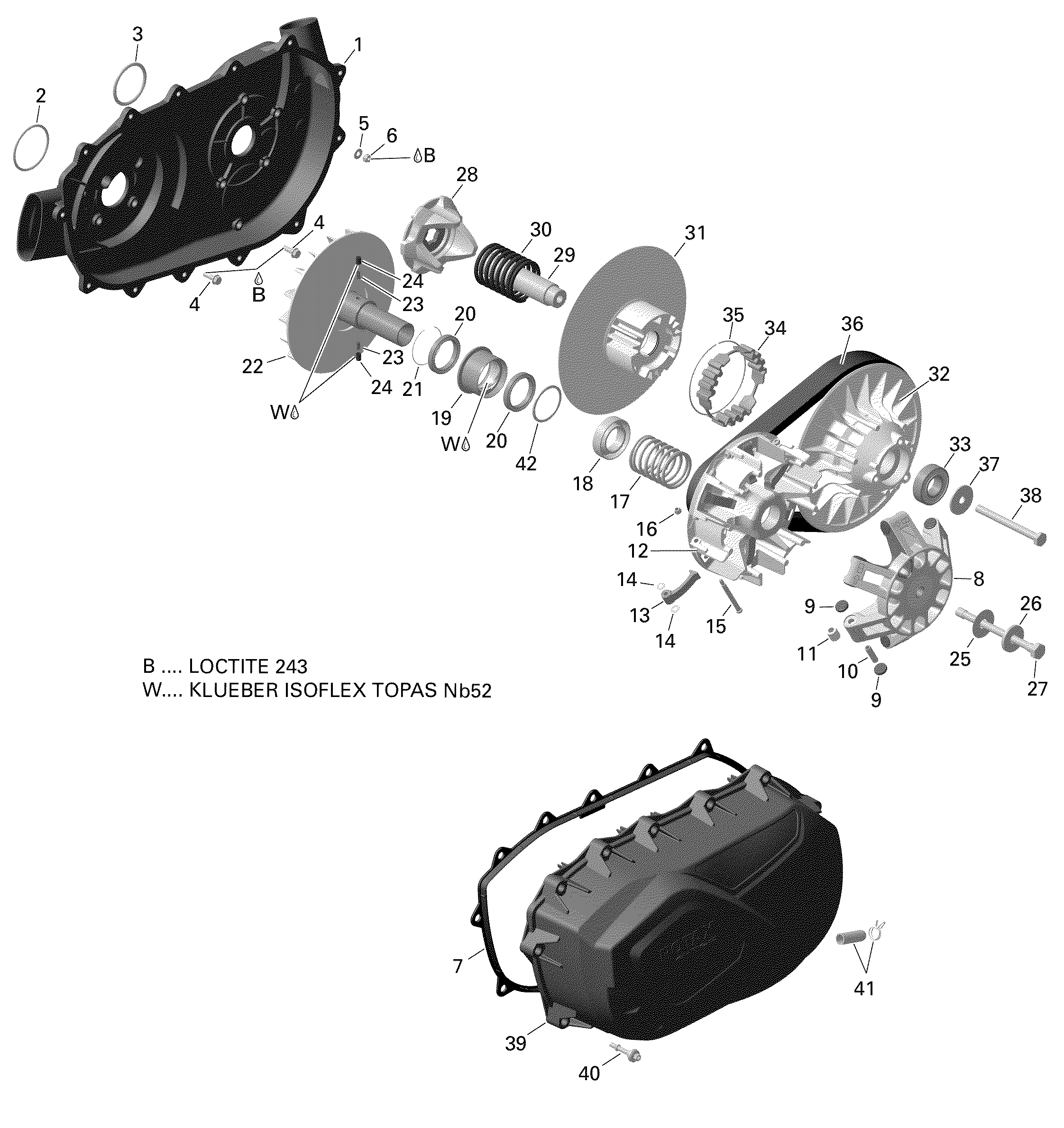

05- Transmission для BRP 003 - Outlander T MAX 570 EFI - PRO+ - T Regulation - 2020
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420244211 Washer. OptionalWasher. Optional
-
6420842041 Washer. OptionalWasher. Optional
-
7420430126 GasketGasket
-
8>11420280522 Governor Cup Ass'yGovernor Cup Ass'y
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223767 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13>16420248558 Centrifugal Lever SetCentrifugal Lever Set
-
17420238610 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
18420627577 Spring SeatSpring Seat
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
20420632375 Ball BearingBall Bearing
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641859 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
28420280199 Driven Pulley CamDriven Pulley Cam
-
29420220913 Driven Pulley ShaftDriven Pulley Shaft
-
30420238176 Compression SpringCompression Spring
-
31420248233 Inner Half Ass'yInner Half Ass'y
-
32>33420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
33420932421 Ball BearingBall Bearing
-
34420660124 Torque GearTorque Gear
-
35420245911 Retaining RingRetaining Ring
-
36715000302 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
39420611395 Variator CoverVariator Cover
-
40420440568 Hex Screw M6 X 30Hex Screw M6 X 30
-
41707001179 Drain Plug KitDrain Plug Kit
-
42420460430 Friction Washer. OptionalFriction Washer. Optional
