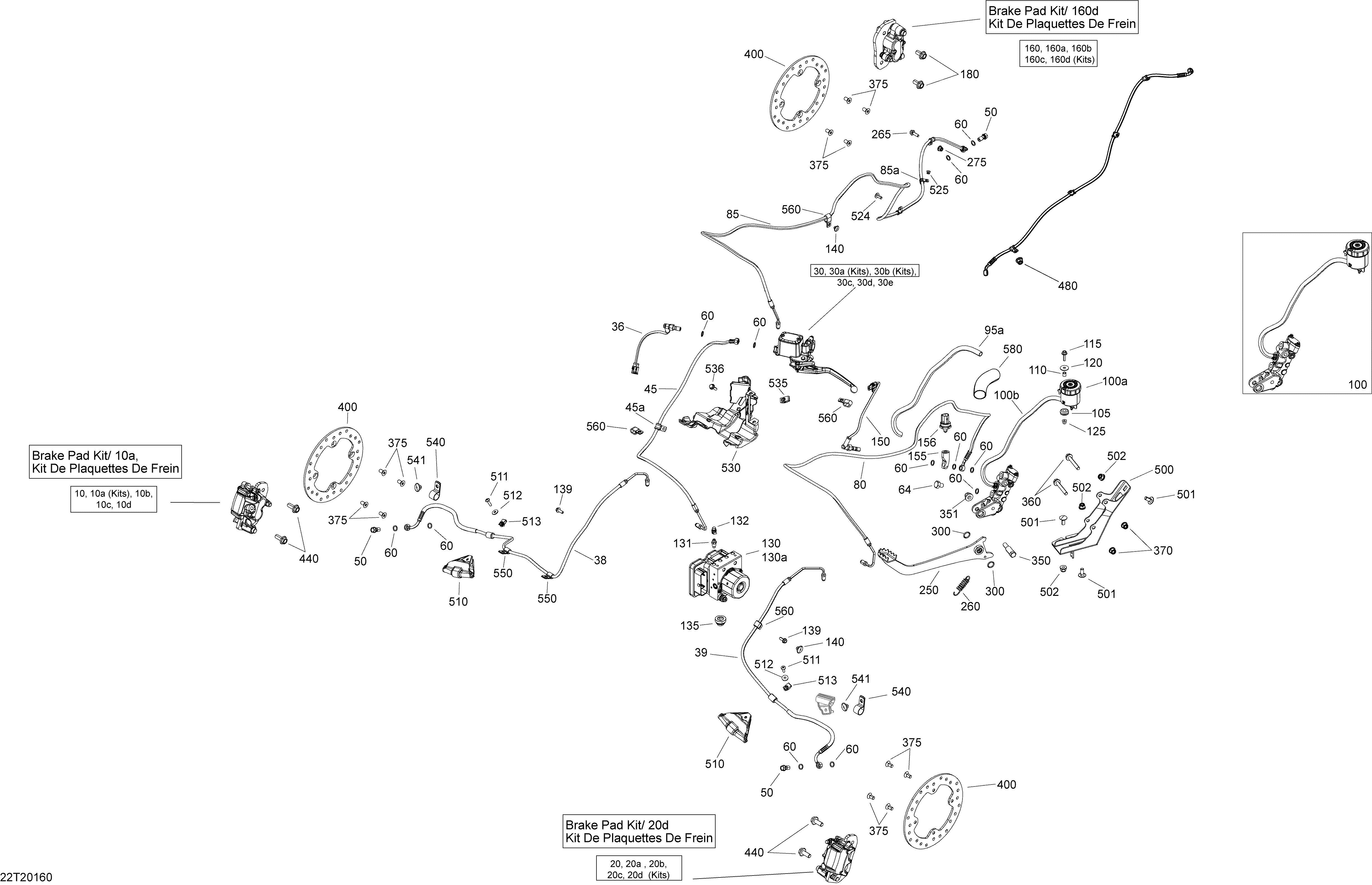

06- Brakes для BRP 005 - Outlander T MAX 1000 EFI - XTP - T Regulation - 2020
-
№АртикулНазвание
-
10705600861 RH Front Caliper Ass'y. Includes 10 to 10dRH Front Caliper Ass'y. Includes 10 to 10d
-
10a705601014 RH Brake Pad KitRH Brake Pad Kit
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
20705600862 LH Front Caliper Ass'y. Includes 20 to 20dLH Front Caliper Ass'y. Includes 20 to 20d
-
20a705601016 Pin SetPin Set
-
20b705601017 Bleeding ScrewBleeding Screw
-
20c705601018 SpringSpring
-
20d705601015 LH Brake Pad KitLH Brake Pad Kit
-
30705601431 LH Front Master Cylinder Ass'yLH Front Master Cylinder Ass'y
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw Kit. Includes toClamp And Screw Kit. Includes to
-
30c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30d219800096 Cap Set. Includes toCap Set. Includes to
-
30e415129356 Screw M4 X 20Screw M4 X 20
-
36705601669 Brake SwitchBrake Switch
-
38705601688 RH Brake LineRH Brake Line
-
39705601689 LH Brake LineLH Brake Line
-
45705601574 Brake HoseBrake Hose
-
45a293650256 ClampClamp
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper Washer. OUT-MAX<>P-XMRCopper Washer. OUT-MAX<>P-XMR
-
64250000163 Hex. Screw M10 X 14, Scotch GripHex. Screw M10 X 14, Scotch Grip
-
80705601575 Brake HoseBrake Hose
-
85705601577 RH Rear HoseRH Rear Hose
-
85a293650256 ClampClamp
-
95a415079900 Tubing 10 mmTubing 10 mm
-
100705601274 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
130703500984 VCM ModuleVCM Module
-
130a710003279 Damper ShockDamper Shock
-
131705600502 Bleeder ScrewBleeder Screw
-
132705601190 Bleeder Bolt CapBleeder Bolt Cap
-
135710003279 Damper ShockDamper Shock
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601670 Dual Brake SwitchDual Brake Switch
-
155705601617 Banjo CouplingBanjo Coupling
-
156705601578 Pressure SensorPressure Sensor
-
160705600859 RH Rear Caliper Ass'y. Includes 160 to 160dRH Rear Caliper Ass'y. Includes 160 to 160d
-
160a705601016 Pin SetPin Set
-
160b705601017 Bleeding ScrewBleeding Screw
-
160c705601018 SpringSpring
-
160d705601014 RH Brake Pad KitRH Brake Pad Kit
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600999 Disc BrakeDisc Brake
-
440207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
536207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
550293650219 ClampClamp
-
560293650220 ClampClamp
-
580409902200 Tubing 25 mmTubing 25 mm
