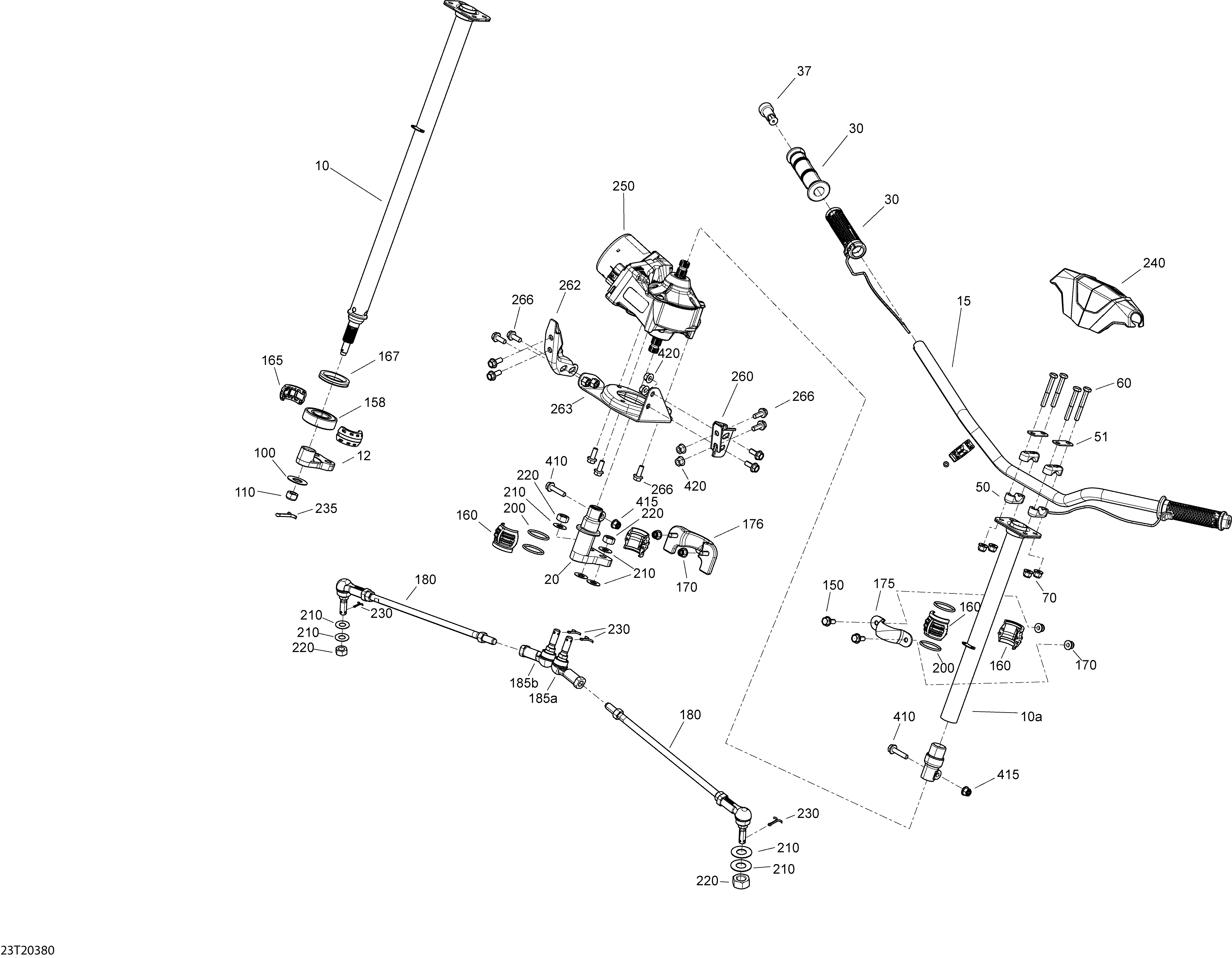

07- Steering для BRP 001 - Outlander T 6X6 - 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10709401545 Black, Upper Main Tube. STDBlack, Upper Main Tube. STD
-
10a709401750 Black, Upper Main Tube. PRO+Black, Upper Main Tube. PRO+
-
12709401542 Pitman Arm. STDPitman Arm. STD
-
15709401240 Black, Handle BarBlack, Handle Bar
-
20709401748 Pitman Arm. PRO+Pitman Arm. PRO+
-
30709400493 Handle Grip. STDHandle Grip. STD
-
30710005038 Heated Hand Grip With Connector. PRO+Heated Hand Grip With Connector. PRO+
-
37709400449 End PieceEnd Piece
-
50709401799 Steering SupportSteering Support
-
51709400509 StiffnerStiffner
-
60207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
100250200086 Flat Washer. STDFlat Washer. STD
-
110250000047 Hex. Flanged Elastic Nut M12. STDHex. Flanged Elastic Nut M12. STD
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
158503190396 Ball Bearing. STDBall Bearing. STD
-
160709400783 Spherical Half Bushing. PRO+Spherical Half Bushing. PRO+
-
160709401370 Spherical Half Bushing. STDSpherical Half Bushing. STD
-
167293250177 Seal. STDSeal. STD
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501038 Rod-Tie Ass`yRod-Tie Ass`y
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
200293300068 O-Ring. STDO-Ring. STD
-
200293300068 O-Ring. PRO+O-Ring. PRO+
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
235250400034 Cotter Pin. STDCotter Pin. STD
-
240709400939 CoverCover
-
250709402388 Power Steering Ass'y. PRO+Power Steering Ass'y. PRO+
-
260709402184 LH Power Steering Bracket. PRO+LH Power Steering Bracket. PRO+
-
262709402185 RH Bracket. PRO+RH Bracket. PRO+
-
263709401743 Power Steering Support. PRO+Power Steering Support. PRO+
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. PRO+Hex. Flanged Screw M8 X 20, Scotch Grip. PRO+
-
410250000986 Hex. Flanged Screw M8 X 35. PRO+Hex. Flanged Screw M8 X 35. PRO+
-
415233281416 Hex. Elastic Flanged Nut M8. PRO+Hex. Elastic Flanged Nut M8. PRO+
-
420233081416 Hex. Flanged Nut M8. PRO+Hex. Flanged Nut M8. PRO+
