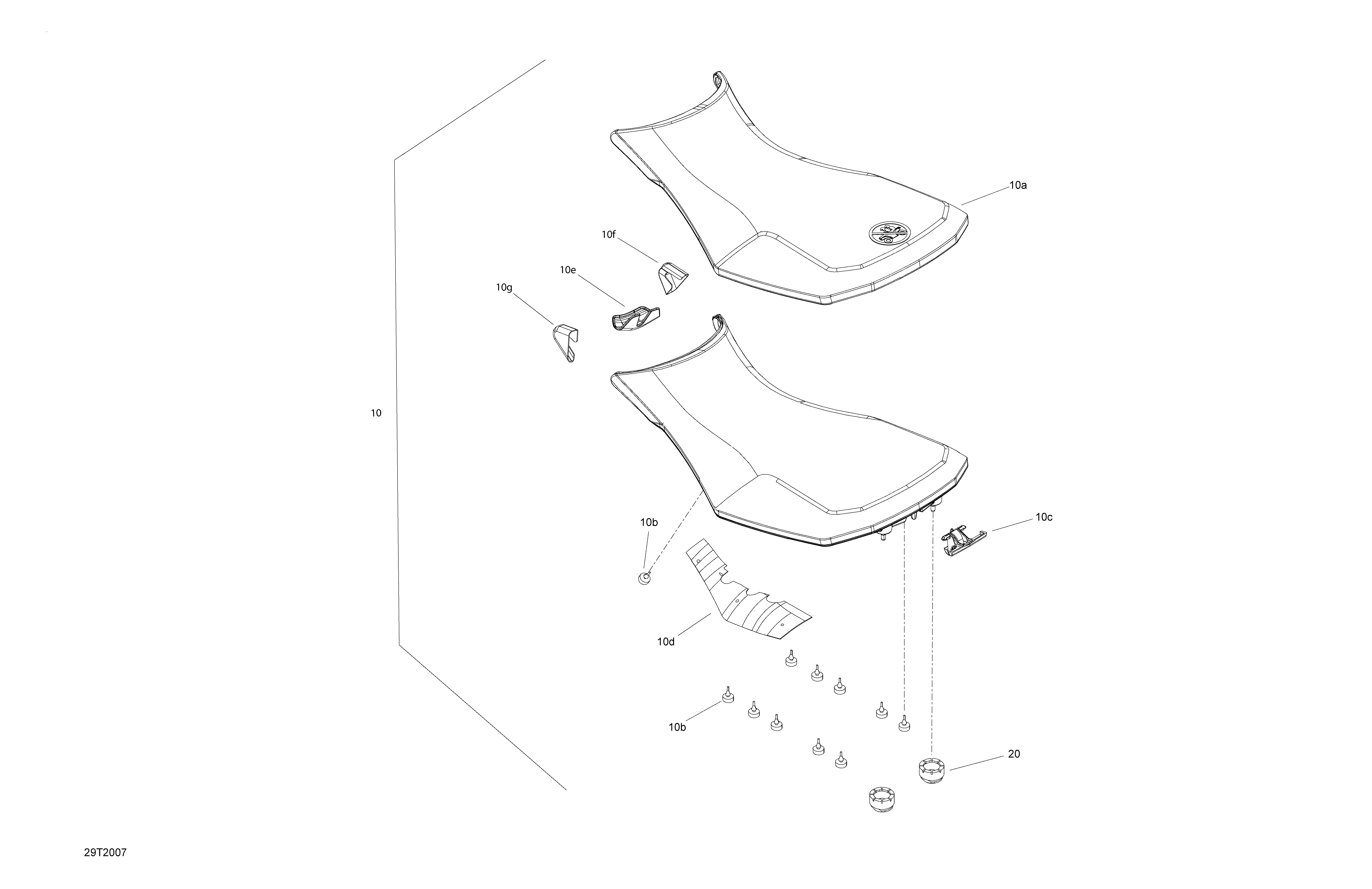

09- Seat для BRP 002 - Outlander T 6X6 - 650 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10708002493 Assembly Seat. Package PRO+. Includes 10 to 10hAssembly Seat. Package PRO+. Includes 10 to 10h
-
10a708001972 Seat Cover. Package PRO+Seat Cover. Package PRO+
-
10b708000759 Rubber Stopper. Package PRO+Rubber Stopper. Package PRO+
-
10c708000909 Latch. Package PRO+Latch. Package PRO+
-
10d705005761 Heat Shield. Package PRO+Heat Shield. Package PRO+
-
10e708002077 Center Corner Seat. Package PRO+Center Corner Seat. Package PRO+
-
10f269001669 RH Corner Seat. Package PRO+RH Corner Seat. Package PRO+
-
10g269001670 LH Corner Seat. Package PRO+LH Corner Seat. Package PRO+
-
20708003053 Stopper RubberStopper Rubber
