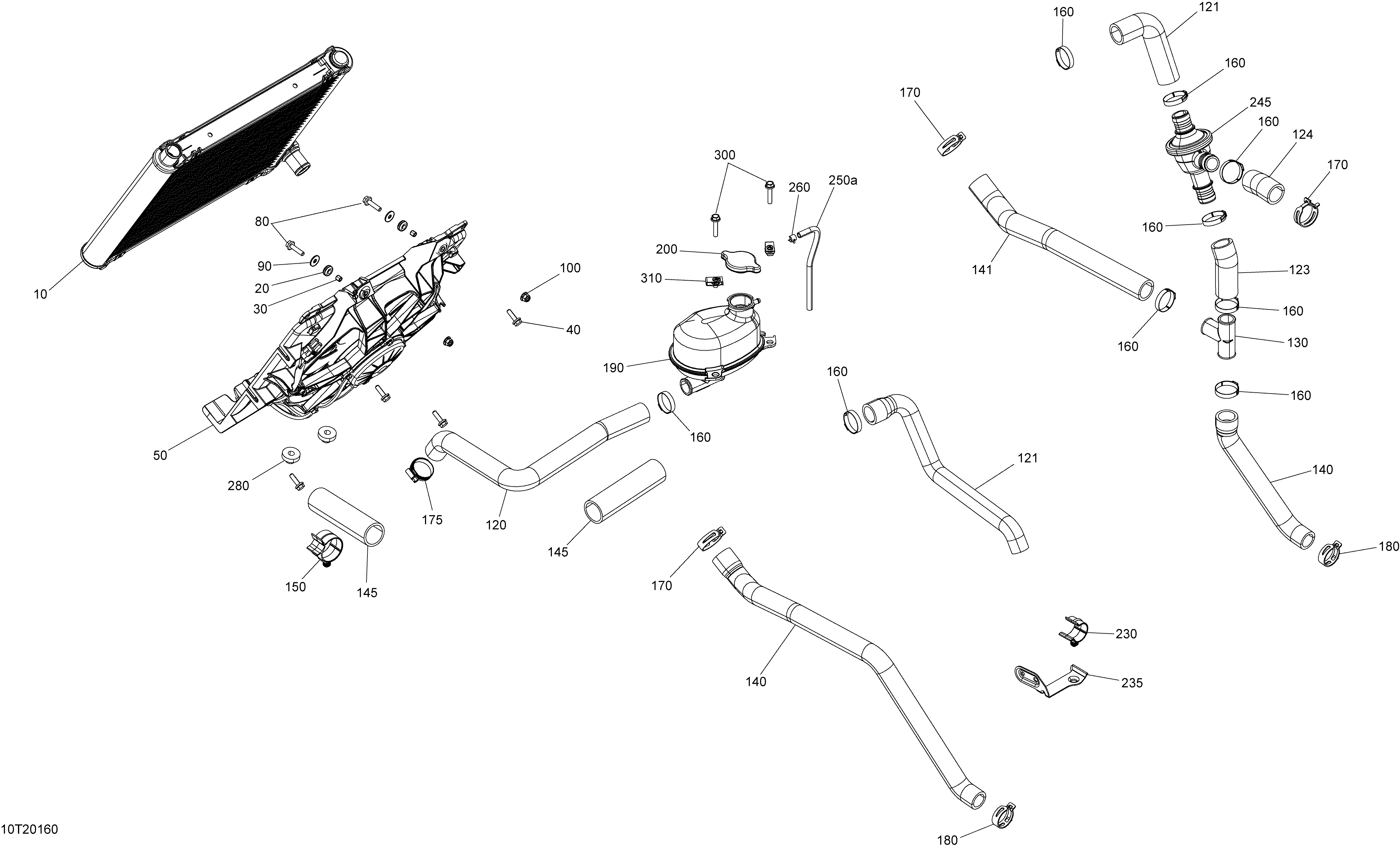

01- Cooling - System для BRP 001 - Renegade T 650 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10709200286 RadiatorRadiator
-
20293720053 GrommetGrommet
-
30293900105 BushingBushing
-
40207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50709200564 Fan Ass'yFan Ass'y
-
80207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
90250200082 Flat WasherFlat Washer
-
100233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
120709200278 Radiator Inlet HoseRadiator Inlet Hose
-
121709200643 Thermostat Inlet HoseThermostat Inlet Hose
-
123709200629 Cylinder HoseCylinder Hose
-
124709200630 Cylinder HoseCylinder Hose
-
130509000219 T-FittingT-Fitting
-
140709200631 HoseHose
-
141709200638 Radiator Outlet HoseRadiator Outlet Hose
-
145515176260 Tubing 35 mmTubing 35 mm
-
150275500590 RetainerRetainer
-
160509000162 Gear ClampGear Clamp
-
170293650166 Norma Spring ClampNorma Spring Clamp
-
175293650098 Norma Gear ClampNorma Gear Clamp
-
180293650166 Norma Spring ClampNorma Spring Clamp
-
190709200297 Coolant TankCoolant Tank
-
200709200207 Pressure CapPressure Cap
-
230275500526 RetainerRetainer
-
235709200641 Hose SupportHose Support
-
245709200406 ThermostatThermostat
-
250a293830193 Polyurethane HosePolyurethane Hose
-
260414554800 Spring ClampSpring Clamp
-
280709200948 GrommetGrommet
-
300207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
310250000957 Extruded Panel Nut M6Extruded Panel Nut M6
