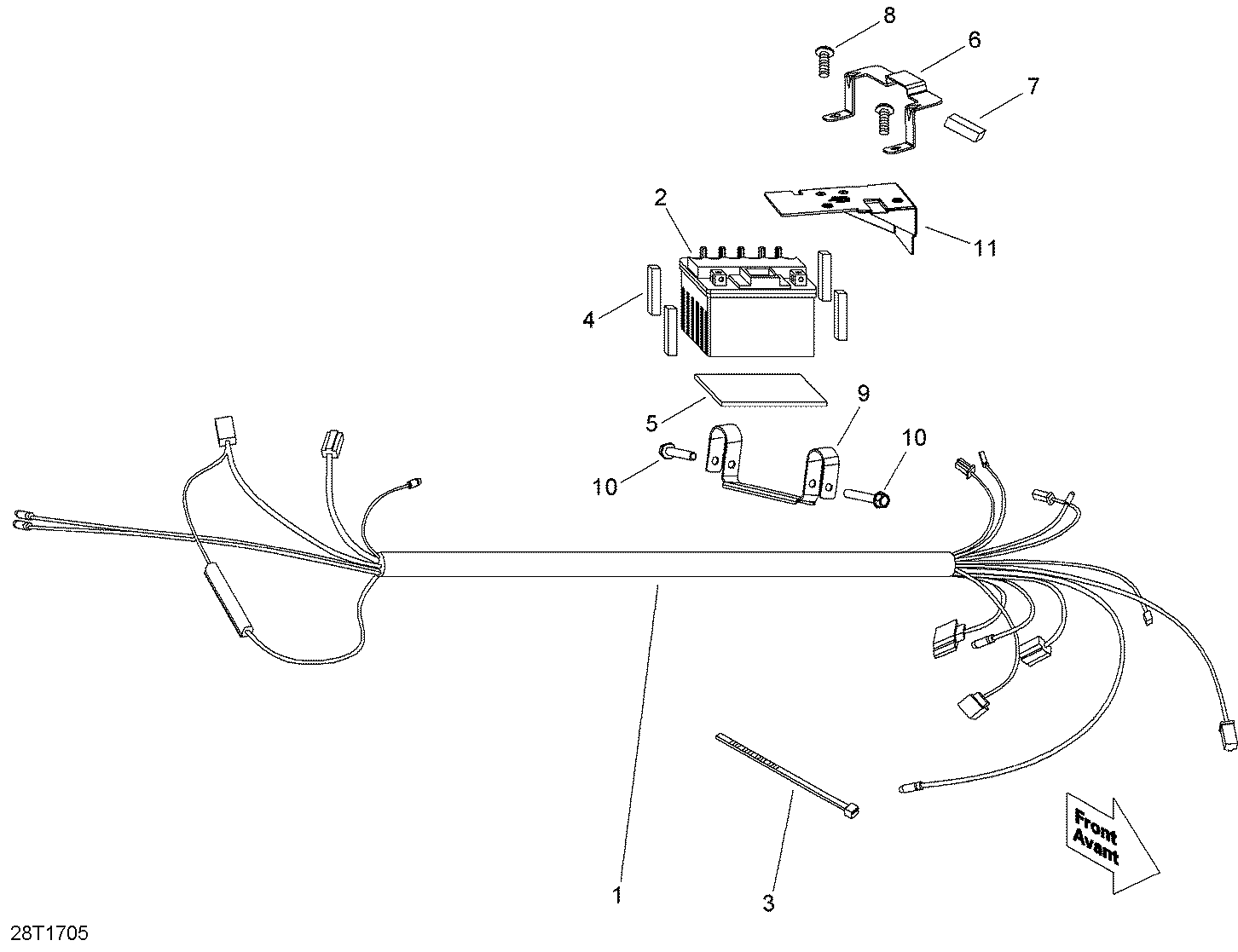

10- Main Harness для BRP 002 - DS 90 - 2020
-
№АртикулНазвание
-
1V32100DGF150 Main HarnessMain Harness
-
2V31500MAA020 BatteryBattery
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4V81149MAA000 Cushion RubberCushion Rubber
-
5V81151DGF020 FoamFoam
-
6V50296DGF010 Battery BracketBattery Bracket
-
7V81152DGF000 Cushion RubberCushion Rubber
-
8V930000601201 Round Head ScrewRound Head Screw
-
9V50229DGF01H Battery BracketBattery Bracket
-
10207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
11V80115DGF000 Battery Cover. USA ModelBattery Cover. USA Model
