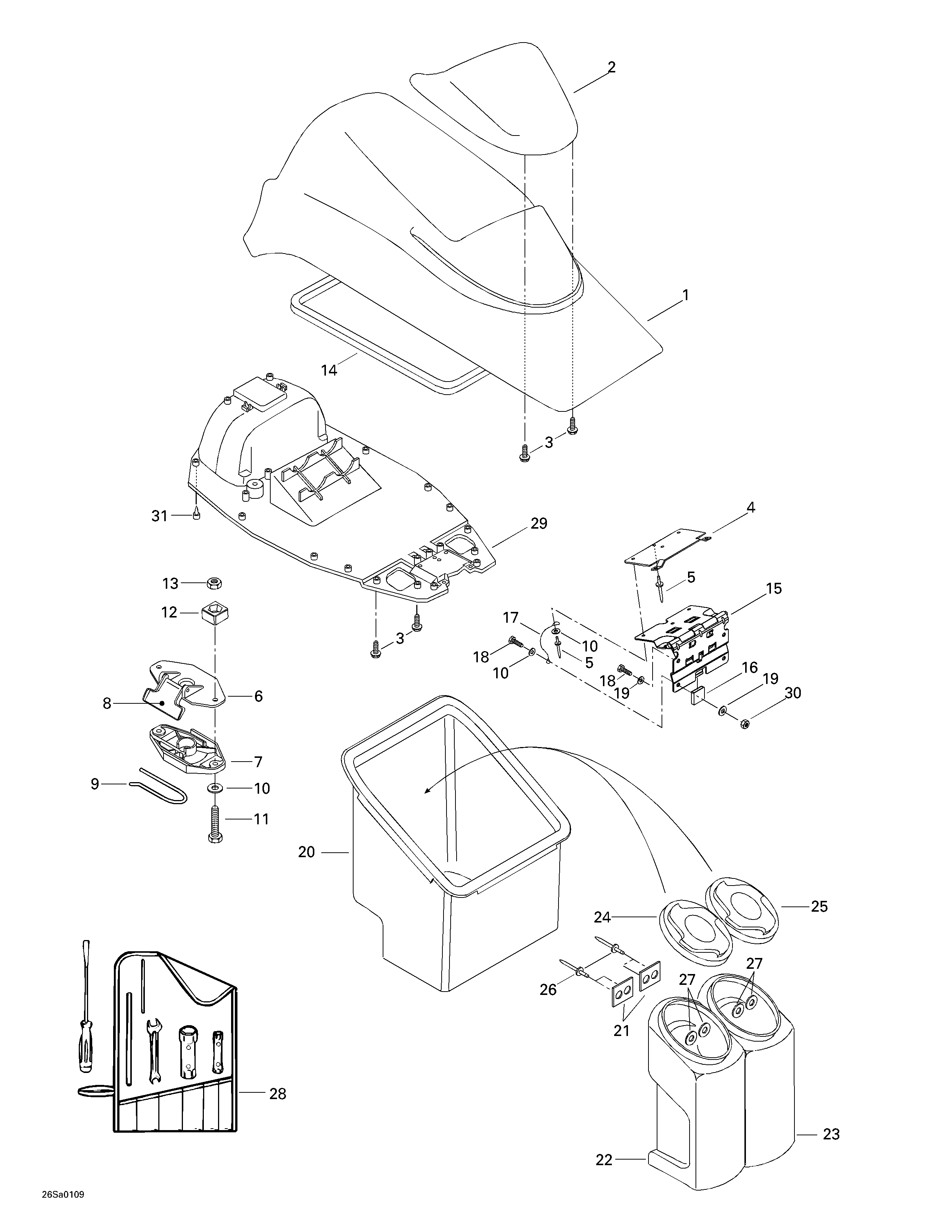

09- Front Storage Compartment для BRP GS, 5518/5519 - 2001
-
№АртикулНазвание
-
1269500880 Upper Storage CoverUpper Storage Cover
-
2269500367 DeflectorDeflector
-
3241141360 Screw for Plastic K40 x 13Screw for Plastic K40 x 13
-
4269500280 Retainer PlateRetainer Plate
-
5293150039 Pop Rivet 3/16Pop Rivet 3/16
-
6269700020 Latch CoverLatch Cover
-
7269000015 Latch BaseLatch Base
-
8269000016 Latch LeverLatch Lever
-
9269700017 SpringSpring
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
12269500252 Nut Housing. Includes 12 - 13.Nut Housing. Includes 12 - 13.
-
13232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14293200017 Seal (Meter)Seal (Meter)
-
15269500613 Hinge Ass'yHinge Ass'y
-
16293830046 Protector CapProtector Cap
-
17269500524 Retainer CableRetainer Cable
-
18205462060 Socket Screw M6 x 20Socket Screw M6 x 20
-
19234062600 Flat Washer 6 mmFlat Washer 6 mm
-
20269500991 Storage TrayStorage Tray
-
21293250037 GasketGasket
-
22269500606 Extinguisher Storage HousingExtinguisher Storage Housing
-
23269500605 Storage HousingStorage Housing
-
24269500603 Extinguisher Storage Housing CapExtinguisher Storage Housing Cap
-
25269500604 Storage Housing CapStorage Housing Cap
-
26293150033 Pop Rivet 1/8Pop Rivet 1/8
-
27234032600 Flat Washer 3 mmFlat Washer 3 mm
-
28295500783 Tool KitTool Kit
-
29269500655 Lower Storage CoverLower Storage Cover
-
30232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
31293830005 Rubber PlugRubber Plug
