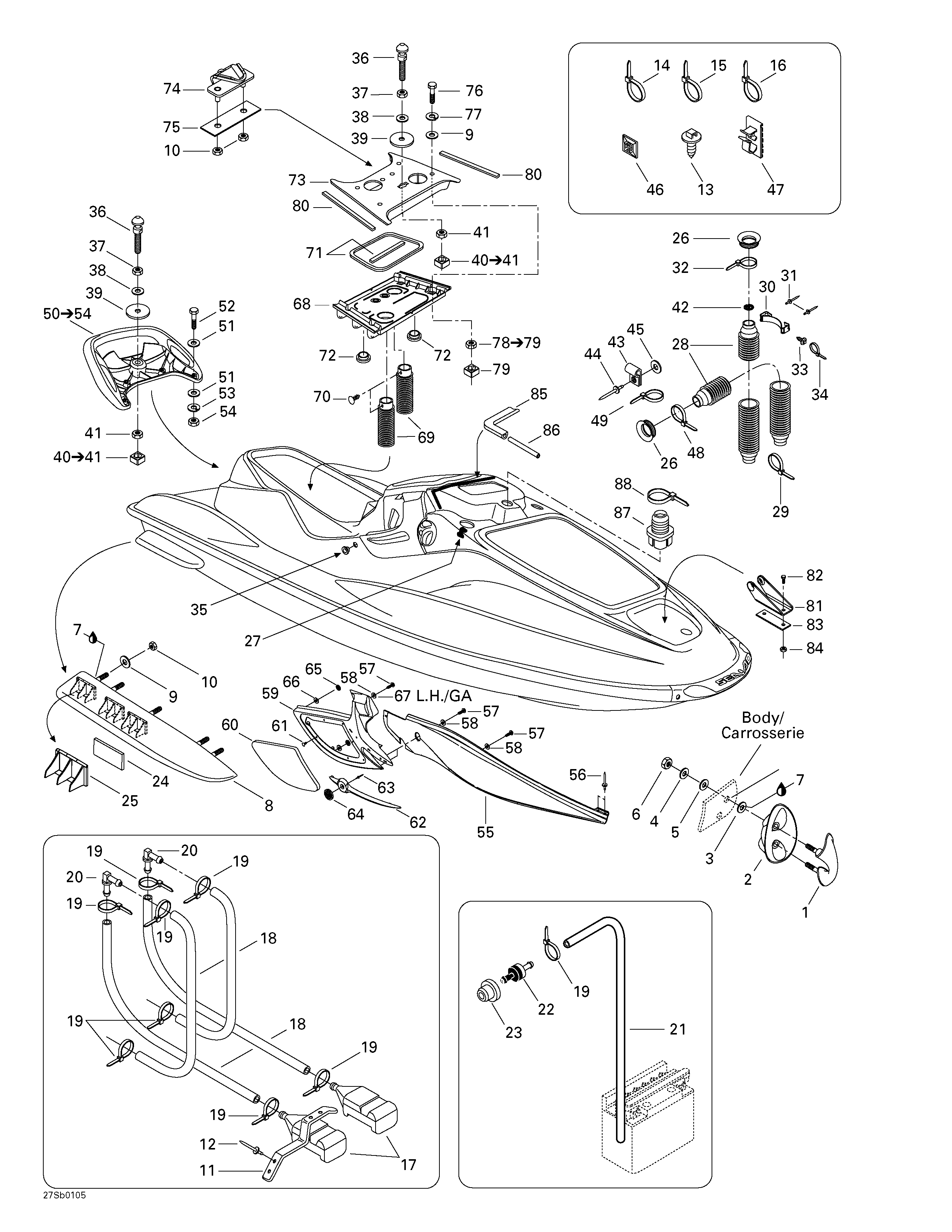

09- Body, Front View для BRP GTX RFI, 5524/5525/5553/5555 - 2001
-
№АртикулНазвание
-
1292000711 Bow EyeBow Eye
-
2292000515 ShellShell
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mmFlat Washer 8 mm
-
5293830037 Rubber WasherRubber Washer
-
6232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292000594 R.H. Sponson Ass'yR.H. Sponson Ass'y
-
292000595 L.H. Sponson Ass'yL.H. Sponson Ass'y
-
9234062600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11292000398 Spring ClipSpring Clip
-
12293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
13293730018 Mount DartMount Dart
-
14293750008 Tie Rap 350 mmTie Rap 350 mm
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16414115200 Tie RapTie Rap
-
17292000688 Bailer ScreenBailer Screen
-
18275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
19293750001 Tie Rap 94 mmTie Rap 94 mm
-
20293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
21275500446 Hose Vent 6 mm (Meter)Hose Vent 6 mm (Meter)
-
22275500499 Check ValveCheck Valve
-
23293720029 GrommetGrommet
-
24292000414 CushionCushion
-
25293450149 Insert SponsonInsert Sponson
-
26291001100 Adapter VentAdapter Vent
-
27291001512 ProtectorProtector
-
28291001636 Tube VentTube Vent
-
29293750023 Tie Rap 394 mmTie Rap 394 mm
-
30274000891 SupportSupport
-
31293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
32293750022 Tie RapTie Rap
-
33293730018 Mount DartMount Dart
-
34293750002 Tie Rap 130 mmTie Rap 130 mm
-
35293000089 Pipe CapPipe Cap
-
36291000945 Latch StudLatch Stud
-
37232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
38234002600 Flat Washer 10 mmFlat Washer 10 mm
-
39291000628 Rubber WasherRubber Washer
-
40271000598 Nut Housing. Includes 40 - 41.Nut Housing. Includes 40 - 41.
-
41232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
42291001617 RestrictorRestrictor
-
43293750021 Tie-ClampTie-Clamp
-
44293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
45213200016 Flat WasherFlat Washer
-
46293750015 Tie Rap MountTie Rap Mount
-
47293750005 Tie-ClampTie-Clamp
-
48293750008 Tie Rap 350 mm (5525-5555)Tie Rap 350 mm (5525-5555)
-
293750023 Tie Rap 394 mm (5524-5553)Tie Rap 394 mm (5524-5553)
-
49414115200 Tie RapTie Rap
-
50295500369 Grab Handle Kit (Black). Includes 50 - 54.Grab Handle Kit (Black). Includes 50 - 54.
-
51234062600 Flat Washer 6 mmFlat Washer 6 mm
-
52207064060 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
53234161601 Lock Washer 6 mmLock Washer 6 mm
-
54232061600 Hex. Nut M6Hex. Nut M6
-
55291001403 L.H. MouldingL.H. Moulding
-
291001404 R.H. MouldingR.H. Moulding
-
56293150037 Rivet Avdel 3/16''. GTX RFI (GOLD).Rivet Avdel 3/16''. GTX RFI (GOLD).
-
293150080 Pop Rivet 3/16''. GTX RFI (GREEN).Pop Rivet 3/16''. GTX RFI (GREEN).
-
57241141660 Screw K40 x 16Screw K40 x 16
-
58234052600 Flat Washer 5 mmFlat Washer 5 mm
-
59269500715 R.H. Intake GrillR.H. Intake Grill
-
269500714 L.H. Intake GrillL.H. Intake Grill
-
60269000697 R.H. Knee Pad. GTX RFI (GOLD).R.H. Knee Pad. GTX RFI (GOLD).
-
269000679 R.H. Knee Pad. GTX RFI (GREEN).R.H. Knee Pad. GTX RFI (GREEN).
-
269000698 L.H. Knee Pad. GTX RFI (GOLD).L.H. Knee Pad. GTX RFI (GOLD).
-
269000678 L.H. Knee Pad. GTX RFI (GREEN).L.H. Knee Pad. GTX RFI (GREEN).
-
61414644300 Windshield DartWindshield Dart
-
62269500716 Finition PlateFinition Plate
-
63293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
64516000983 Bombardier LogoBombardier Logo
-
65250100008 Push NutPush Nut
-
66211200055 Flat WasherFlat Washer
-
67211200033 Flat Washer 5.3 mmFlat Washer 5.3 mm
-
68291001281 Lower BridgeLower Bridge
-
69291001441 Rear Vent TubeRear Vent Tube
-
70293730011 Dart (Black)Dart (Black)
-
71293200003 Tray Seal (Meter)Tray Seal (Meter)
-
72293000049 PlugPlug
-
73291000851 Upper BridgeUpper Bridge
-
74291001479 Hook Seat (Rear)Hook Seat (Rear)
-
75291000079 Reinforcement PlateReinforcement Plate
-
76207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
77234161601 Lock Washer 6 mmLock Washer 6 mm
-
78269500252 Nut Housing. Includes 78 - 79.Nut Housing. Includes 78 - 79.
-
79232061600 Hex. Nut M6Hex. Nut M6
-
80293250008 Gasket (Meter)Gasket (Meter)
-
81291000855 Spring Support (Strorage Cover)Spring Support (Strorage Cover)
-
82207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
83291000079 Plate ReinforcementPlate Reinforcement
-
84232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
85293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
86275500018 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
87293720042 GrommetGrommet
-
88414115200 Tie RapTie Rap
