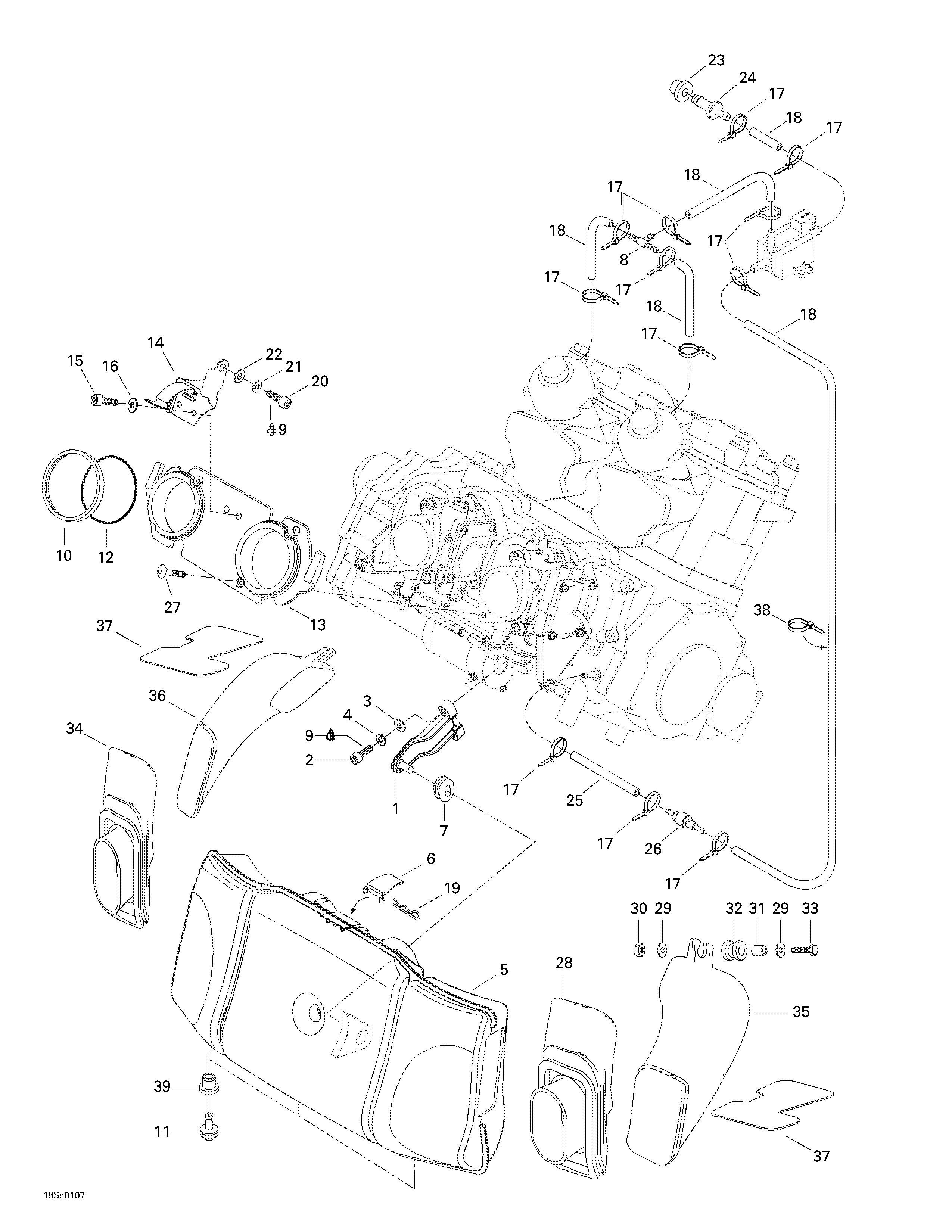

02- Air Intake System для BRP GTX, 5526/5527/5538/5539 - 2001
-
№АртикулНазвание
-
1273000123 Air Silencer SupportAir Silencer Support
-
2205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
3234061600 Flat Washer 6 mmFlat Washer 6 mm
-
4234161601 Lock Washer 6 mmLock Washer 6 mm
-
5273000183 Air SilencerAir Silencer
-
6273000204 Support PlateSupport Plate
-
7293720052 GrommetGrommet
-
8293710068 ''T'' Fitting''T'' Fitting
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10293250122 GasketGasket
-
11275500454 Check ValveCheck Valve
-
12293250065 O-RingO-Ring
-
13270500383 Air Silencer AdaptorAir Silencer Adaptor
-
14270000455 HolderHolder
-
15205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17293750001 Tie Rap 94 mmTie Rap 94 mm
-
18270000374 Hose 4.3 mmHose 4.3 mm
-
19250400015 PinPin
-
20205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
21234181601 Lock Washer 8 mmLock Washer 8 mm
-
22234082600 Flat Washer 8 mmFlat Washer 8 mm
-
23293720029 GrommetGrommet
-
24293700031 FittingFitting
-
25276000048 Hose 6 mmHose 6 mm
-
26275500479 Check ValveCheck Valve
-
27270500357 ScrewScrew
-
28273000163 Intake Adaptor (PTO)Intake Adaptor (PTO)
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
31272000074 Spacer 8 mmSpacer 8 mm
-
32278001260 InsulatorInsulator
-
33207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
34273000164 Intake Adaptor (MAG)Intake Adaptor (MAG)
-
35273000151 Air Duct (PTO)Air Duct (PTO)
-
36273000150 Air Duct (MAG)Air Duct (MAG)
-
37273000165 Pad ProtectorPad Protector
-
38293750002 Tie Rap 130 mmTie Rap 130 mm
-
39293720064 GrommetGrommet
