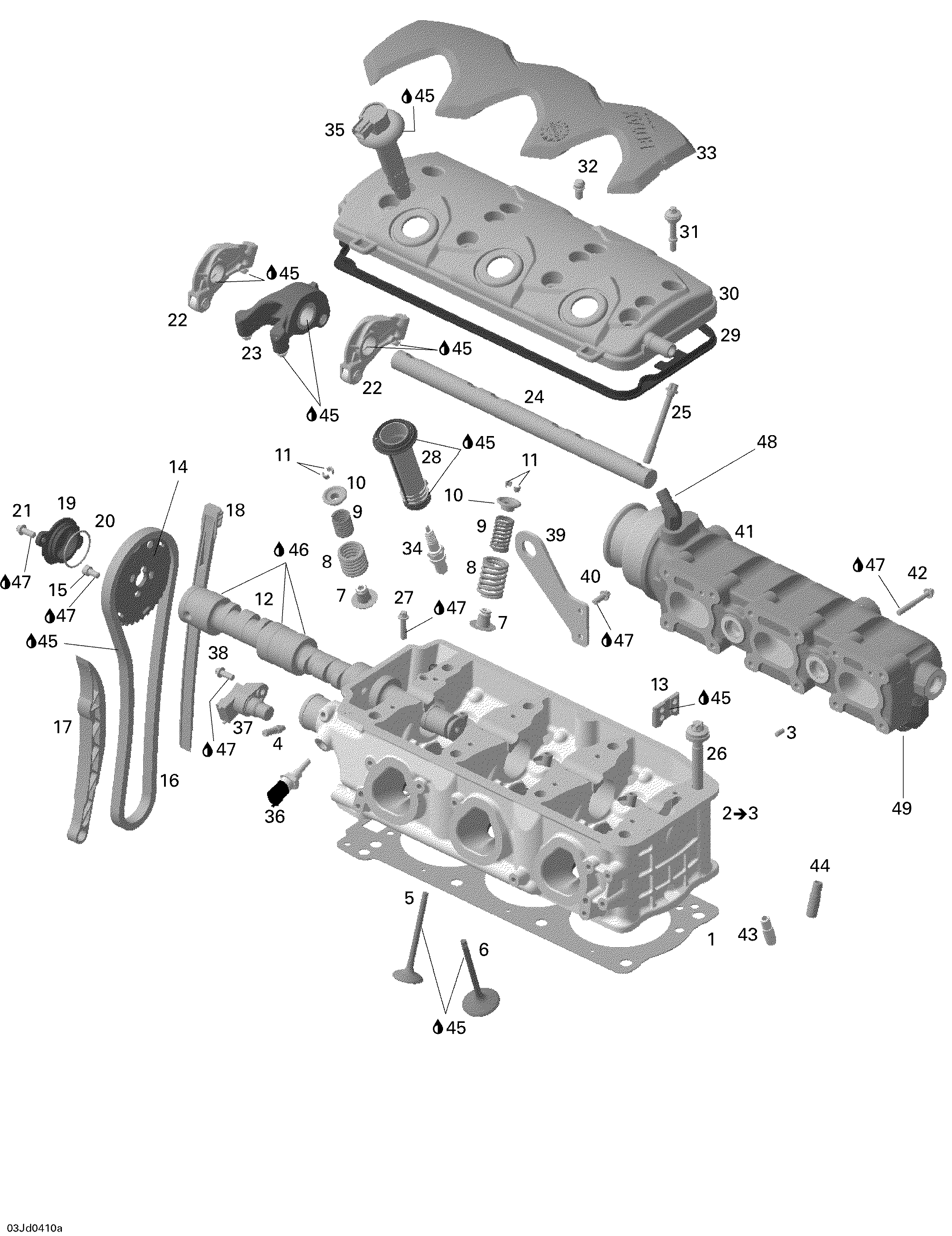

01- Cylinder Head для BRP GTX 4-TEC, LTD Supercharged - 2003
-
№АртикулНазвание
-
1420950770 Cylinder head gasketCylinder head gasket
-
2420613975 Cylinder head ass'y. Includes 2 - 3.Cylinder head ass'y. Includes 2 - 3.
-
3420929650 Pin 5 x 10Pin 5 x 10
-
4420924720 Hose nippleHose nipple
-
5420254682 Exhaust valve 31 mmExhaust valve 31 mm
-
6420254290 Intake valve 38 mmIntake valve 38 mm
-
7420630200 Valve stemValve stem
-
8420238180 Valve springValve spring
-
9420838280 Valve inside springValve inside spring
-
10420254280 Valve spring retainerValve spring retainer
-
11420253645 Cotter valveCotter valve
-
12420837626 CamshaftCamshaft
-
13420851692 Camshaft guideCamshaft guide
-
14420254306 Timing gear 38 teethTiming gear 38 teeth
-
15420841339 Socket head screw M6 x 12Socket head screw M6 x 12
-
16420898040 Camshaft chainCamshaft chain
-
17420236540 Chain tension guideChain tension guide
-
18420236500 Chain guideChain guide
-
19420660100 Camshaft coverCamshaft cover
-
20420950870 O-ringO-ring
-
21420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
22420254326 Rocker arm (exhaust)Rocker arm (exhaust)
-
23420254315 Rocker arm (inner)Rocker arm (inner)
-
24420854592 Rocker arm (shaft)Rocker arm (shaft)
-
25420641080 Torx screw M8 x 72Torx screw M8 x 72
-
26420641110 Torx flanged screw M11 x 147Torx flanged screw M11 x 147
-
27420641238 Torx flanged screw M6 x 25Torx flanged screw M6 x 25
-
28420851750 Spark plug pipeSpark plug pipe
-
29420950820 Valve cover gasketValve cover gasket
-
30420811581 Valve coverValve cover
-
31420641268 Torx flanged screw M6 x 30Torx flanged screw M6 x 30
-
32420641483 Torx flanged screw M6 x 10Torx flanged screw M6 x 10
-
33420660163 Valve coverValve cover
-
34707000246 Spark plug NGK DCP-R8ESpark plug NGK DCP-R8E
-
35420664020 Ignition coilIgnition coil
-
36420222425 Temperature sensorTemperature sensor
-
37420664040 Camshaft sensorCamshaft sensor
-
38420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
39420851616 Transport bracket PTOTransport bracket PTO
-
40420641048 Torx flanged screw M6 x 16Torx flanged screw M6 x 16
-
41420973697 Exhaust manifoldExhaust manifold
-
42420641198 Torx flanged screw M6 x 45Torx flanged screw M6 x 45
-
43420253922 Inlet valve guideInlet valve guide
-
44420253927 Exhaust valve guideExhaust valve guide
-
45293600039 Engine oil 4 strokes, 5W40, 12 x 1 literEngine oil 4 strokes, 5W40, 12 x 1 liter
-
46293550021 Isoflex grease, 50 gIsoflex grease, 50 g
-
47293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
48420922434 Elbow Connector °45Elbow Connector °45
-
49420922249 Elbow Connector °90Elbow Connector °90
