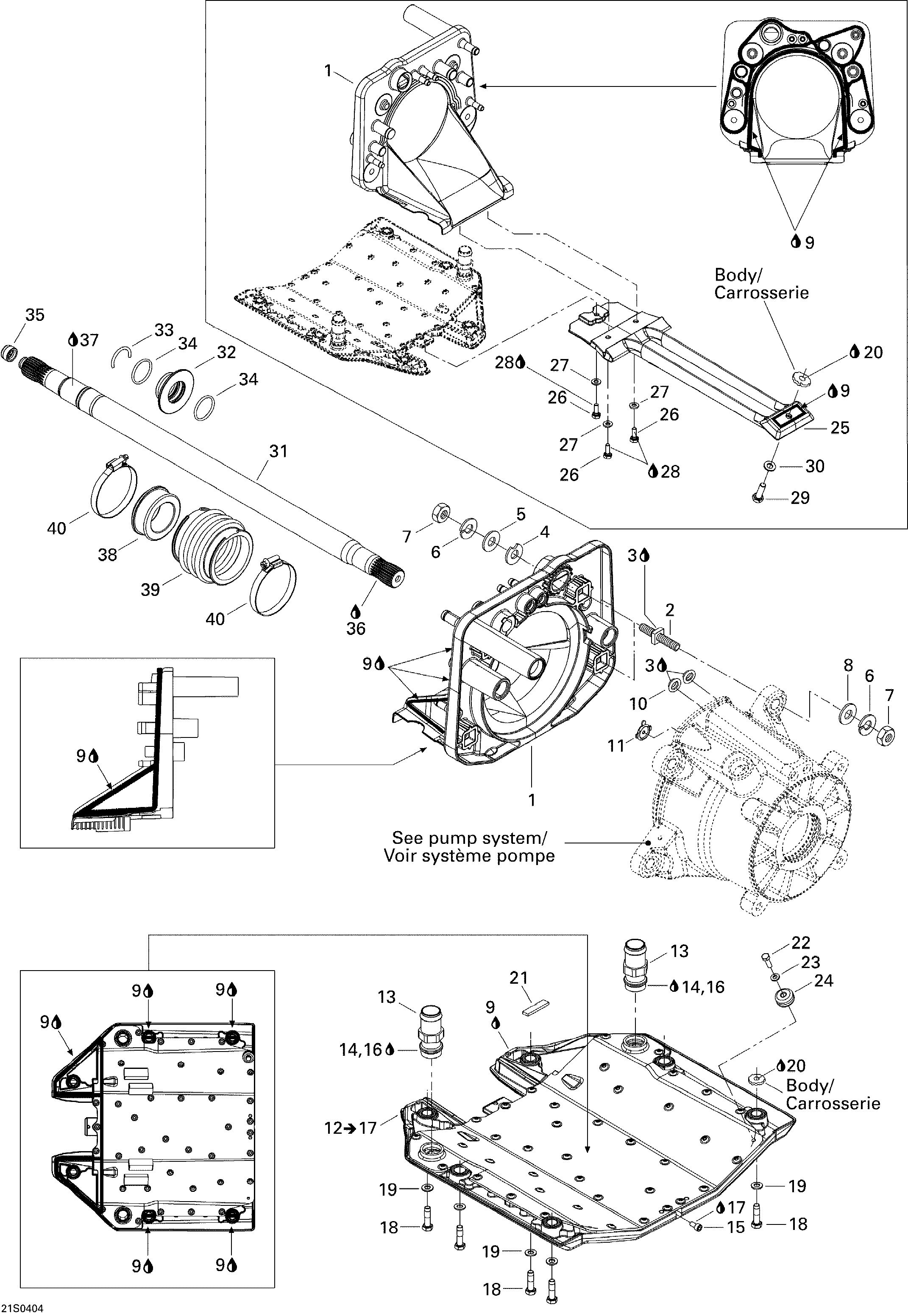

05- Propulsion для BRP GTX 4-TEC, Supercharged - 2004
-
№АртикулНазвание
-
1271001159 Pump SupportPump Support
-
2250300010 Square StudSquare Stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234002600 Flat Washer M10Flat Washer M10
-
6234101601 Lock Washer M10Lock Washer M10
-
7232001600 Hex Nut M10Hex Nut M10
-
8234001600 Flat Washer M10Flat Washer M10
-
9293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
10293250084 O-RingO-Ring
-
11291001888 ReducerReducer
-
12271001491 Riding Plate. Includes 12 To 17Riding Plate. Includes 12 To 17
-
13293710087 Straight FittingStraight Fitting
-
14293800041 Loctite, Primer NLoctite, Primer N
-
15250500005 Drain Blug M6 X 12Drain Blug M6 X 12
-
16293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
17293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
18207383060 Hex Screw M8 X 30 (Scotch Grip)Hex Screw M8 X 30 (Scotch Grip)
-
19234081600 Flat Washer M8Flat Washer M8
-
20296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
21293250087 GasketGasket
-
22207362060 Hex Screw M6 X 20 (Scotch Grip)Hex Screw M6 X 20 (Scotch Grip)
-
23234061600 Flat Washer M6Flat Washer M6
-
24271001487 Anode ZincAnode Zinc
-
25271001459 Pump Grate (Black)Pump Grate (Black)
-
26207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
27234061600 Flat Washer M6Flat Washer M6
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29207383060 Hex Screw M8 X 30 (Scotch Grip)Hex Screw M8 X 30 (Scotch Grip)
-
30234081600 Flat Washer M8Flat Washer M8
-
31271001449 Drive ShaftDrive Shaft
-
32272000176 Support RingSupport Ring
-
33272000175 C-ClipC-Clip
-
34293300044 O-RingO-Ring
-
35272000173 Drive Shaft PlugDrive Shaft Plug
-
36293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
37293600023 Engine Oil, Mineral, Api Sj Sae 10W40Engine Oil, Mineral, Api Sj Sae 10W40
-
38272000177 Carbon RingCarbon Ring
-
39272000183 BellowBellow
-
40293650077 Norma ClampNorma Clamp
