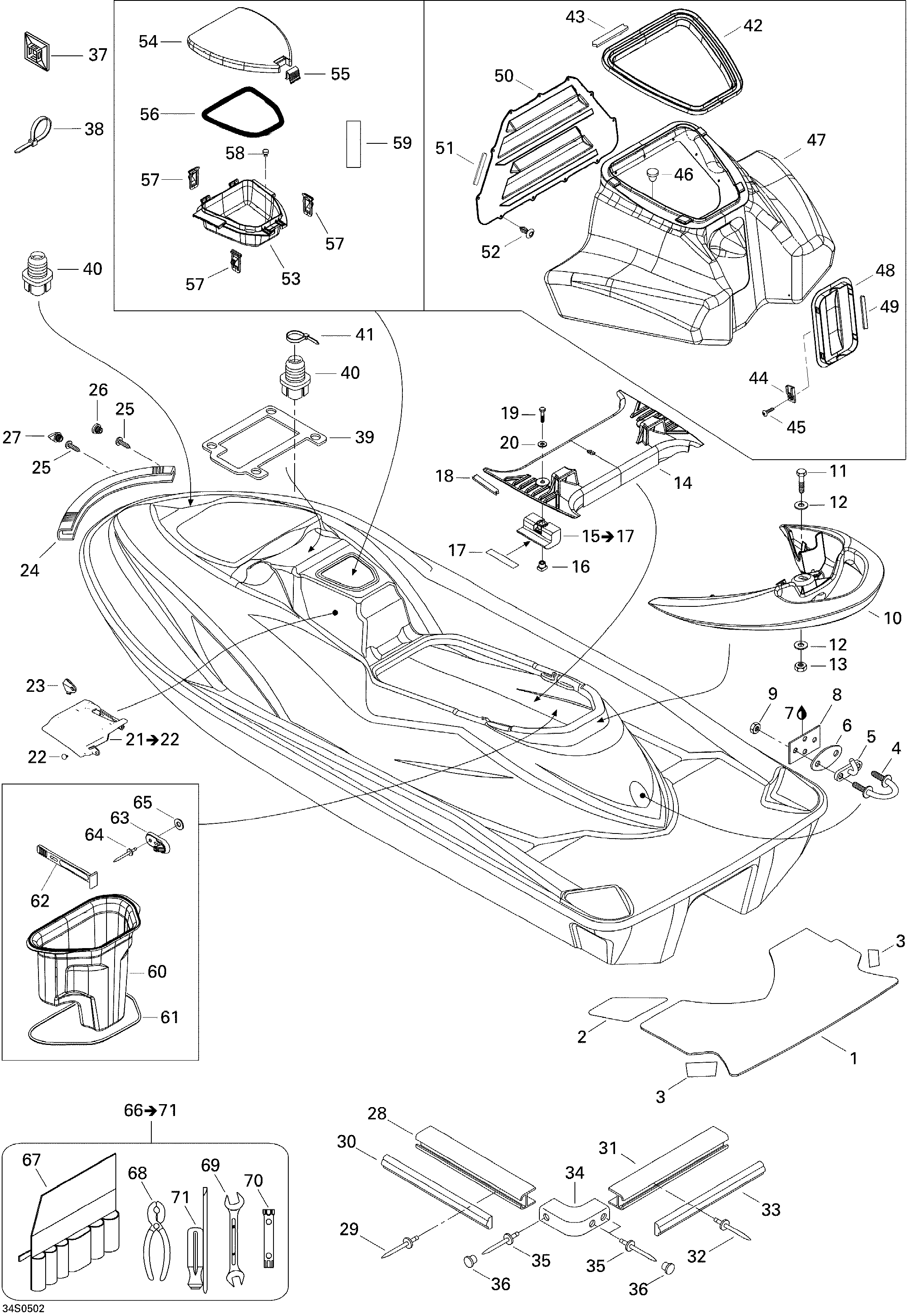

09- Body для BRP GTI - 2005
-
№АртикулНазвание
-
1291002152 Rear CarpetRear Carpet
-
2291001665 RH Anti-SkidRH Anti-Skid
-
2291001666 LH Anti-SkidLH Anti-Skid
-
3291001919 Anti-skid, BlackAnti-skid, Black
-
4292000011 U-clampU-clamp
-
5291001232 HookHook
-
6291001386 Finition Plate, BlackFinition Plate, Black
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8291001387 Retainer PlateRetainer Plate
-
9232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
10269000812 Grab HandleGrab Handle
-
11207084560 Hex Screw M8 X 45Hex Screw M8 X 45
-
12234081600 Flat Washer 8 mmFlat Washer 8 mm
-
13232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
14291001854 Upper BridgeUpper Bridge
-
15291001931 Link Bridge Ass'Y. Includes 15 to 17Link Bridge Ass'Y. Includes 15 to 17
-
16211100033 Square Nut M8Square Nut M8
-
17291001932 PadPad
-
18293250008 GasketGasket
-
19207384060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
20234082600 Flat Washer 8 mmFlat Washer 8 mm
-
21291001649 RH Grill Ass'Y. Includes 21 to 22RH Grill Ass'Y. Includes 21 to 22
-
21291001650 LH Grill Ass'Y. Includes 21 to 22LH Grill Ass'Y. Includes 21 to 22
-
22293730010 Dart, BlackDart, Black
-
23291001730 SpacerSpacer
-
24291001942 Bumper Nose, BlackBumper Nose, Black
-
25250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
26291001519 Bumper Plug, BlackBumper Plug, Black
-
27291001040 Bumper Plug, BlackBumper Plug, Black
-
28291001606 Side Bumper, BlackSide Bumper, Black
-
29293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
30291002001 Side Bumber Trim, YellowSide Bumber Trim, Yellow
-
31291001483 Rear Bumper, BlackRear Bumper, Black
-
32293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
33291001537 Rear Bumper Trim, YellowRear Bumper Trim, Yellow
-
34291001505 Bumper Corner, BlackBumper Corner, Black
-
35293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
36291000339 Bumper PlugBumper Plug
-
37293750025 Tie-Rap MountTie-Rap Mount
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
39293250068 GasketGasket
-
40293720042 GrommetGrommet
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42269501129 Cover TrimCover Trim
-
43293200093 Neoprene SealNeoprene Seal
-
44270000141 ClipClip
-
45241642060 Flanged Screw K40 X 20Flanged Screw K40 X 20
-
46291000279 Plug, BlackPlug, Black
-
48291001744 Front DoorFront Door
-
49293250087 GasketGasket
-
50291001631 Rear DoorRear Door
-
51293250087 GasketGasket
-
52293150089 Plastic RivetPlastic Rivet
-
53269500717 Glove BoxGlove Box
-
54269500928 Glove Box DoorGlove Box Door
-
55269500719 LatchLatch
-
56293250100 GasketGasket
-
57269500820 Retainer LatchRetainer Latch
-
58293830005 Rubber PlugRubber Plug
-
59293250099 GasketGasket
-
60269500990 Rear TrayRear Tray
-
61293250008 GasketGasket
-
62269500408 StrapStrap
-
63269500521 HookHook
-
64293150039 Pop Rivet 3/16''Pop Rivet 3/16''
-
65234052600 Flat Washer 5 mmFlat Washer 5 mm
-
66294000680 Owner Tool Kit Ass'Y. Includes 66 to 71Owner Tool Kit Ass'Y. Includes 66 to 71
-
69529017300 Fork WrenchFork Wrench
-
71529019200 Driver ScrewDriver Screw
