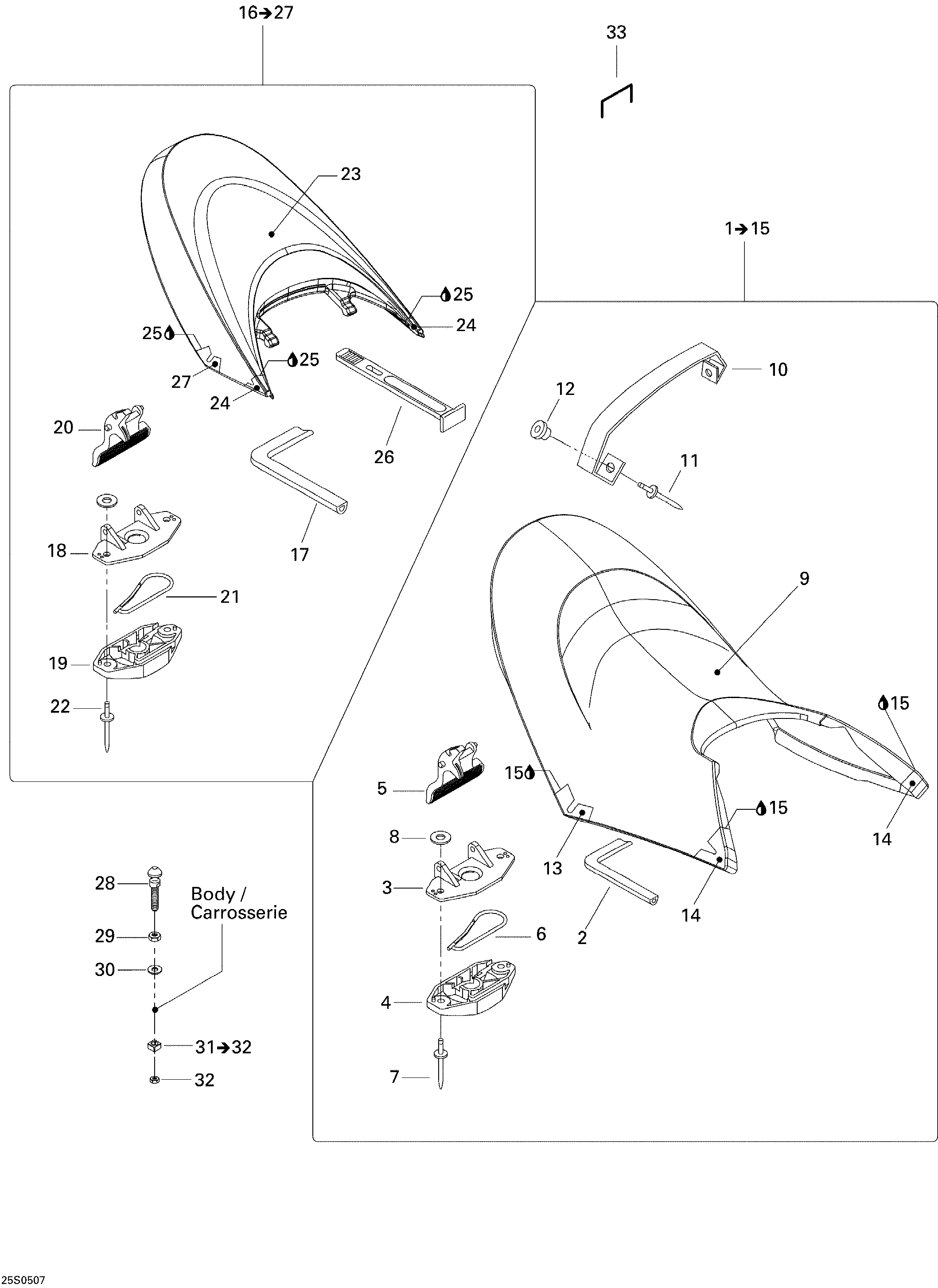

09- Seat Red для BRP RXT - 2005
-
№АртикулНазвание
-
1269001226 Front Seat Ass'y. Includes 1 to 15 / Viper Red, B-26Front Seat Ass'y. Includes 1 to 15 / Viper Red, B-26
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
10269001228 Seat Strap. Viper Red, B-267Seat Strap. Viper Red, B-267
-
11293150078 Pop RivetPop Rivet
-
12293720067 GrommetGrommet
-
13269001229 RH Seat Corner. Viper Red, B-267RH Seat Corner. Viper Red, B-267
-
13269001230 LH Seat Corner. Viper Red, B-267LH Seat Corner. Viper Red, B-267
-
14269001231 RH Seat Front Corner. Viper Red, B-267RH Seat Front Corner. Viper Red, B-267
-
14269001232 LH Seat Front Corner. Viper Red, B-267LH Seat Front Corner. Viper Red, B-267
-
15413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
16269001238 Rear Seat Ass'y. Includes 16 to 27 / Viper Red, B-26Rear Seat Ass'y. Includes 16 to 27 / Viper Red, B-26
-
17293200062 Seal (Meter)Seal (Meter)
-
18269700076 Latch CoverLatch Cover
-
19269000015 Latch BaseLatch Base
-
20269700077 Latch LeverLatch Lever
-
21269700017 Latch SpringLatch Spring
-
22293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
24269001240 RH Seat Corner. Viper Red, B-267RH Seat Corner. Viper Red, B-267
-
24269001241 LH Seat Corner. Viper Red, B-267LH Seat Corner. Viper Red, B-267
-
25413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
26269500408 StrapStrap
-
27269001242 Seat Corner. Viper Red, B-267Seat Corner. Viper Red, B-267
-
28291000945 Seat StudSeat Stud
-
29232100600 Hex Jam Nut M10Hex Jam Nut M10
-
30234002600 Flat Washer 10 mmFlat Washer 10 mm
-
31271000598 Nut Housing Ass'y. Includes 31 to 32Nut Housing Ass'y. Includes 31 to 32
-
32232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
33293730005 StapleStaple
