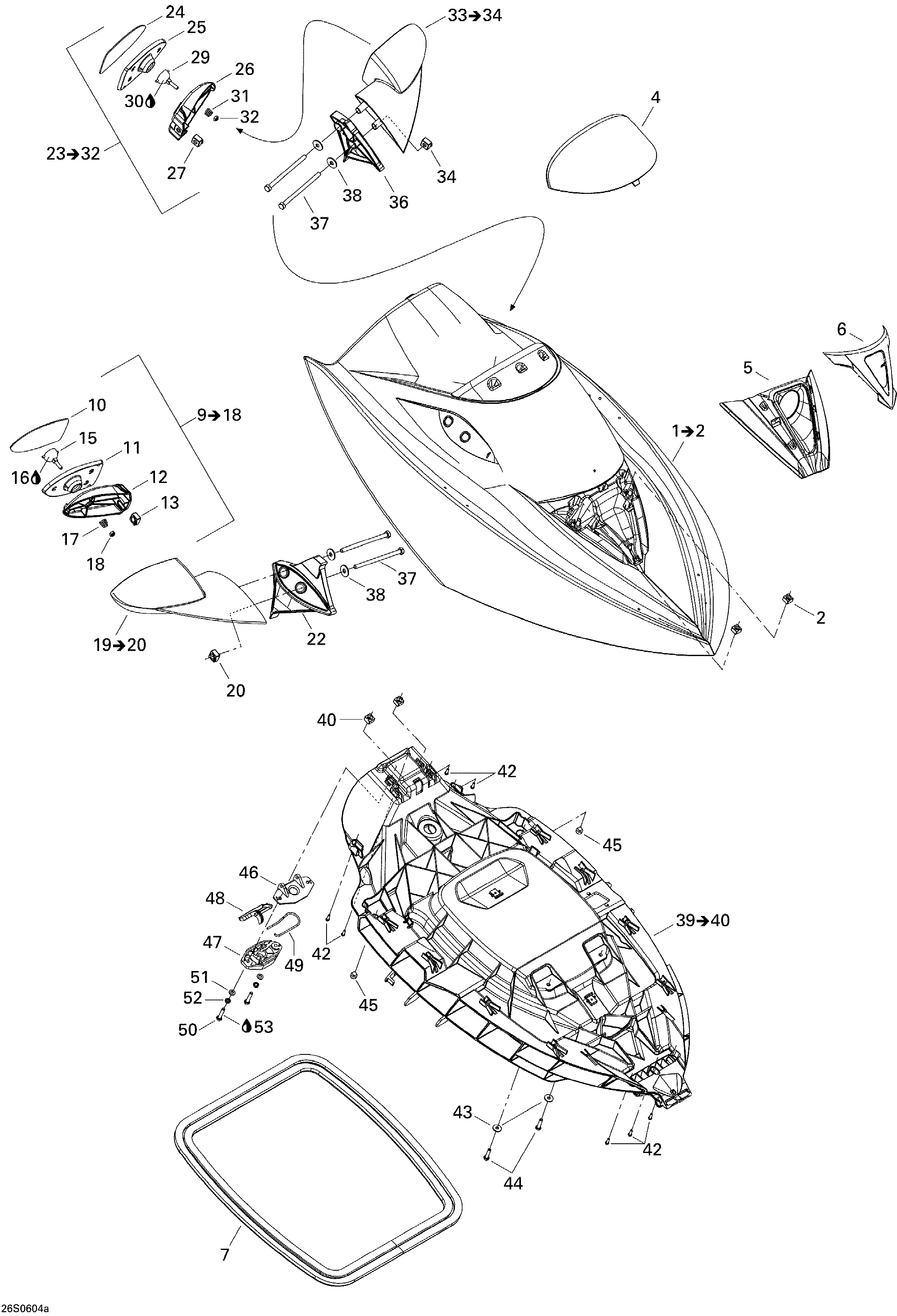

09- Front Storage Compartment 1, STD для BRP GTX 4-TEC, STD - 2006
-
№АртикулНазвание
-
1269501452 Upper Lugage Cover. Includes 1 to 2, STDUpper Lugage Cover. Includes 1 to 2, STD
-
2269500252 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
4269501485 Deflector, SmokeDeflector, Smoke
-
5269501520 Lower GrillLower Grill
-
6269500942 Upper GrillUpper Grill
-
7293200093 Neoprene SealNeoprene Seal
-
9269501328 RH Mirror Ass'y. Includes 9 to 18, STDRH Mirror Ass'y. Includes 9 to 18, STD
-
11269501330 Mirror FrameMirror Frame
-
12269501331 Housing SupportHousing Support
-
13269501332 Nut Housing Ass'yNut Housing Ass'y
-
15269501333 Mirror Ball JointMirror Ball Joint
-
16293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17269501334 Mirror SpringMirror Spring
-
18232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
19269501455 RH Mirror Shell. Includes 19 to 20, STDRH Mirror Shell. Includes 19 to 20, STD
-
20269501387 Nut Housing Ass'yNut Housing Ass'y
-
22269500950 RH SpacerRH Spacer
-
23269501337 LH Mirror Ass'y. Includes 23 to 32, STDLH Mirror Ass'y. Includes 23 to 32, STD
-
25269501330 Mirror FrameMirror Frame
-
26269501331 Housing SupportHousing Support
-
27269501332 Nut Housing Ass'yNut Housing Ass'y
-
29269501333 Mirror Ball JointMirror Ball Joint
-
30293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
31269501334 Mirror SpringMirror Spring
-
32232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
33269501458 LH Mirror Shell. Includes 33 to 34, STDLH Mirror Shell. Includes 33 to 34, STD
-
34269501387 Nut Housing Ass'yNut Housing Ass'y
-
36269500951 LH SpacerLH Spacer
-
37230082060 Hex Screw M8 X 120Hex Screw M8 X 120
-
38234082600 Flat Washer 8 mmFlat Washer 8 mm
-
39269501413 Lower Storage Cover Ass'y. Includes 39 to 40Lower Storage Cover Ass'y. Includes 39 to 40
-
40269500252 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
42241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
43234062600 Flat Washer 6 mmFlat Washer 6 mm
-
44207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
45293830005 Rubber PlugRubber Plug
-
46269700076 Latch CoverLatch Cover
-
47269000015 Latch BaseLatch Base
-
48269700077 Latch LeverLatch Lever
-
49269700017 Latch SpringLatch Spring
-
50207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
51234061600 Flat Washer 6 mmFlat Washer 6 mm
-
52234161601 Lock Washer 6 mmLock Washer 6 mm
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
