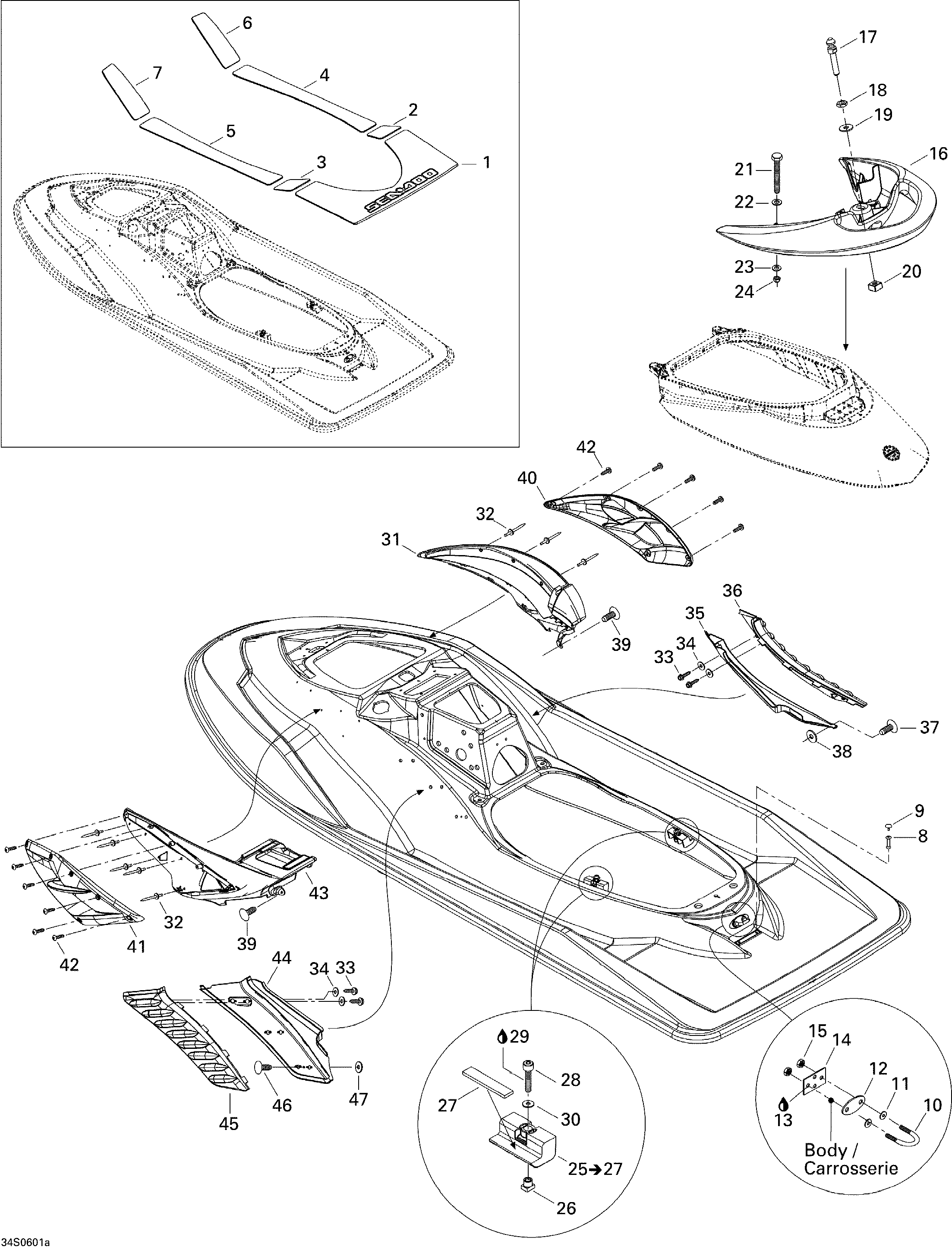

09- Body 1 для BRP RXP - 2006
-
№АртикулНазвание
-
1291002333 Platforme CarpetPlatforme Carpet
-
2291002388 RH Rear CarpetRH Rear Carpet
-
3291002389 LH Rear CarpetLH Rear Carpet
-
4291002390 RH Center CarpetRH Center Carpet
-
5291002391 LH Center CarpetLH Center Carpet
-
6291002392 RH Front CarpetRH Front Carpet
-
7291002393 LH Front CarpetLH Front Carpet
-
8293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
9293000014 Snap CapSnap Cap
-
10292000011 U-clampU-clamp
-
11293050001 Flat WasherFlat Washer
-
12291001386 Finition Plate, BlackFinition Plate, Black
-
13296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
14291001387 Retainer PlateRetainer Plate
-
15232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
16269001193 Grab Handle, Viper Red. Viper RedGrab Handle, Viper Red. Viper Red
-
16269001367 Grab Handle, Maya Gold. Maya GoldGrab Handle, Maya Gold. Maya Gold
-
17291000691 Latch StudLatch Stud
-
18232100600 Hex Jam Nut M10Hex Jam Nut M10
-
19234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
20271000598 Nut Housing Ass'yNut Housing Ass'y
-
21207085560 Hex Screw M8 X 55Hex Screw M8 X 55
-
22234081600 Flat Washer 8 mmFlat Washer 8 mm
-
23234082600 Flat Washer 8 mmFlat Washer 8 mm
-
24232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
25291001931 Link Bridge Ass'Y. Includes 25 to 27Link Bridge Ass'Y. Includes 25 to 27
-
26211100033 Square Nut M8Square Nut M8
-
27291001932 PadPad
-
28205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30234082600 Flat Washer 8 mmFlat Washer 8 mm
-
31291002104 RH Upper Moulding, Viper Red. Viper RedRH Upper Moulding, Viper Red. Viper Red
-
31291002336 RH Upper Moulding, Maya Gold. Maya GoldRH Upper Moulding, Maya Gold. Maya Gold
-
32293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
33211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
34211200055 Flat WasherFlat Washer
-
35291002107 RH Moulding, Viper Red. Viper RedRH Moulding, Viper Red. Viper Red
-
35291002338 RH Moulding, Maya Gold. Maya GoldRH Moulding, Maya Gold. Maya Gold
-
36269001293 RH Knee Pad, SilverRH Knee Pad, Silver
-
37293730006 Dart, BlackDart, Black
-
38250200024 Rubber Washer M5Rubber Washer M5
-
39293730006 Dart, BlackDart, Black
-
40273000218 RH GrillRH Grill
-
41273000219 LH GrillLH Grill
-
42250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
43291002105 LH Upper Moulding, Viper Red. Viper RedLH Upper Moulding, Viper Red. Viper Red
-
43291002339 LH Upper Moulding, Maya Gold. Maya GoldLH Upper Moulding, Maya Gold. Maya Gold
-
44291002109 LH Moulding, Viper Red. Viper RedLH Moulding, Viper Red. Viper Red
-
44291002341 LH Moulding, Maya Gold. Maya GoldLH Moulding, Maya Gold. Maya Gold
-
45269001292 LH Knee Pad, SilverLH Knee Pad, Silver
-
46293730006 Dart, BlackDart, Black
-
47250200024 Rubber Washer M5Rubber Washer M5
