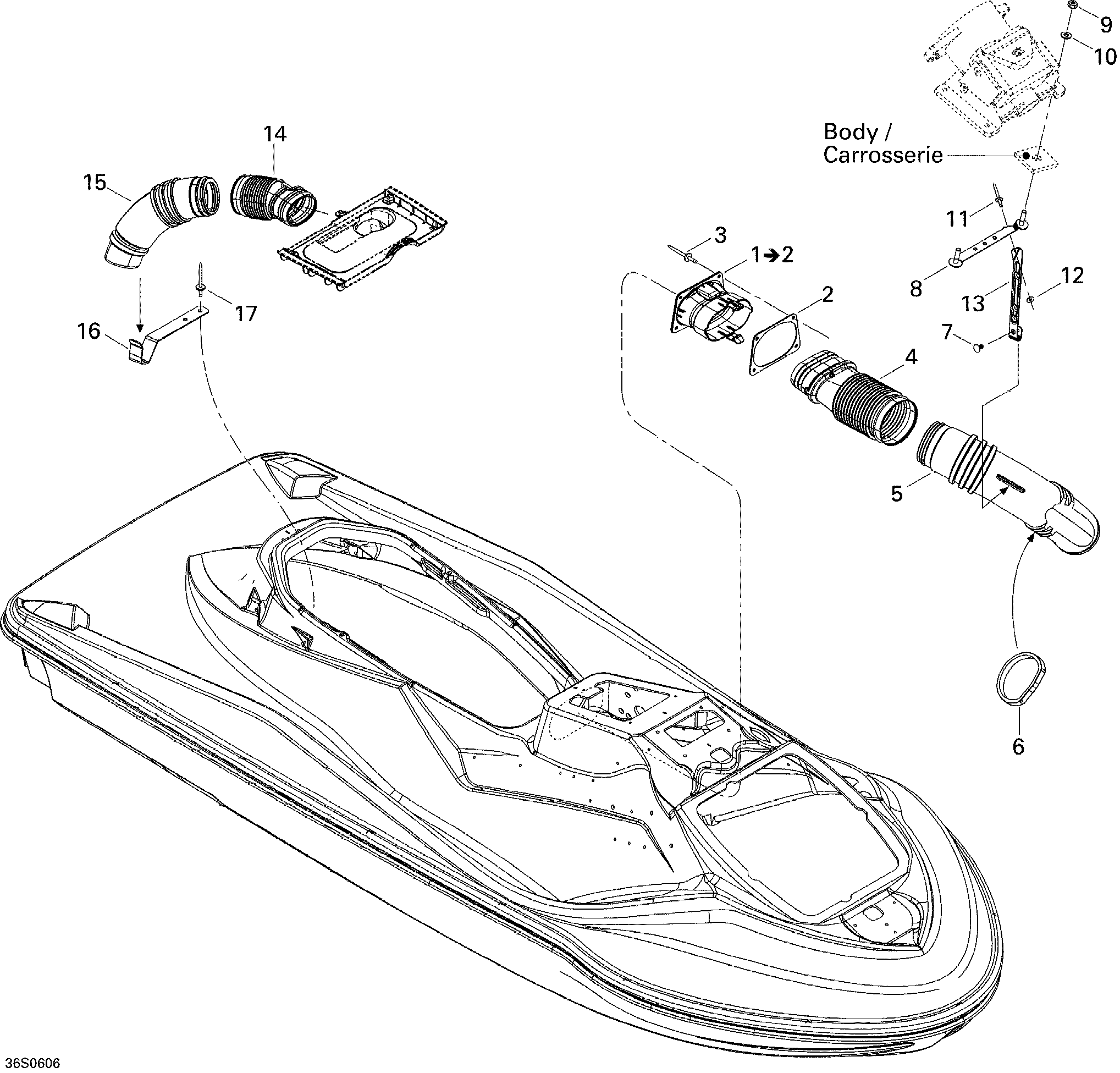

09- Ventilation для BRP RXT - 2006
-
№АртикулНазвание
-
1291001717 Front Air Collector Ass'y. Includes 1 to 2Front Air Collector Ass'y. Includes 1 to 2
-
2293250128 GasketGasket
-
3293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
4291001746 Flexible HoseFlexible Hose
-
6293200003 GasketGasket
-
7293730010 Dart, BlackDart, Black
-
8277001072 Steering SupportSteering Support
-
9232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
10234081600 Flat Washer 8 mmFlat Washer 8 mm
-
11293150026 Pop Rivet 1/8''Pop Rivet 1/8''
-
12234032600 Flat Washer 3 mmFlat Washer 3 mm
-
13291001886 Hose SupportHose Support
-
14291001748 Flexible HoseFlexible Hose
-
15291001601 Vent HoseVent Hose
-
16291001749 Hose SupportHose Support
-
17293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
