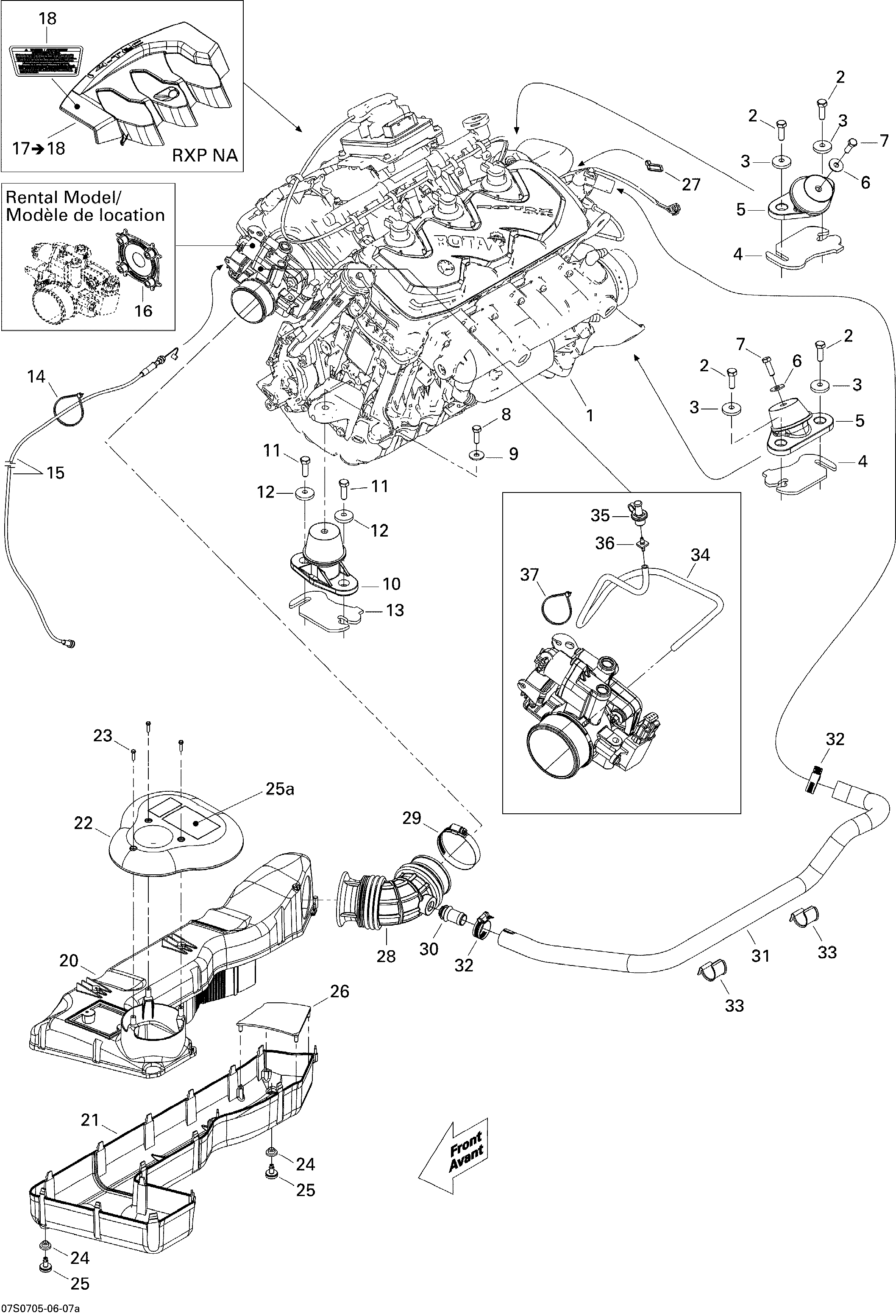

01- Engine And Air Intake Silencer RENTAL для BRP GTI 4-TEC RENTAL - 2007
-
№АртикулНазвание
-
1270000687 Rotax Engine 1503 DTRotax Engine 1503 DT
-
2207284060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
3250200018 Cone WasherCone Washer
-
4270000446 Shim 1.3 mmShim 1.3 mm
-
5270000669 Rubber MountRubber Mount
-
6234082600 Flat Washer 8 mmFlat Washer 8 mm
-
7207382560 Hex Screw M8 X 25, Scotch GripHex Screw M8 X 25, Scotch Grip
-
8207382560 Hex Screw M8 X 25, Scotch GripHex Screw M8 X 25, Scotch Grip
-
9234082600 Flat Washer 8 mmFlat Washer 8 mm
-
10270000690 Rubber MountRubber Mount
-
11207284060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
12250200018 Cone WasherCone Washer
-
13270000446 Shim 1.3 mmShim 1.3 mm
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15277001170 Throttle CableThrottle Cable
-
16270500448 Intake Gasket. GTI RentalIntake Gasket. GTI Rental
-
20273000224 Upper Air SilencerUpper Air Silencer
-
21273000190 Air Silencer LowerAir Silencer Lower
-
22273000192 Air Silencer CoverAir Silencer Cover
-
23241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
24293720064 GrommetGrommet
-
25275500454 Check ValveCheck Valve
-
25a219902673 Instruction Label, Air SilencerInstruction Label, Air Silencer
-
26273000206 DeflectorDeflector
-
27293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
28270000628 Intake HoseIntake Hose
-
29293650179 Tridon Gear ClampTridon Gear Clamp
-
30273000234 BreatherBreather
-
31270000681 Formed HoseFormed Hose
-
32293650051 Tridon Gear ClampTridon Gear Clamp
-
33275500664 RetainerRetainer
-
34270000469 Hose 3 mmHose 3 mm
-
35293830115 Grommet CapGrommet Cap
-
36293710107 ConnectorConnector
-
37293750002 Tie-Rap 130 mmTie-Rap 130 mm
