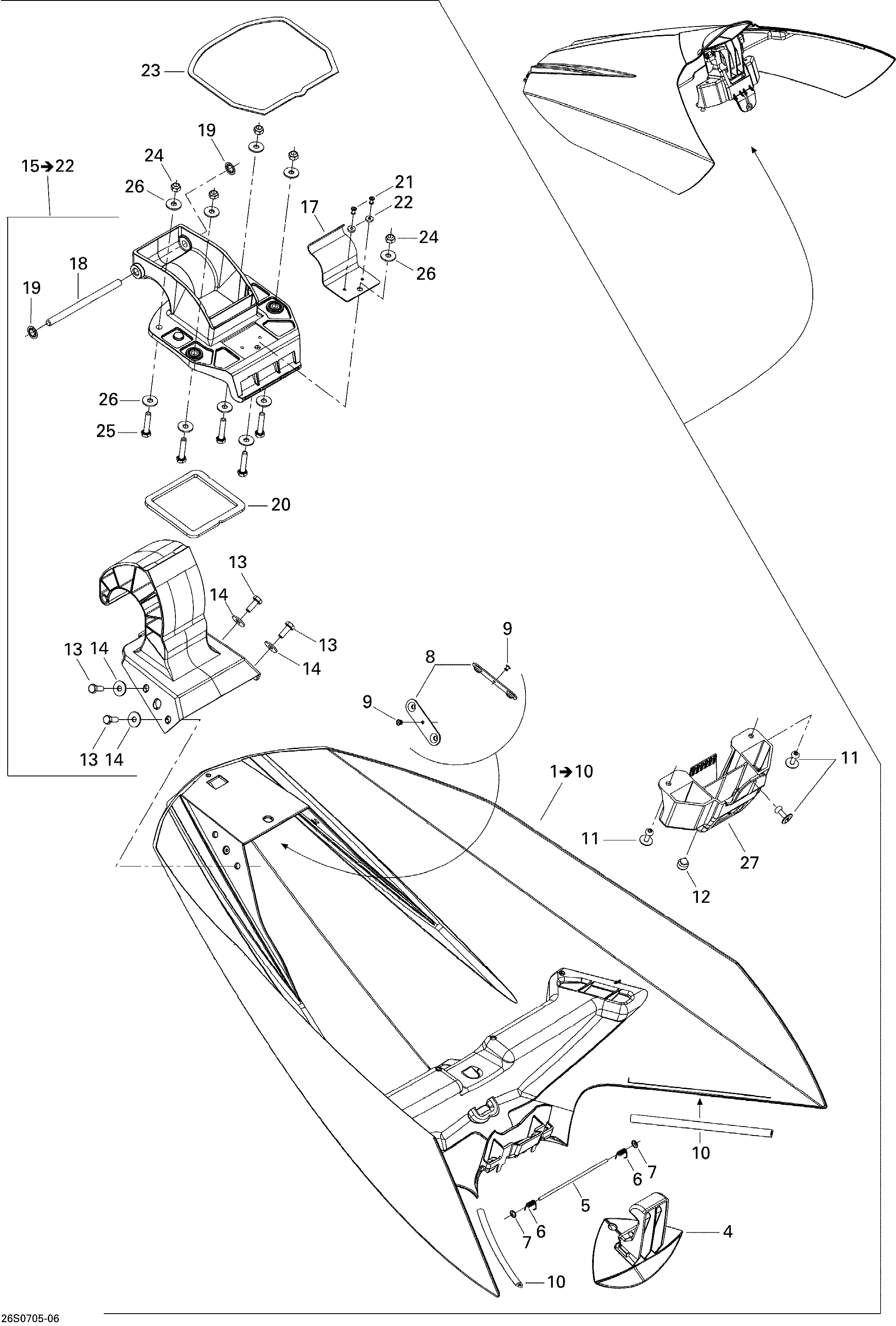

09- Front Cover для BRP GTI 4-TEC SE - 2007
-
№АртикулНазвание
-
1269501626 Storage Cover Ass'y. Includes 1 to 10Storage Cover Ass'y. Includes 1 to 10
-
4269700098 Latch LeverLatch Lever
-
5269501479 PinPin
-
6291000922 Latch SpringLatch Spring
-
7250100061 Push NutPush Nut
-
8277001479 PlatePlate
-
9293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
10293250176 GasketGasket
-
11293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
12293830005 Rubber Plug, BlackRubber Plug, Black
-
13207361660 Hex Screw M6 X 16, Scotch GripHex Screw M6 X 16, Scotch Grip
-
14234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
15269501446 Hinge Ass'y. Includes 15 to 22Hinge Ass'y. Includes 15 to 22
-
17269700099 Hinge SpringHinge Spring
-
18269700024 AxleAxle
-
19250100046 Push NutPush Nut
-
20293250155 Upper GasketUpper Gasket
-
21293150143 Pop Rivet 1/8Pop Rivet 1/8
-
22234032600 Flat WasherFlat Washer
-
23293250166 GasketGasket
-
24232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
25207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27269501480 Latch BaseLatch Base
