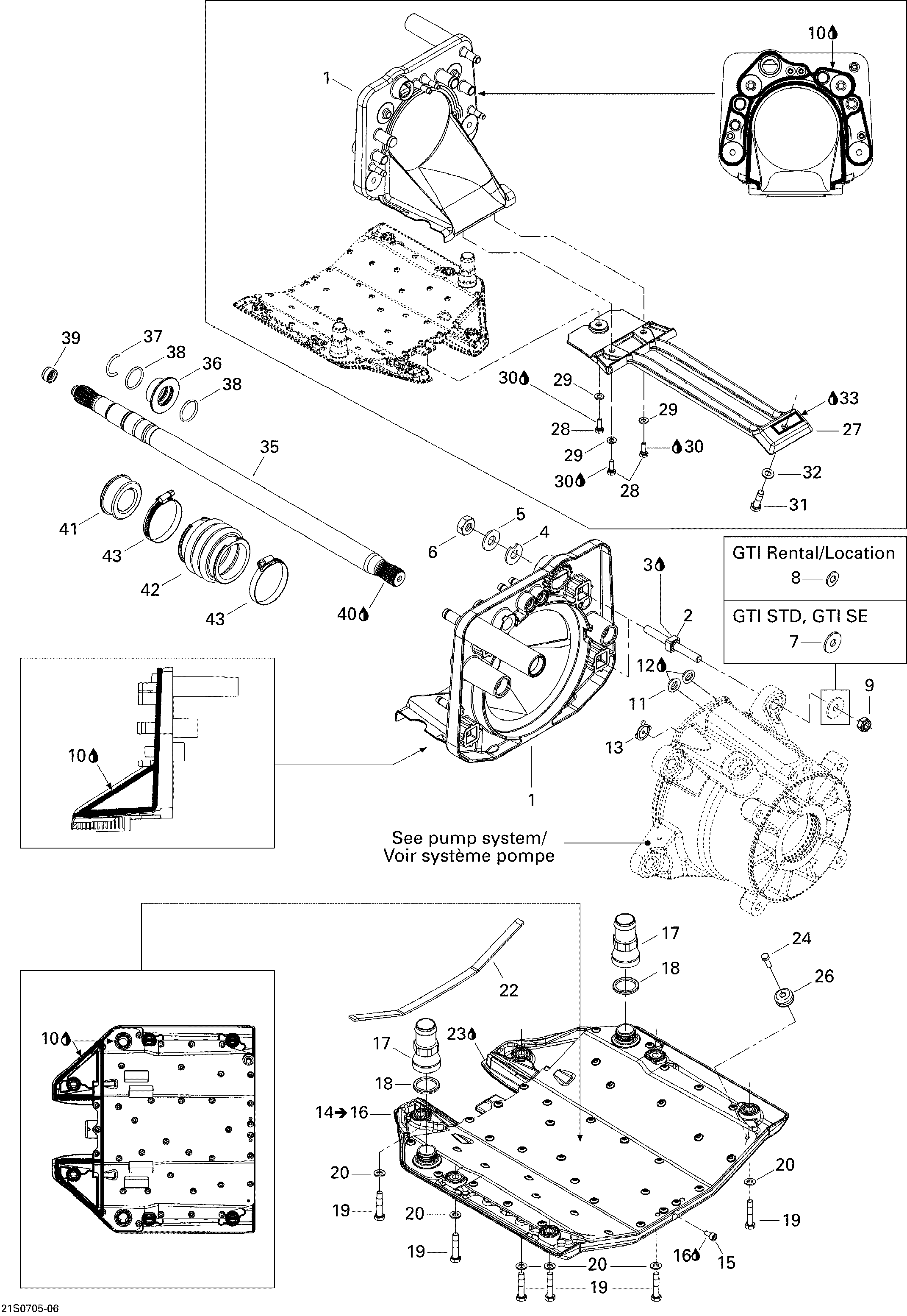

05- Propulsion для BRP GTI 4-TEC STD - 2007
-
№АртикулНазвание
-
1271001545 Pump SupportPump Support
-
2250300022 Square StudSquare Stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 Shim, 0.3 mmShim, 0.3 mm
-
5234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
7234002600 Flat Washer 10 mm, Stainless. STDFlat Washer 10 mm, Stainless. STD
-
9232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
10293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
11293250084 Watertight SealWatertight Seal
-
12293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
13291001887 Reducer, YellowReducer, Yellow
-
14271001557 Riding Plate. Includes 14 to 16Riding Plate. Includes 14 to 16
-
15250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
16293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
17293710111 Straight Plastic FittingStraight Plastic Fitting
-
18293300121 O-ringO-ring
-
19250000230 Hex Screw, Scotch Grip M8 X 40Hex Screw, Scotch Grip M8 X 40
-
20234081600 Flat Washer 8 mmFlat Washer 8 mm
-
22293250087 GasketGasket
-
23293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
24207362060 Hex Screw M6 X 20, Scotch GripHex Screw M6 X 20, Scotch Grip
-
26271001487 Anode ZincAnode Zinc
-
27271001527 Pump Grate, BlackPump Grate, Black
-
28207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
29234061600 Flat Washer M6Flat Washer M6
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
32234081600 Flat Washer 8 mmFlat Washer 8 mm
-
33293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
35271001534 Drive ShaftDrive Shaft
-
36272000176 Support RingSupport Ring
-
37271001575 C ClipC Clip
-
38293300044 O-RingO-Ring
-
39272000173 Drive Shaft PlugDrive Shaft Plug
-
40293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
41272000177 Carbon RingCarbon Ring
-
42272000183 BellowsBellows
-
43293650078 Norma ClampNorma Clamp
