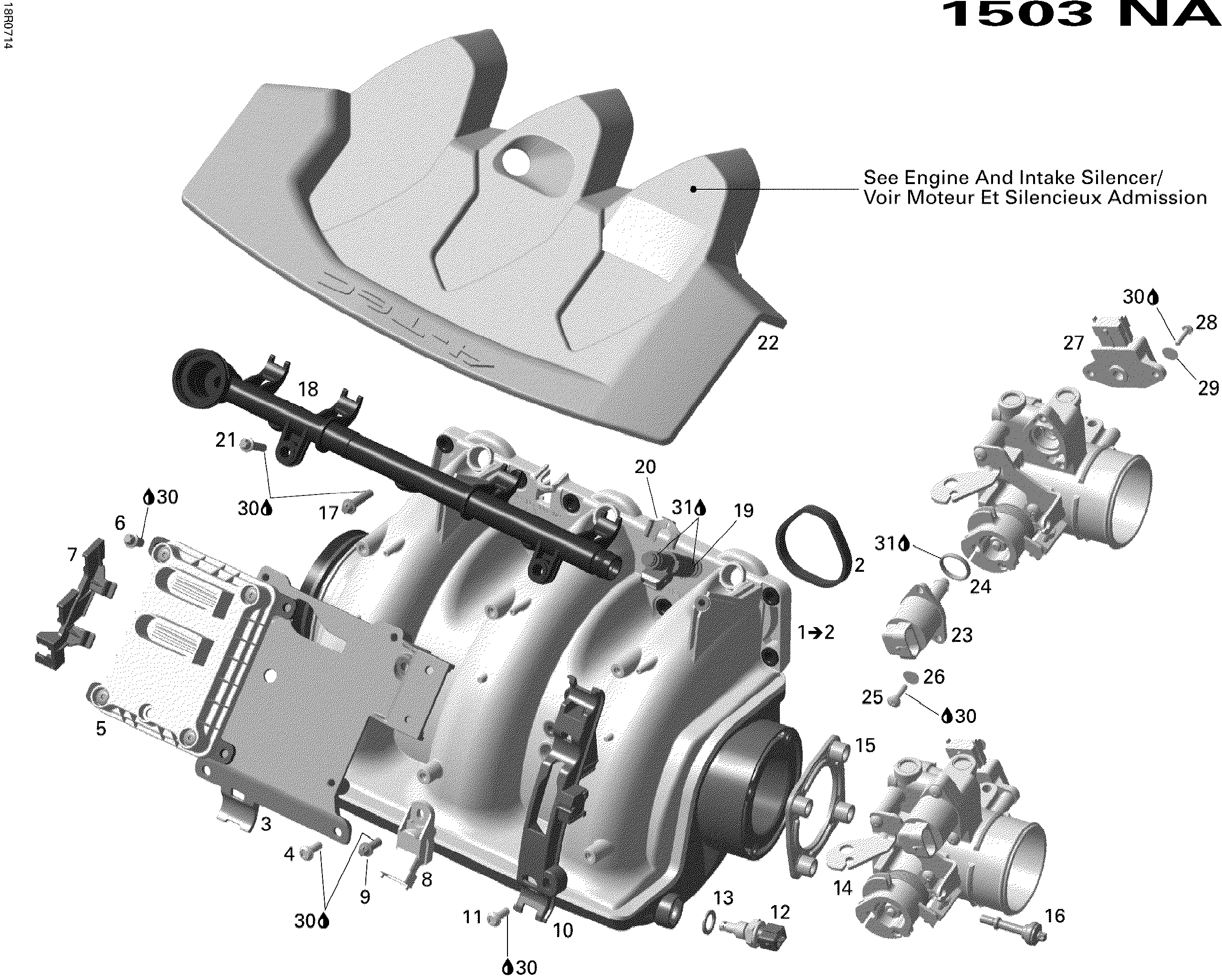

02- Air Intake Manifold Sea-doo для BRP RXP 1503 NA - 2007
-
№АртикулНазвание
-
1420867921 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
5420665781 Electronic BoxElectronic Box
-
6420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
7420660402 Connector BracketConnector Bracket
-
8420274055 Pressure SensorPressure Sensor
-
9420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10420660410 Wiring SupportWiring Support
-
11420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
12420222428 Temperature SensorTemperature Sensor
-
13420250015 Sealing RingSealing Ring
-
14420889027 Throttle BodyThrottle Body
-
15420950792 Rubber GasketRubber Gasket
-
16420440567 Hex Distance Screw M6 X 30.5Hex Distance Screw M6 X 30.5
-
17420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
18420874391 Fuel Rail Ass'yFuel Rail Ass'y
-
19420874430 InjectorInjector
-
20420851531 Injector ClipInjector Clip
-
21420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
23420963050 Idle Bypass ValveIdle Bypass Valve
-
24420631780 O-ringO-ring
-
25420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
26420845710 Snap RingSnap Ring
-
27270000251 Position SensorPosition Sensor
-
28420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
29420845710 Snap RingSnap Ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 LEngine Oil 4 Strokes, 10W40, 12 X 1 L
