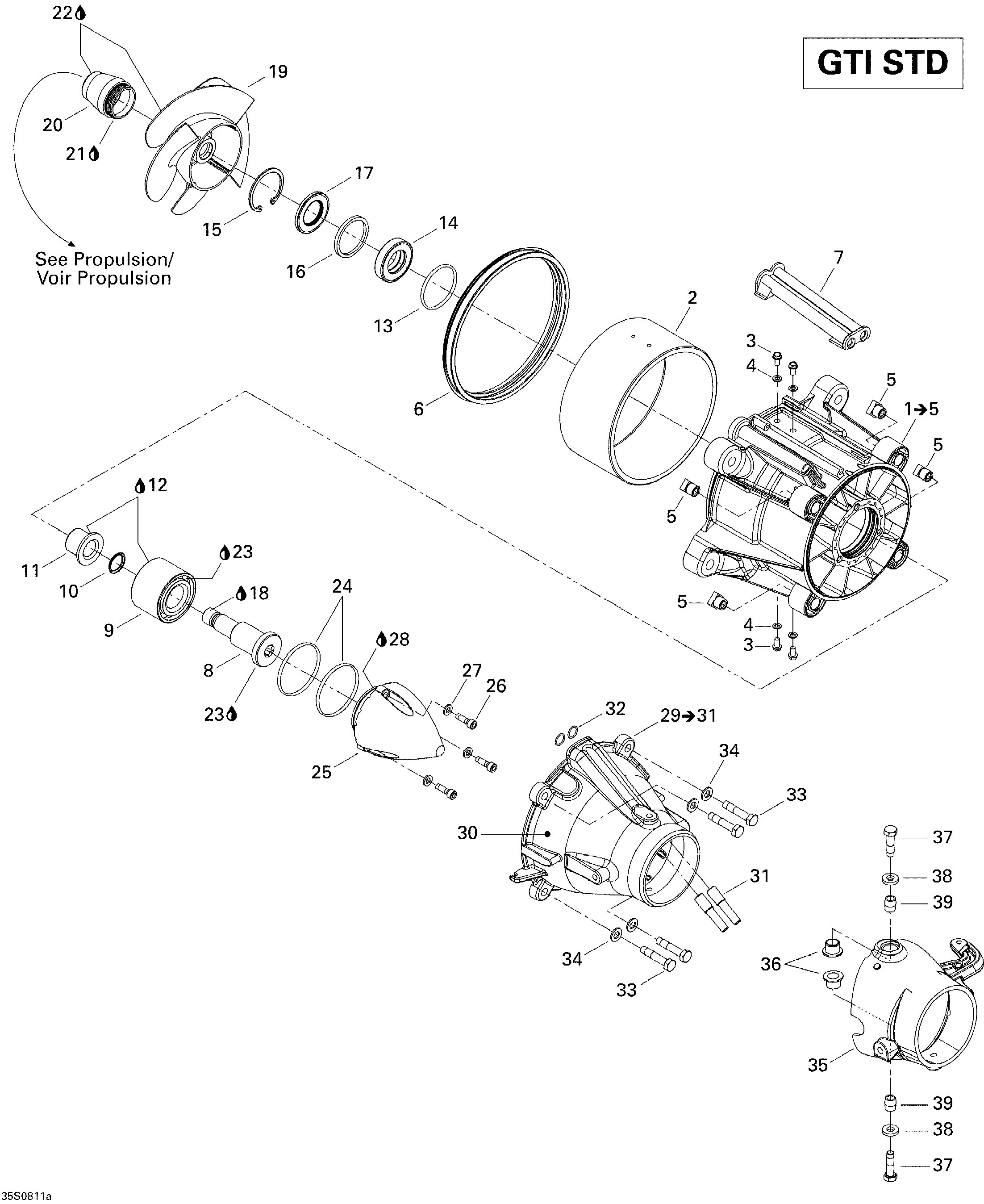

05- Pump STD для BRP GTI 130 - 2008
-
№АртикулНазвание
-
1267000269 Impeller Housing Ass'y. Includes 1 to 5Impeller Housing Ass'y. Includes 1 to 5
-
2267000104 Wear RingWear Ring
-
3250000040 Hex. Plastite Screw #10 X 3/8''Hex. Plastite Screw #10 X 3/8''
-
4234051600 Flat Washer M5Flat Washer M5
-
5211100033 Square Nut M8Square Nut M8
-
6293200087 Neoprene SealNeoprene Seal
-
7271000785 Water OutletWater Outlet
-
8267000054 Impeller ShaftImpeller Shaft
-
9267000030 Angled BearingAngled Bearing
-
10505070315 O-RingO-Ring
-
11267000318 Shaft SleeveShaft Sleeve
-
12293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
13293300090 O-RingO-Ring
-
14293200086 Oil SealOil Seal
-
15293370038 CirclipCirclip
-
16271001393 SpacerSpacer
-
17293200089 Oil SealOil Seal
-
18293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
19267000336 Stainless Steel ImpellerStainless Steel Impeller
-
20267000206 Impeller BootImpeller Boot
-
21293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
22293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
23293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
24293300086 O-RingO-Ring
-
25267000262 Impeller CoverImpeller Cover
-
26205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
27234061600 Flat Washer M6Flat Washer M6
-
28293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
30267000289 VenturiVenturi
-
31271001133 Siphon TubeSiphon Tube
-
32293300013 O-RingO-Ring
-
33207285060 Hex. Screw M8 X 50, Scotch GripHex. Screw M8 X 50, Scotch Grip
-
34234081600 Flat Washer 8 mmFlat Washer 8 mm
-
35267000140 Steering Nozzle, BlackSteering Nozzle, Black
-
36293900001 Venturi BushingVenturi Bushing
-
37207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
38293050001 Flat WasherFlat Washer
-
39271000122 Steering Nozzle SleeveSteering Nozzle Sleeve
